SECTION 8-PLUMBING SYSTEMS JAYCO TOWABLE
4. When the water tank is full, turn off the water source and disconnect the hose
from the Fresh Water Connection inlet. Set the lever to the City Water position.
Water Valve Configuration:
Country Water Fill:
The Country Fill is used to siphon fill the fresh water tank (or to get sanitizer into the fresh
water tank). This is accomplished by using the (4) valves located behind the access panel
in the basement compartment behind the utility center.
1. Remove the cover from the access panel in the basement compartment.
2. Valves are set as follows:
• V1 is ON
• V2 is OFF
• V3 is ON
• V4 is OFF
4. Place the clear hose into a container of fresh potable water. When valves are set
properly, turn the pump ON. Water will be siphoned out of the container and into the
fresh water tank.
5. When tank is full, turn pump OFF. Remove clear hose from the container.
6. Set the valves to the NORMAL position (see Normal Settings below) and replace the
access cover.
Sanitize Tank: (Refer to the Sanitizing the Plumbing section)
1. Remove the cover from the access panel in the basement compartment.
2. Valves are set as follows:
• V1 is ON
• V2 is OFF
• V3 is ON
• V4 is OFF
4. Place the clear hose into a container of chlorine solution. When valves are set
properly, turn the pump ON. Sanitizer will be siphoned out of the container and into
the fresh water tank.
5. When sanitizer has been siphoned into the tank, turn pump OFF.
6. Insert the clear hose into a container of fresh water. Turn pump ON and continue
filling the fresh water tank until it is full.

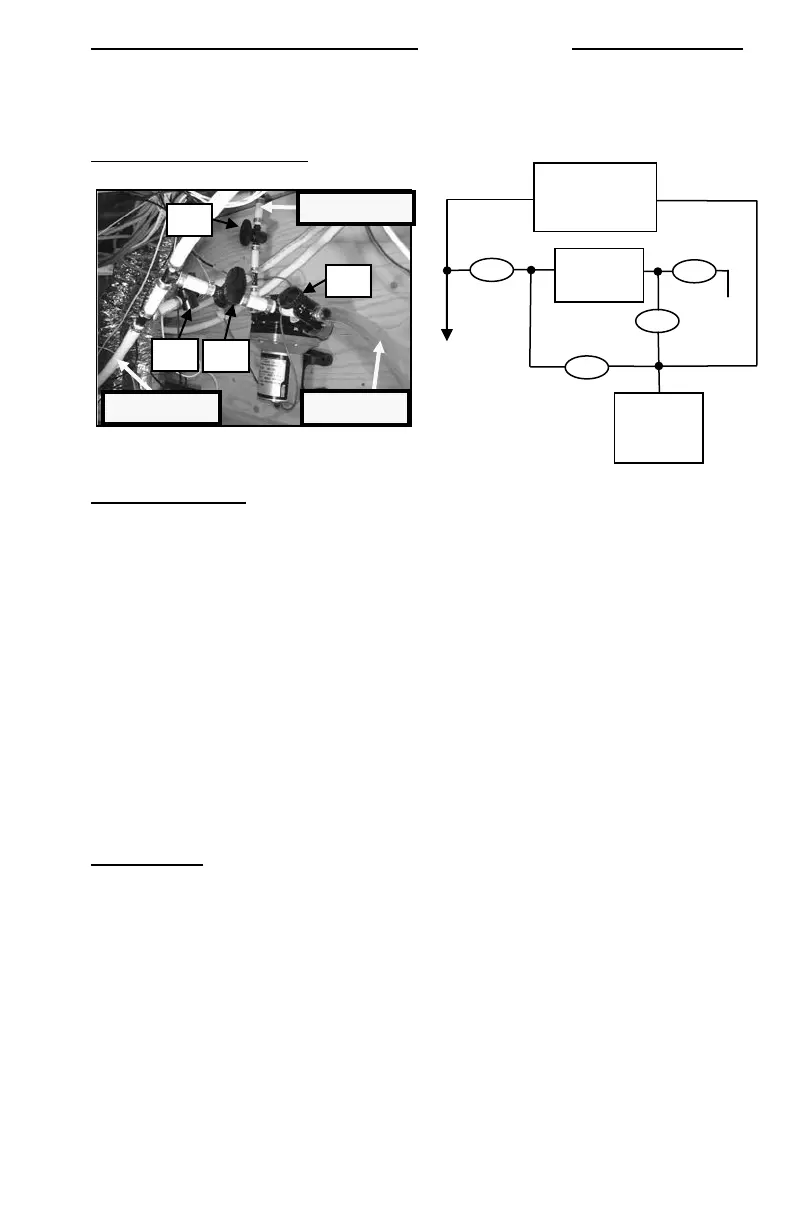

V1
V2
V3
V4
To water lines
To Water Tank
Clear Tubing
Tank Fill
(Horizontal)
City Water
(Vertical)
Water
Lines
Water
Pump
V1
V2
V3
V4
Fresh Water
Connection
Inlet
Fresh
Water
Tank
Clear
Tubing
8-11
