SECTION 7-PROPANE SYSTEMS JAYCO TOWABLE

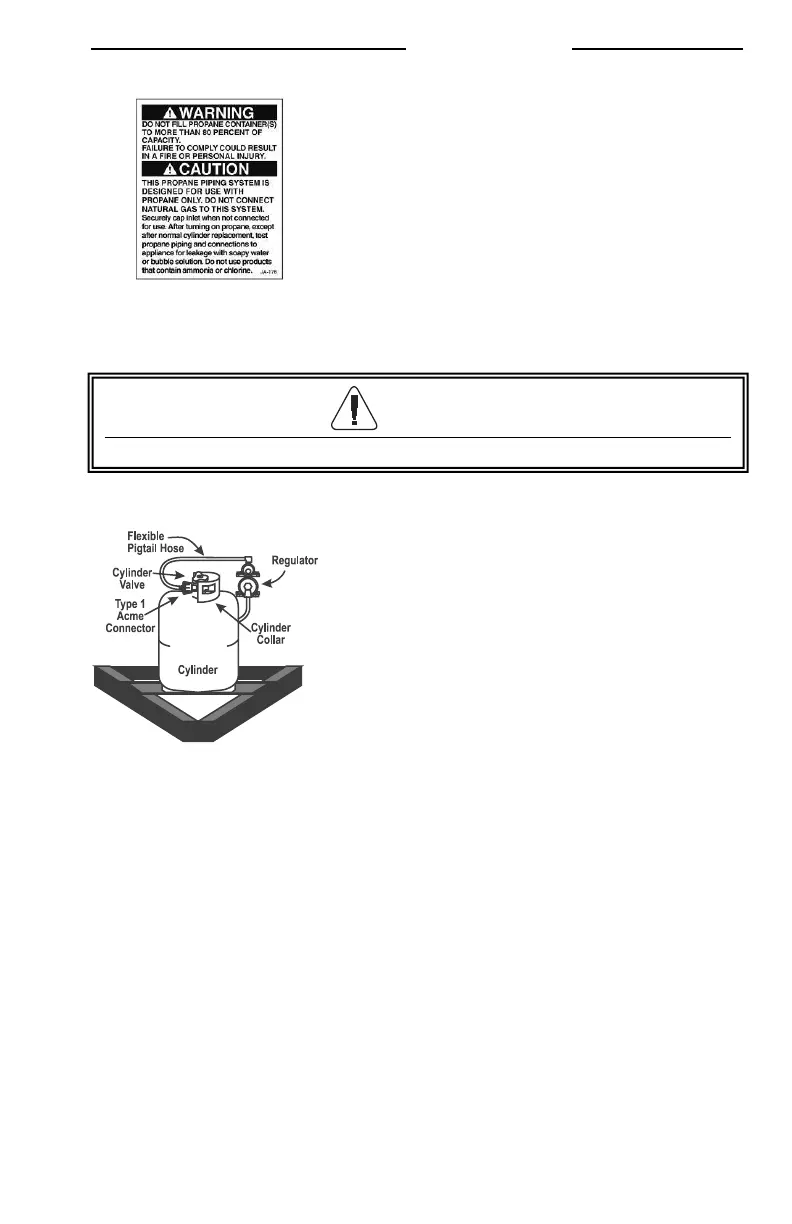

The following label should be kept permanently affixed to your RV.
“Do not fill to more than
80%” label
(Label appearance may not be exact)
Refer to your Warranty Packet for more information on the LP gas system components.
INSTALLING PROPANE CYLINDER(S)
Single Cylinder Mounted On A-Frame (if so equipped)
Single cylinder
1. Connect the 3/8" low pressure hose to the outlet of the two stage regulator.
2. Attach the regulator with the “Z” bracket on the center of the front wall with the vent
pointing down.
3. Attach the protective plastic cover to the regulator.
4. The regulator has a 90° elbow that directs the inlet toward the trailer curbside.
5. Place the cylinder on the bracket provided on the A-frame and position it so the outlet
of the cylinder valve is pointed directly outward to the curbside wall.
6. If a vinyl cylinder cover is provided, slip it over the cylinder and leave the zipper
open (if so equipped).
7. Attach the 1/4" inverted flare x 24" Type 1 pigtail hose to the regulator inlet and the
right hand swivel nut to the cylinder valve.
8. If applicable, close the cylinder cover zipper (if so equipped) up to the hose.
9. Secure the cylinder to the A-frame bracket using the bolts, nuts and washers provided.
WARNING
Ensure that all fasteners are secured before traveling.
7-5
