JAYCO TOWABLE SECTION 10-APPLIANCES
WATER HEATER – SEE PLUMBING SECTION
OUTSIDE KITCHEN (IF SO EQUIPPED)
Pull out kitchen style (if so equipped)
This outside kitchen unit consists of a 2-burner cooktop, refrigerator and sink. Refer to the
manufacturer’s user guide for detailed cooktop and refrigerator operation instructions.
To access the kitchen unit, open the exterior door by lifting upwards until the door struts
are fully extended. The struts will hold the door in the open position. Slowly pull the
cooktop base towards you until the drawer guide stops are reached. Attach the cooktop to
the propane connection (see quick coupler connection).
To return the kitchen unit to the stowed or travel position, disconnect the propane
connection and slowly push the kitchen unit back to the retracted position. Close and
secure the exterior door.
Drop down kitchen style (if so equipped)
The drop down kitchen unit consists of a cooktop, faucet and sink. Refer to the cooktop
manufacturer’s user guide for detailed operating instructions.
To access the kitchen unit, slowly open the exterior door from the top until it rests on the
side support cables. Attach the cooktop to the propane connection (see quick coupler
connection).
To return the kitchen to the stowed or travel position, disconnect the propane connection
and return the exterior door to the closed position. Make sure the door is locked and
secure for transit.
Attaching the “quick coupler” connection
The “quick coupler” is directly connected to the RV propane system. The “quick-coupler”
connection has a positive shut-off valve as required by code and standards.
1. Place the “quick coupler handle in the OFF position and push back the sleeve. The
valve handle must be OFF to make the connection.
2. Insert the plug and release the sleeve.
3. Push the plug until the sleeve snaps forward, locking the plug into the socket.
4. Turn the handle ON to allow propane to flow to the drop in stove.

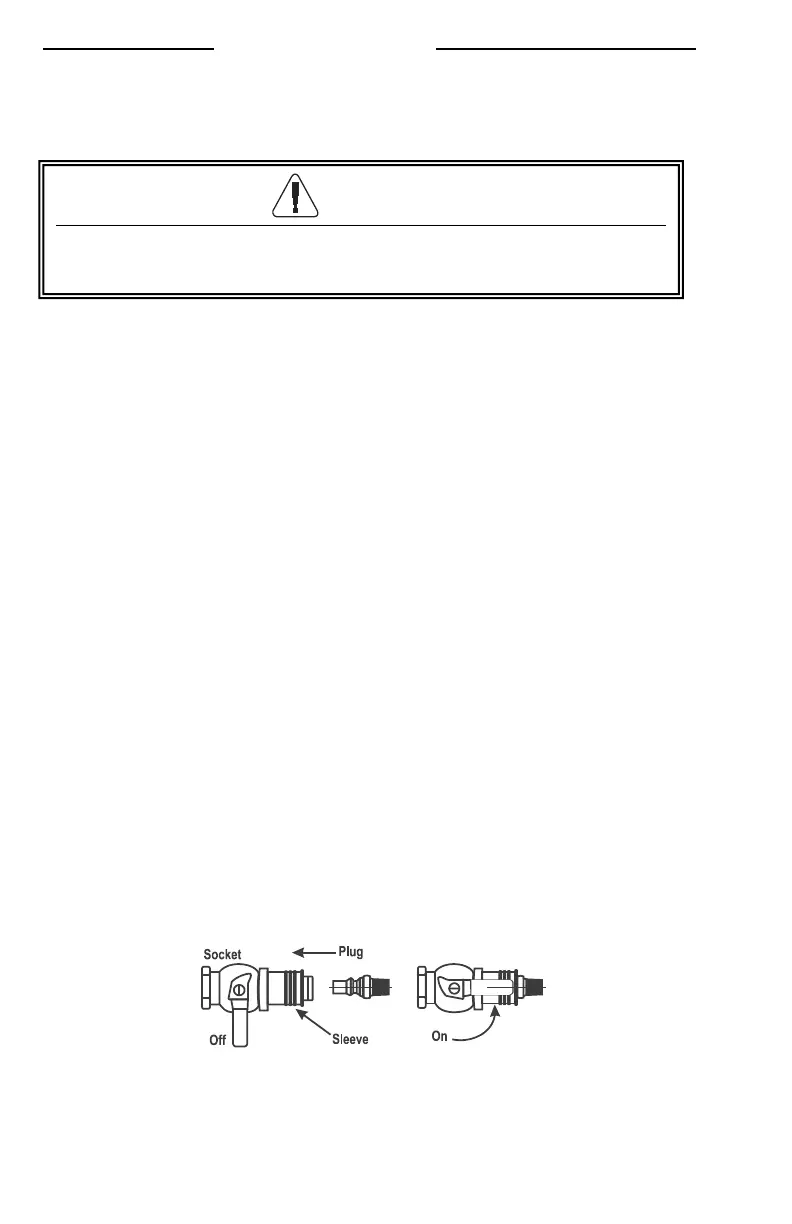

Quick connect coupler
WARNING
The maximum weight capacity of the outside kitchen unit is 50 lbs. Setting items
on the kitchen unit that exceed this weight limit could cause damage to the unit or
result in personal injury
10-6
