JBL CBT1000 - CBT1000+1000 E Up-Tilt with Swivel

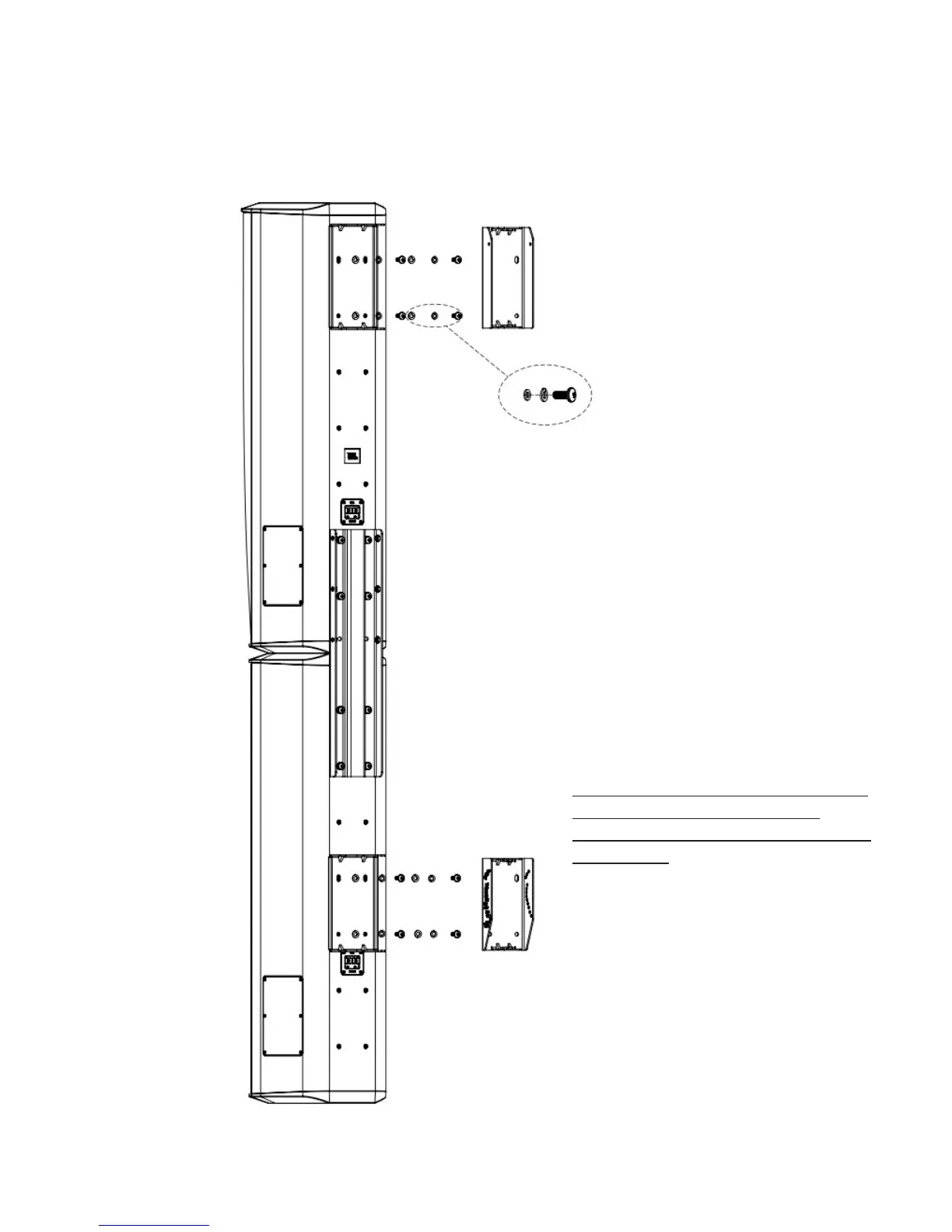

Option 4d) CBT1000+1000E System with Up-Tilt Capability and Horizontal Swivel/Pan
8 PLACES:
M8 x 20 mm
PAN HEAD
BOLT
M8 SPLIT
LOCK WASHER
M8
FLAT WASHER
SWIVEL BRACKET attaches to speaker
via M8 x 20 mm PAN HEAD BOLTS (with
lock washers and atwashers).
SPEAKER BRACKET attaches to
SWIVEL BRACKET via M6 x 20 SOCKET
HEAD BOLTS inserted from the top and
bottom of the SWIVEL BRACKET, with
RUBBER WASHERS between the two
brackets.
See pages 6 and 7 for detailed drawings
of SPEAKER BRACKET / SWIVEL
BRACKET connection (as shown on CBT
1000 alone).
Up-tilt range 0° to +5.25°.
Horizontal ±45° Swivel (Pan)
14
