JBL CBT1000 - Speaker Mounting and Adjustment; Sliding Speaker onto Wall Bracket

To Next Page

To Previous Page

The following instructions apply to both the CBT1000 by itself and

to the CBT 1000+1000E System.

(For simplicity, drawings are shown with CBT1000 only.)

5) SLIDE SPEAKER WITH SPEAKER BRACKET ONTO WALL BRACKET

Make sure the PIVOT BOLT is installed in-place in the SPEAKER BRACKET. The PIVOT BOLT

ASSEMBLY consists of the M6 x 125 mm bolt with lock washer and at washer on the head and secured

in place with at washer, lock washer and M6 cap nut. IMPORTANT: Leave the nut loose (do not tighten).

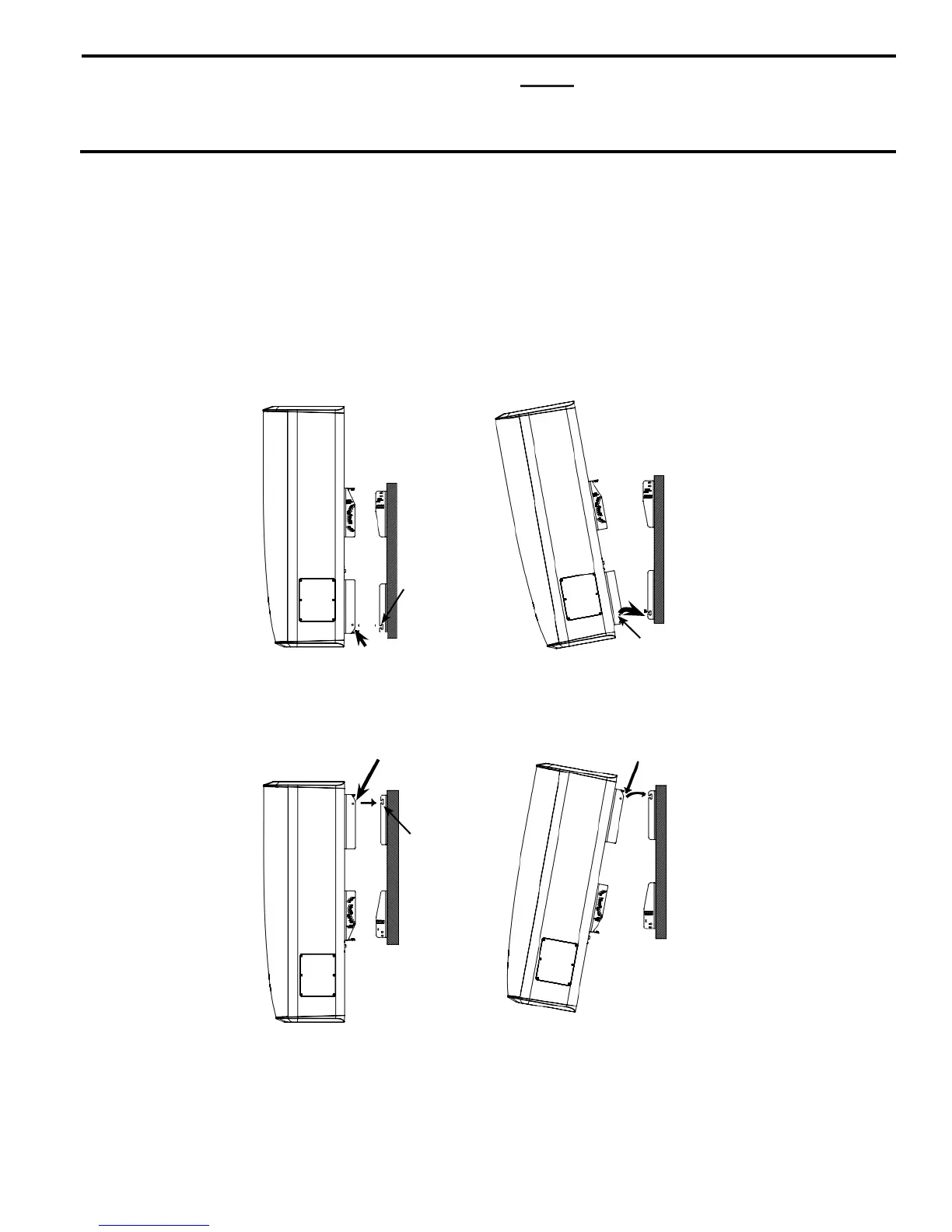

Slide the speaker forward so that the SPEAKER BRACKET engages into the WALL

BRACKET, dropping the PIVOT BOLT ASSEMBLY into the hook slot of the WALL BRACKET.

For Down-Tilt or 0° Tilt

Install PIVOT BOLT before dropping

speaker into WALL BRACKET

Bolt Installed

Drop PIVOT BOLT into

hook slot of WALL BRACKET

For Down-Tilt or 0°
