Instructions for CBT 1000 Alone (without 1000E):
The BRACKET ASSEMBLY consists of 2 pieces of SPEAKER BRACKETS (the parts that mount on the
speaker), 2 pieces of WALL BRACKETS (the parts that mount on the wall), 2 pcs of SWIVEL BRACKETS
(which get added to the SPEAKER BRACKETS if utilized for horizontal swivel/pan aiming capability), and an
ARM LINK (which is utilized for the larger tilt angles).
1) RUN WIRING -- Run the wiring from the power amplier to the location desired for mounting the JBL
CBT Loudspeakers. Note: Connect wire to speaker terminals at a point in the installation process when
convenient for your installation circumstances.
2) ATTACHING WALL BRACKET TO WALL -- Using a level to ensure that the WALL BRACKET is straight,
secure the WALL BRACKET to the wall. Be sure to use the appropriate wall anchors for attaching the
bracket. Use as many of the screw holes as possible for maximum integrity and safety.
CAUTION: Installation must be done by
qualied persons using safe rigging standards.
The installer is responsible for proper selection and use of
mounting hardware to properly and safely wall-mount the
speakers.
Hardware attaching WALL BRACKET to wall is not included.
Utilize proper hardware for particular wall structure.
Spacing needed between upper and lower
WALL BRACKET parts with CBT1000 depends on
whether speaker will be set with down-tilt or up-tilt.
Spacing:
181 mm (7-1/8”) for Down-Tilt
197 mm (7-3/4”) for Up-Tilt
3

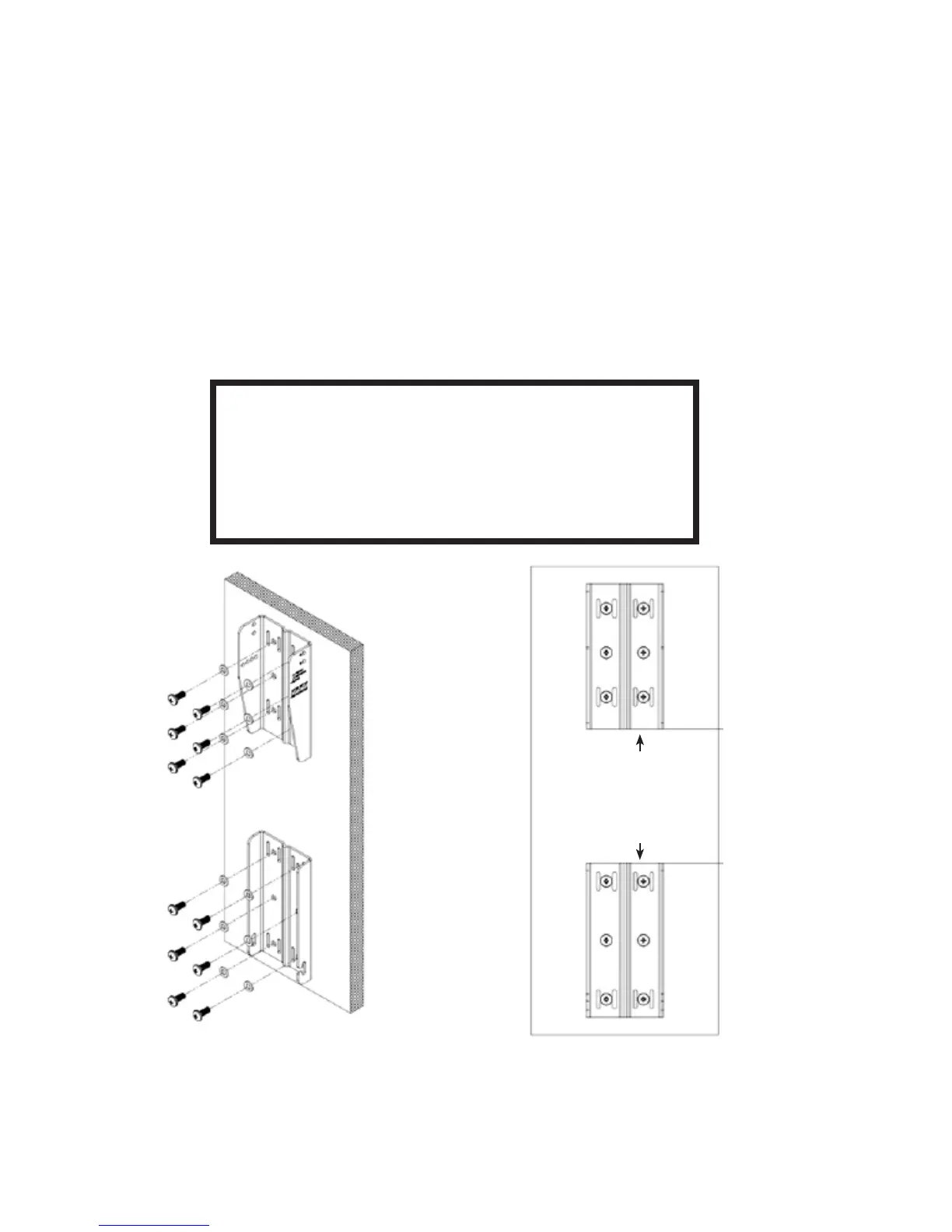

(Drawings show upper
and lower bracket
orientation as set for
down-tilt or 0°. Wall
brackets to be reversed
in location and ipped for
up-tilt applications (see
further instructions).
