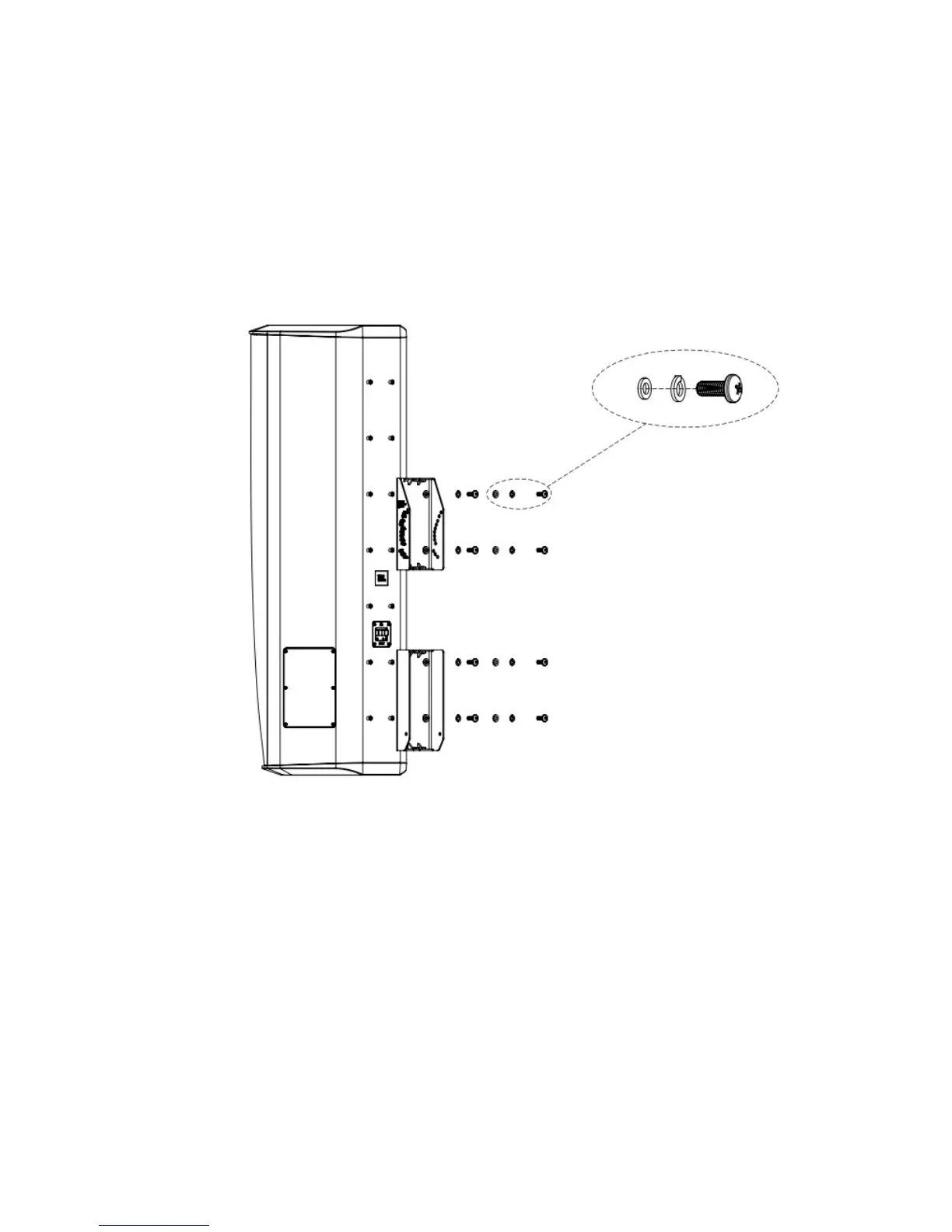

3) ATTACH SPEAKER SIDE OF BRACKET TO SPEAKER
Mount the SPEAKER BRACKET (2 pcs) to the speaker with the provided M8 x20 mm pan-head bolts, in
the locations shown and in the orientation shown in the diagram below.
Option 3a) CBT 1000 with No Swivel (for Down-Tilt Capability [or 0° tilt] and No Horizontal Swivel/Pan).
M8
FLAT WASHER
M8 SPLIT
LOCK WASHER
M8 x 20 mm
PAN HEAD
BOLT
8 PLACES:
Down-tilt range 0° to -15°
4
