JBL CBT1000 - Speaker Bracket Top;Bottom Sections

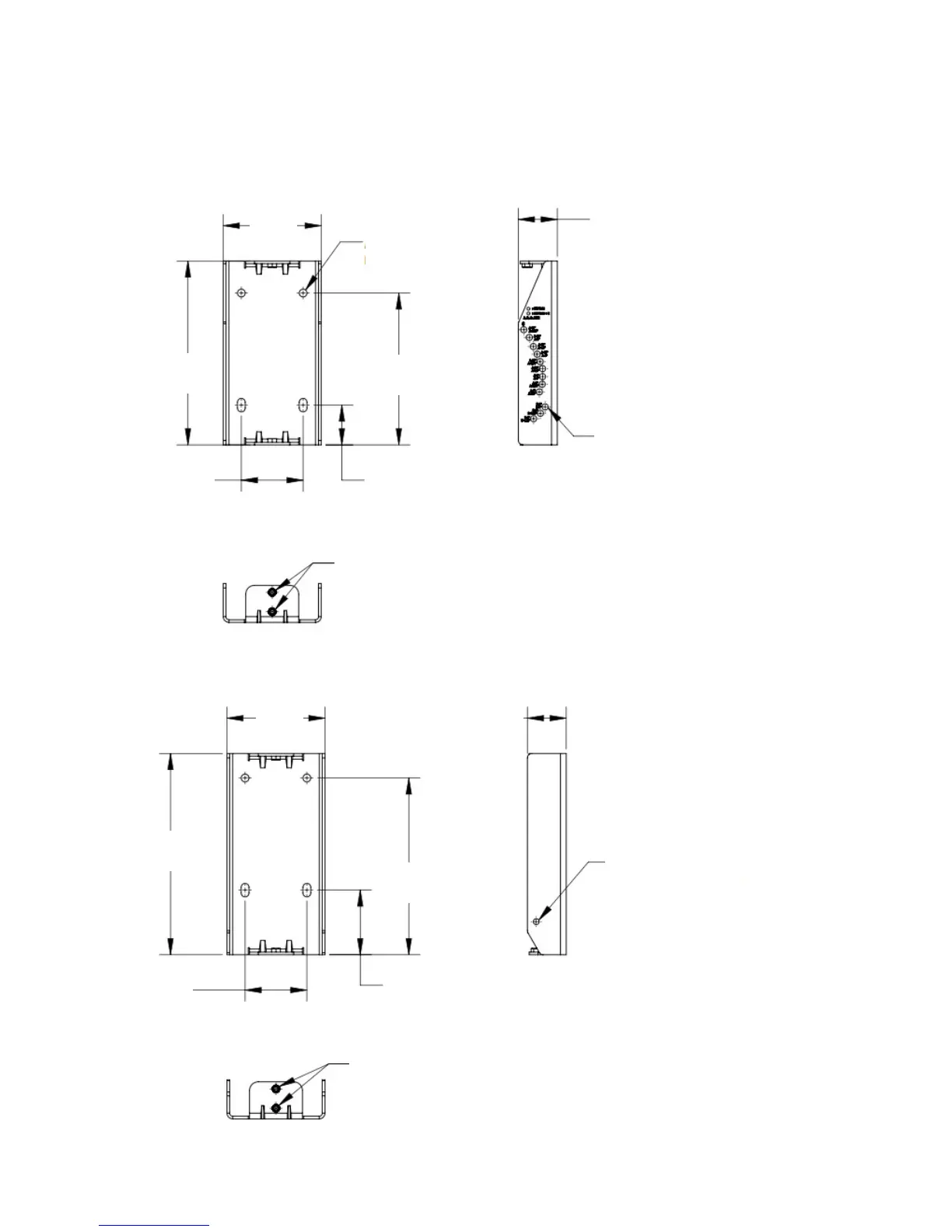

SPEAKER BRACKET TOP/BOTTOM SECTIONS
Dims in mm [in]
111
[4.4]
208
[8.2]
172
[6.8]
45
[1.8]
70
[2.8]
44
[1.7]
M8 Bolt Clearance
Holes
M6 Bolt Clearance Holes
4 x M6 Threaded Inserts
111
[4.4]
228
[9.0]
70
[2.8]
73
[2.9]
200
[7.9]
44
[1.7]
M6 Bolt Clearance Hole
4 x M6 Threaded Inserts
