JBL CBT1000 - Tilt Angle Settings Diagram

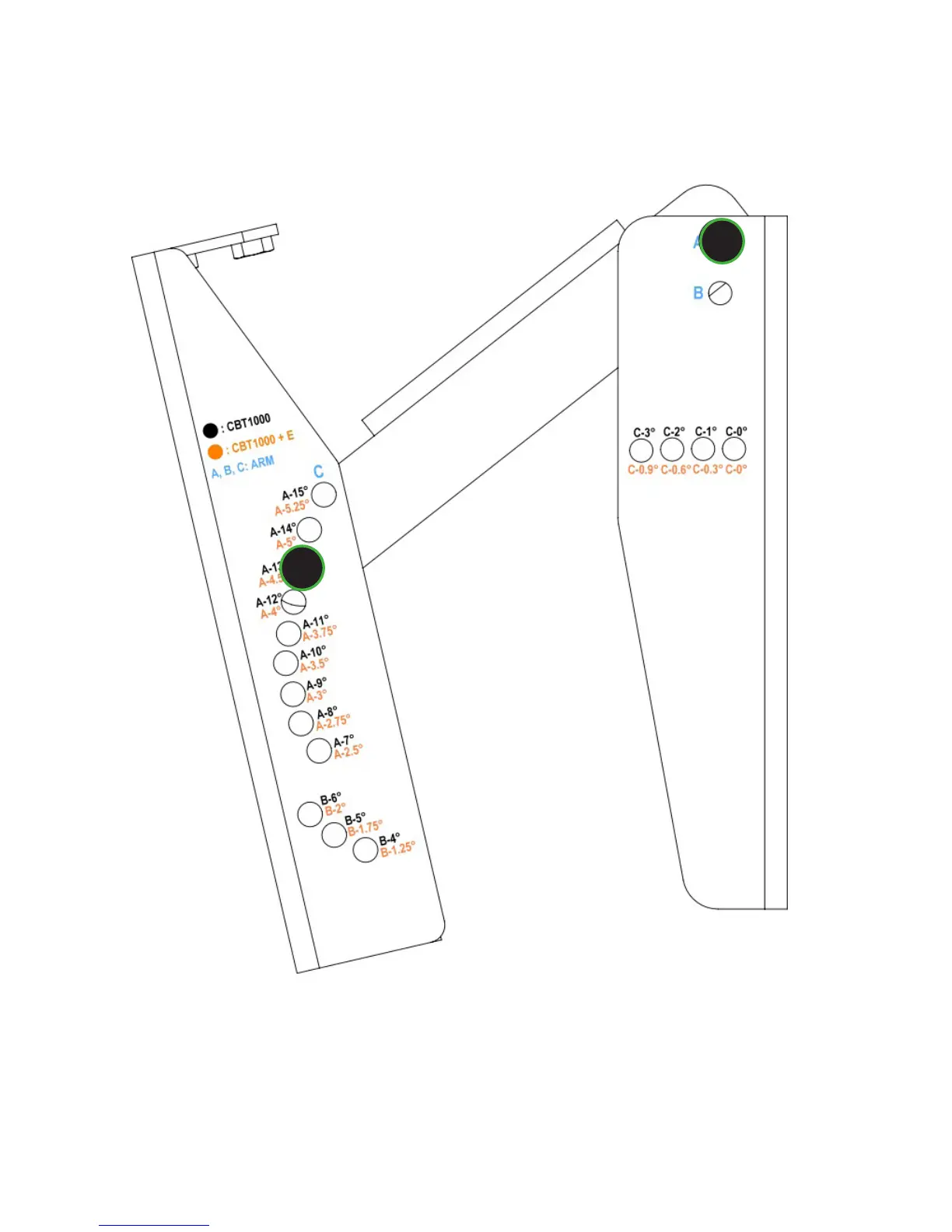

Tilt Angle Settings Diagram
Shown set in the 13° tilt setting for CBT1000, or 4.5°
tilt setting for CBT 1000 + 1000E System
(Marked A-13° in black and A-4.5° in orange, so other
end of LINK ARM is at Point “A”)
ARM LINK Not Utilized
ARM LINK Utilized
+
+
