JBL CBT1000 - Page 19

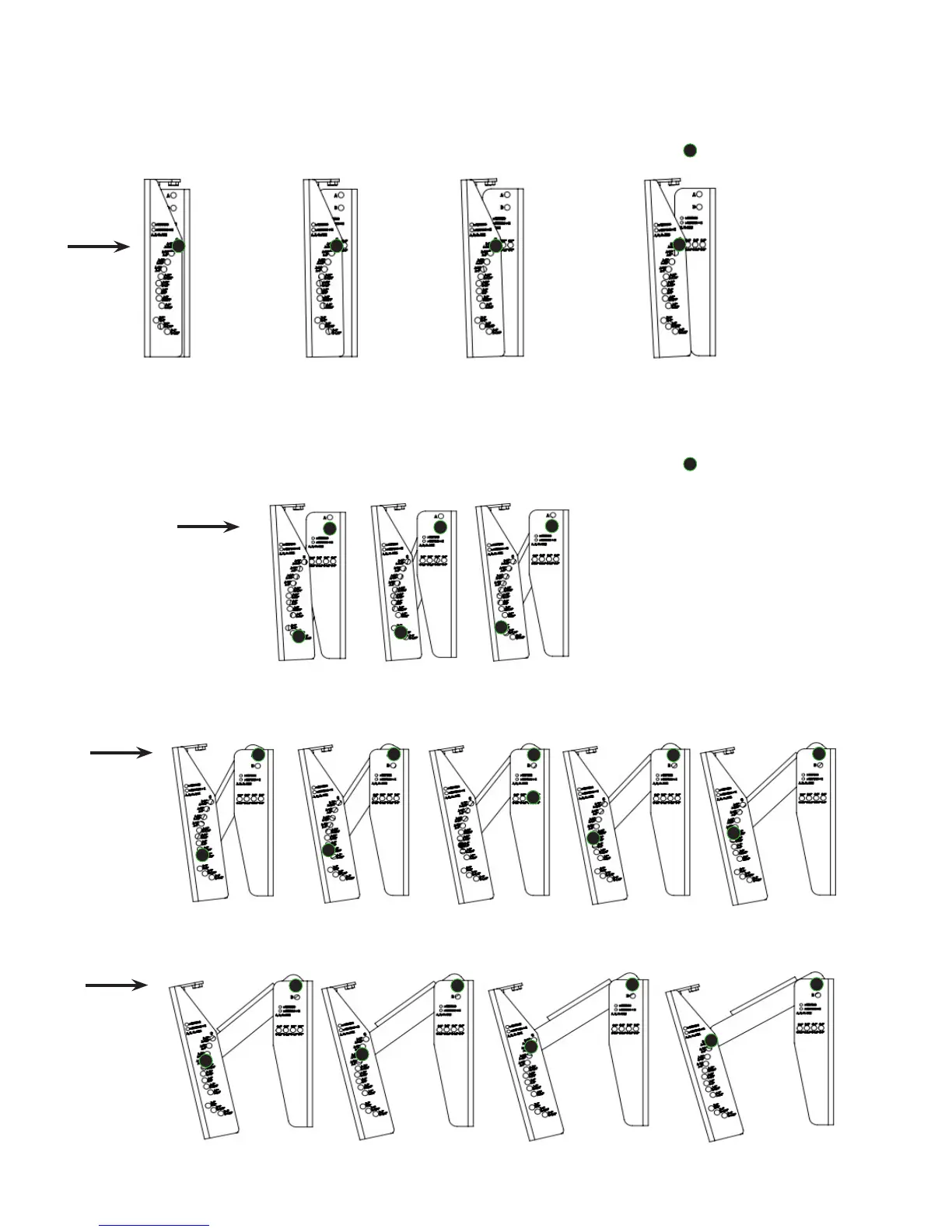

CBT 1000: 0°
System: 0°
CBT 1000: 1°
System: 0.3°
CBT 1000: 2°
System: 0.6°
CBT 1000: 3°
System: 0.9°
See full size Tilt Angle Settings Diagram on previous
page for detail of markings and settings
ARM LINK Not Utilized
ARM LINK Utilized
“System” = CBT 1000 + 1000E
“System” = CBT 1000 + 1000E
CBT 1000: 4°
System: 1.25°
CBT 1000: 5°
System: 1.75°
CBT 1000: 6°
System: 2.0°
CBT 1000: 7°
System: 2.5°
CBT 1000: 8°
System: 2.75°
CBT 1000: 9°
System: 3.0°
CBT 1000: 10°
System: 3.5°
CBT 1000: 11°
System: 3.75°
CBT 1000: 12°
System: 4.0°
CBT 1000: 13°
System: 4.5°
CBT 1000: 14°
System: 5.0°
CBT 1000: 15°
System: 5.25°
+
+
+
+
+
+
+
+
+
+
++
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
Use
Point “C”
Use
Point “B”
Use
Point “A”
Use
Point “A”
+
19
+
= Bolt Setting Location(s)
+
= Bolt Setting Location(s)
