3) ATTACHING COUPLER PLATE -- Connect the CBT 1000 and CBT 1000E together by attaching
COUPLER PLATE to bottom four (4) insert points of the CBT 1000 and to top four (4) insert points of
CBT 1000E using 8 pcs M8 x 20 PAN-HEAD PHILLIPS BOLTS with LOCK WASHERS and FLAT
WASHERS. Tighten.
IMPORTANT: WHEN THE CBT 1000E IS LOCATED ON THE TOP VERSUS ON THE BOTTOM

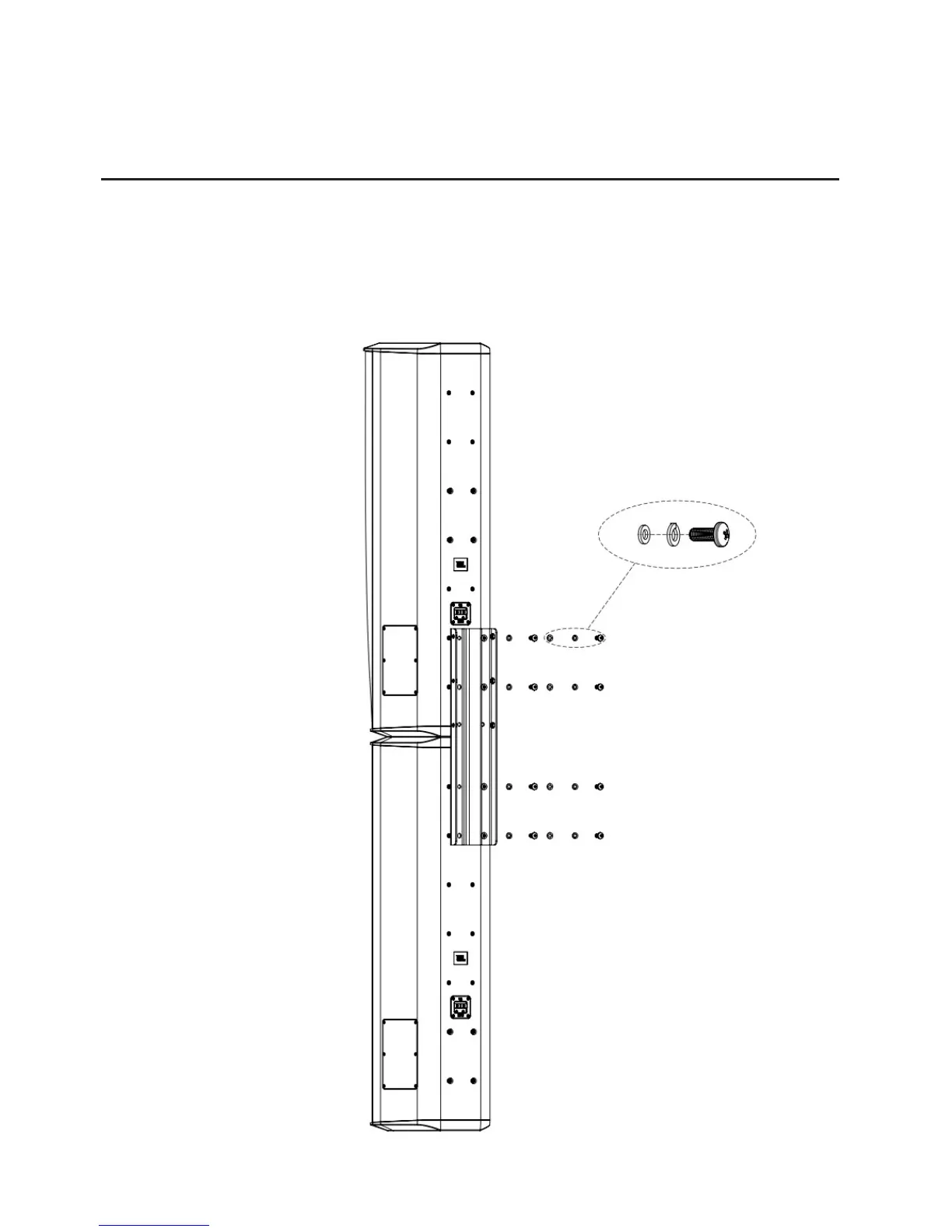

The diagram below shows the COUPLER PLATE attachment method for when the CBT 1000 is on
the top and the CBT 1000E on the bottom. For utilizing with the CBT 1000E on top and the CBT
1000 on the bottom, the depth of the cabinets are different at the junction between them, so it is
necessary to use the optional MTC-CBT-OS3 Offset Bracket (which is part of the CBT1K-ACC1
kit). See Appendix A for attaching together in this orientation utilizing the MTC-CBT-OS3 bracket.
M8 x 20 mm
PAN HEAD
BOLT
M8 SPLIT
LOCK WASHER
M8
FLAT WASHER
8 PLACES:
Hint: One strategy for orienting speakers for
attaching the COUPLER PLATE is to place
both speakers on a non-scratching oor
surface on their sides.
10
