JBL CBT1000 - Setting Horizontal Swivel (Pan) Aiming

7) SETTING HORIZONTAL SWIVEL (PAN) AIMING – With the 8 M6 x 20 mm SOCKET HEAD
swivel screws loose (4 on top bracket and 4 on bottom bracket), set the horizontal swivel (pan)
aiming angle. Tighten all 8 swivel screws.

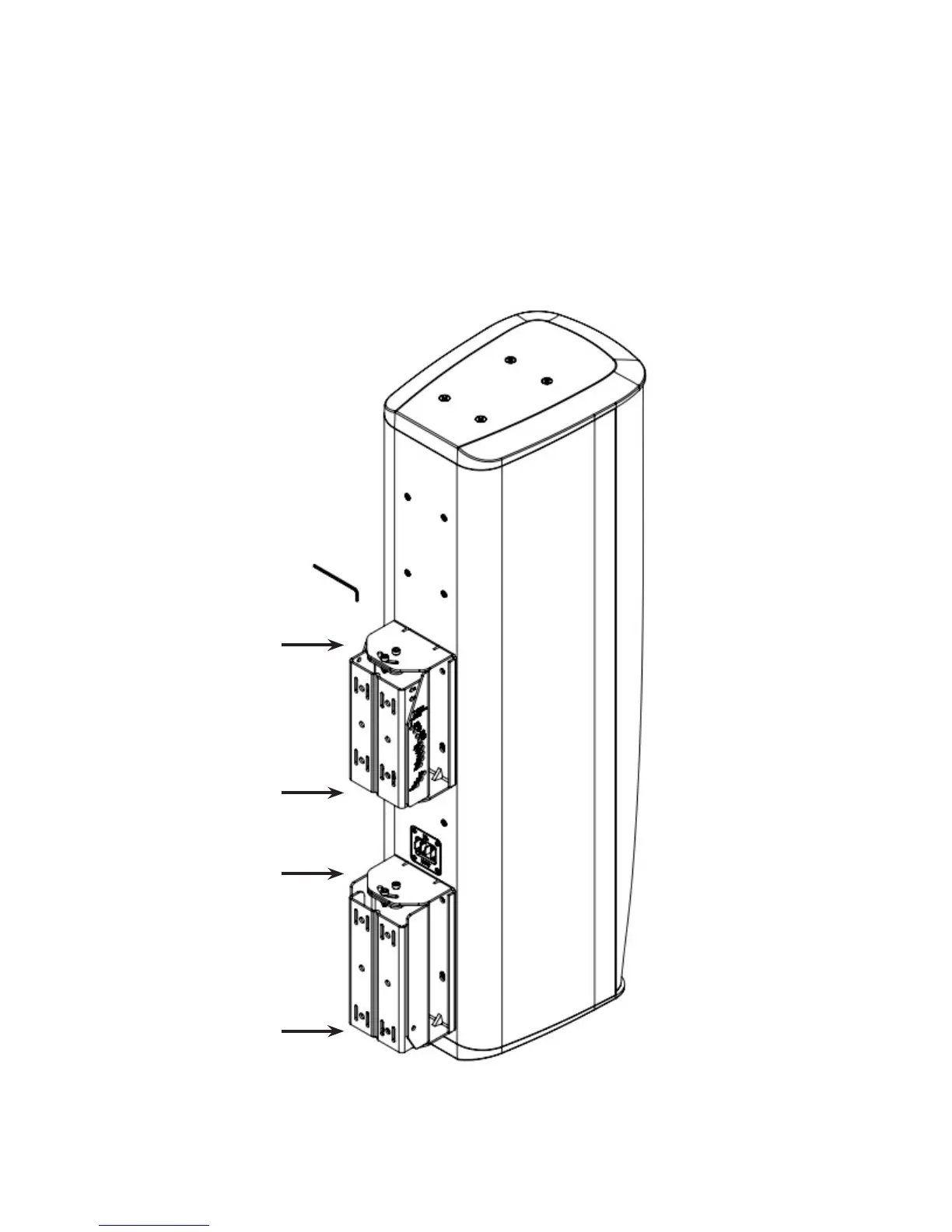

Once all components have been
installed, use HEX WRENCH to
loosen SWIVEL BRACKET and
the speaker will be able to pan to
+45°.
2 M6 x 20 mm SOCKET BOLTS
2 M6 x 20 mm SOCKET BOLTS
2 M6 x 20 mm SOCKET BOLTS
2 M6 x 20 mm SOCKET BOLTS
BRACKET PARTS DIMENSIONAL DIAGRAMS
WALL BRACKET TOP/BOTTOM SECTIONS
20
