JBL CBT1000 - Hardware; Tools Required

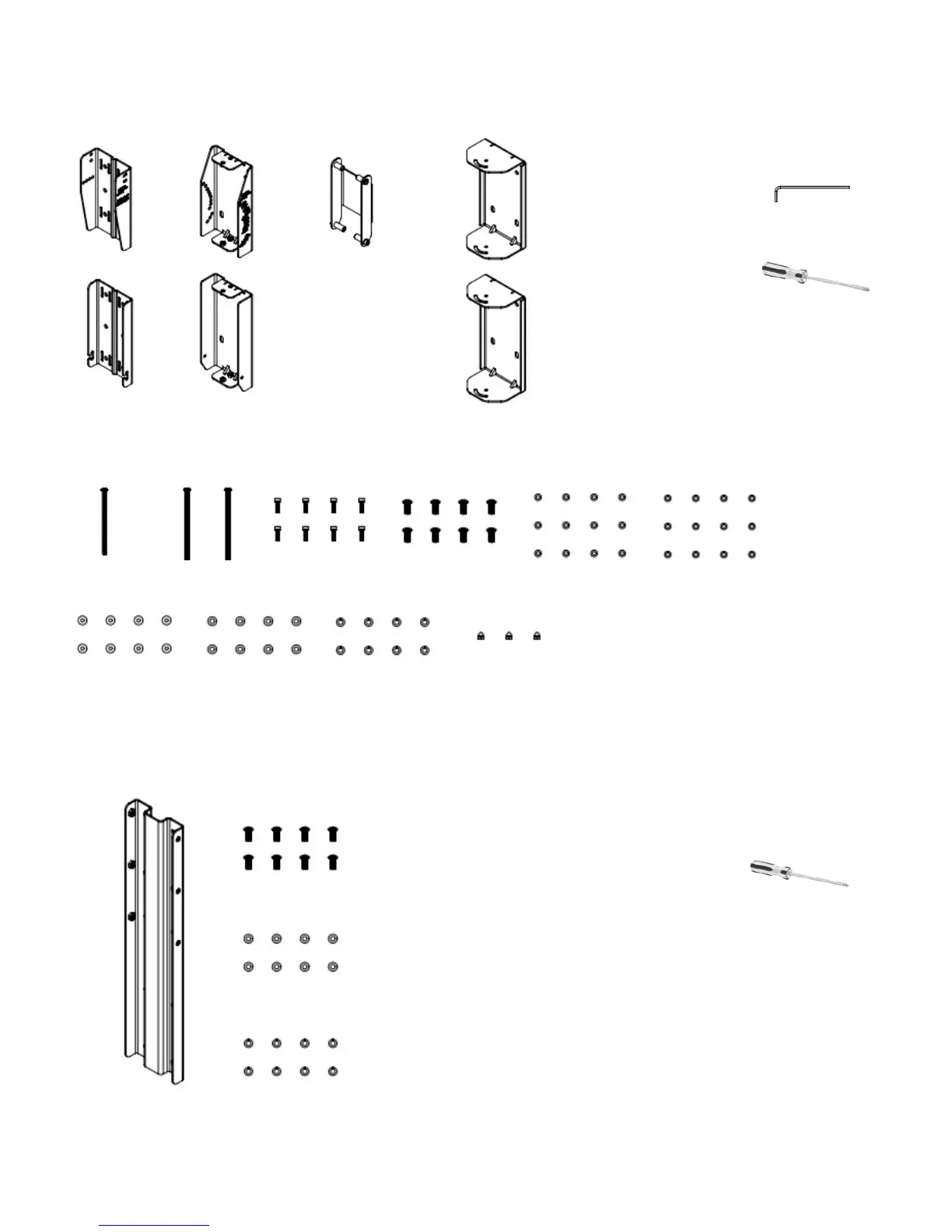

Hardware Included with CBT1000:
Tools Required:
M6 Hex Wrench
#2 Phillips Head Screwdriver
Note: When setting system for UP tilting, the UPPER and LOWER
parts get reversed on the cabinet -- see instructions.
M6 x 115 mm
PAN HEADS
WALL
BRACKETS
SPEAKER
BRACKETS
ARM
LINK
SWIVEL
BRACKETS
←
M6 x 125 mm
PAN HEADS
M6 x 20 mm
SOCKET HEADS
M8 x 20 mm
PAN HEADS
M6
FLAT WASHERS
M6 SPLIT
LOCK WASHERS
M6 RUBBER
WASHERS
M8
FLAT WASHERS
M8 SPLIT
LOCK WASHERS
M6
CAP NUTS
4 Bracket Parts for UPPER
Mounting Position on
Cabinet (when set for 0° or
for down-tilting)
3 Bracket Parts for LOWER
Mounting Position on
Cabinet (when set for 0° or
for down-tilting)
←
Hardware Included with CBT1000E:
Tools Required:
#2 Phillips Head Screwdriver
M8 x 20 mm PAN HEADS
M8 FLAT WASHERS
M8 SPLIT LOCK WASHERS
2
