JBL CBT1000 - Setting Shallow Tilt Angles

6) SET THE TILT ANGLE
6a) For Setting Shallow Tilt Angles (0° to -3° for CBT1000; 0° to -0.9° for CBT1000+1000E System),
do NOT use ARM LINK.

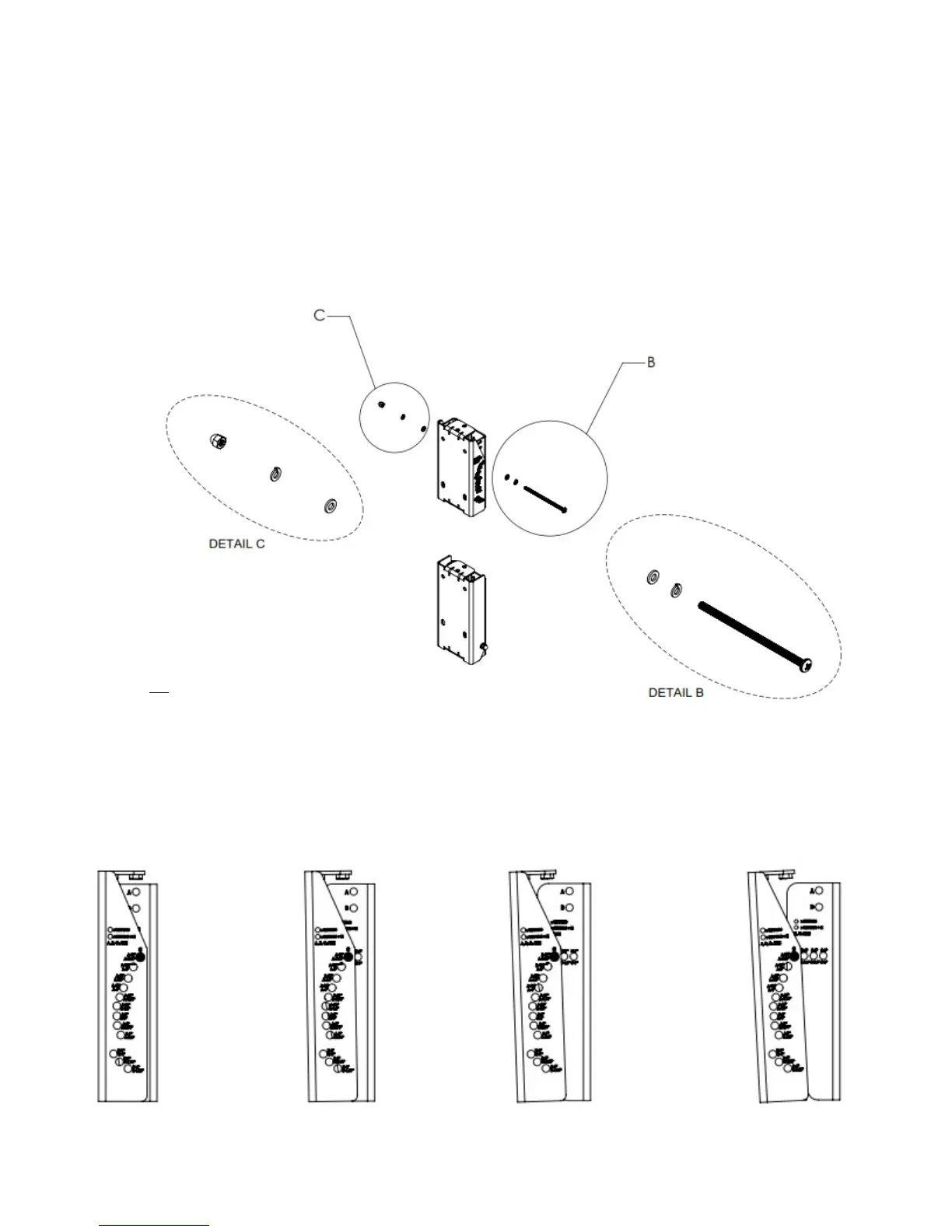

Slide the M6 x 125 mm BOLT into labeled hole for desired down-tilt angle. Use LOCK WASHER
and FLAT WASHER on head and FLATWASHER, LOCK WASHER, and CAP NUT on end of bolt.
M6 CAP NUT
M6 LOCK WASHER
M6 FLAT WASHER
M6 FLAT WASHER
M6 LOCK WASHER
M6 x 125 mm BOLT
For clarity, shown without loudspeaker (or
SWIVEL BRACKET, if utilized), and shown with
brackets in the down-tilt orientation.
ARM LINK is not to be used for tilt angles from 0° to 3°
(CBT1000) or 0° to 0.9° (CBT 1000 + 1000E System)
CBT 1000: 0°
CBT 1000 + 1000E: 0°
Use Points “C”
CBT 1000: 1°
CBT 1000 + 1000E: 0.3°
CBT 1000: 2°
CBT 1000 + 1000E: 0.6°
CBT 1000: 3°
CBT 1000 + 1000E: 0.9°
See full size Tilt Angle Settings Diagram for
detail of markings and settings
