Installation
CAUTION: Before you begin, make sure that the amplifier is disconnected from the
power source and all level controls are turned completely down (counter-clockwise).
1. If you need to mount the transformer module to rack, use a standard 19-inch (48.3-cm)
equipment rack (EIA RS-310B) . You can have the following options according to your
application:
• Rack mounting the transformer module with a CSA-2120 amplifier
• Rack mounting single unit
• Wall mounting
2. Connect the input of the transformer module to the output of the CSA-2120 amplifier with
the shipped 4-pin cable.
3. Determine the proper transformer module tap to use, based on the desired constant-
voltage of your system.

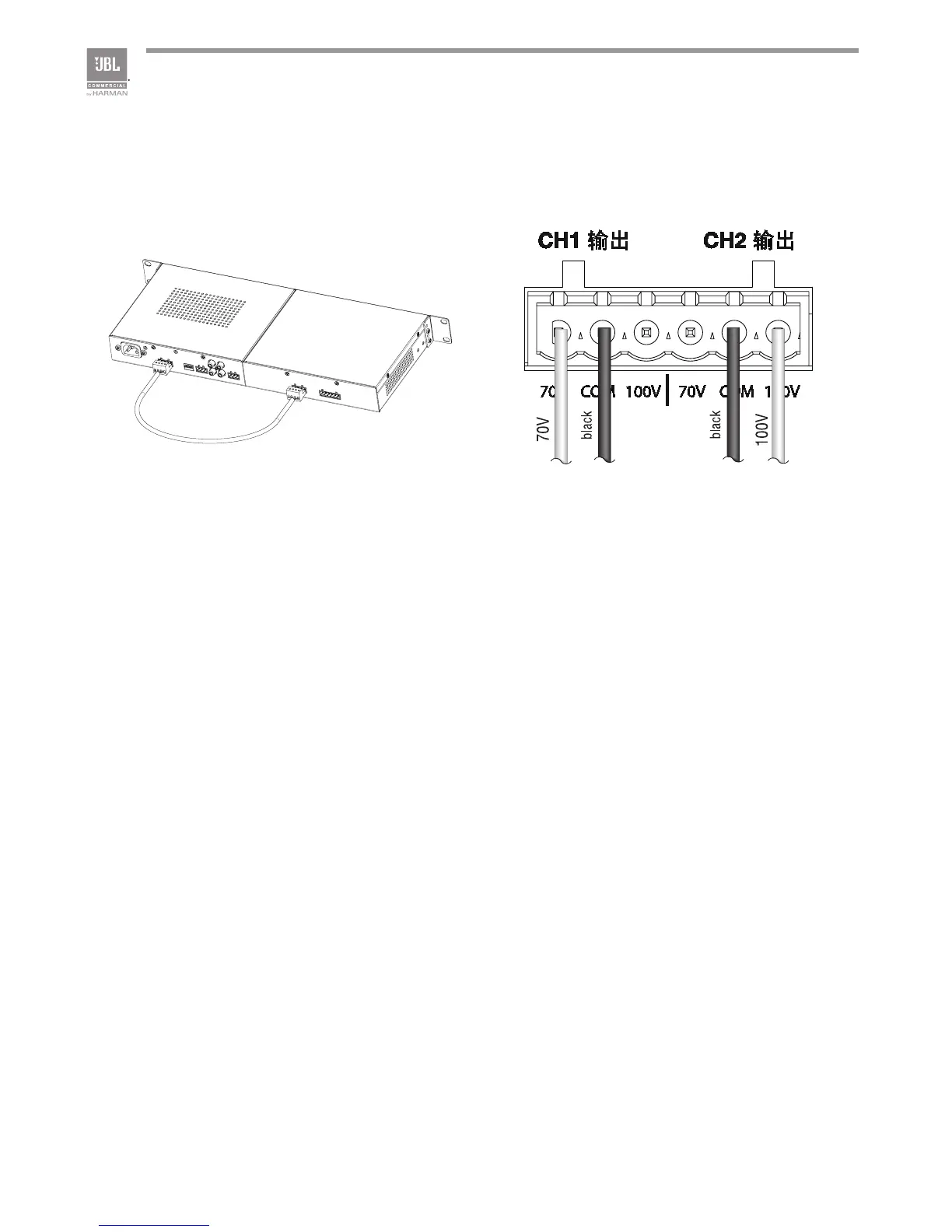

CST-2120 Connection
