System Design
ANCA Motion D-000168 Rev 02 11
4

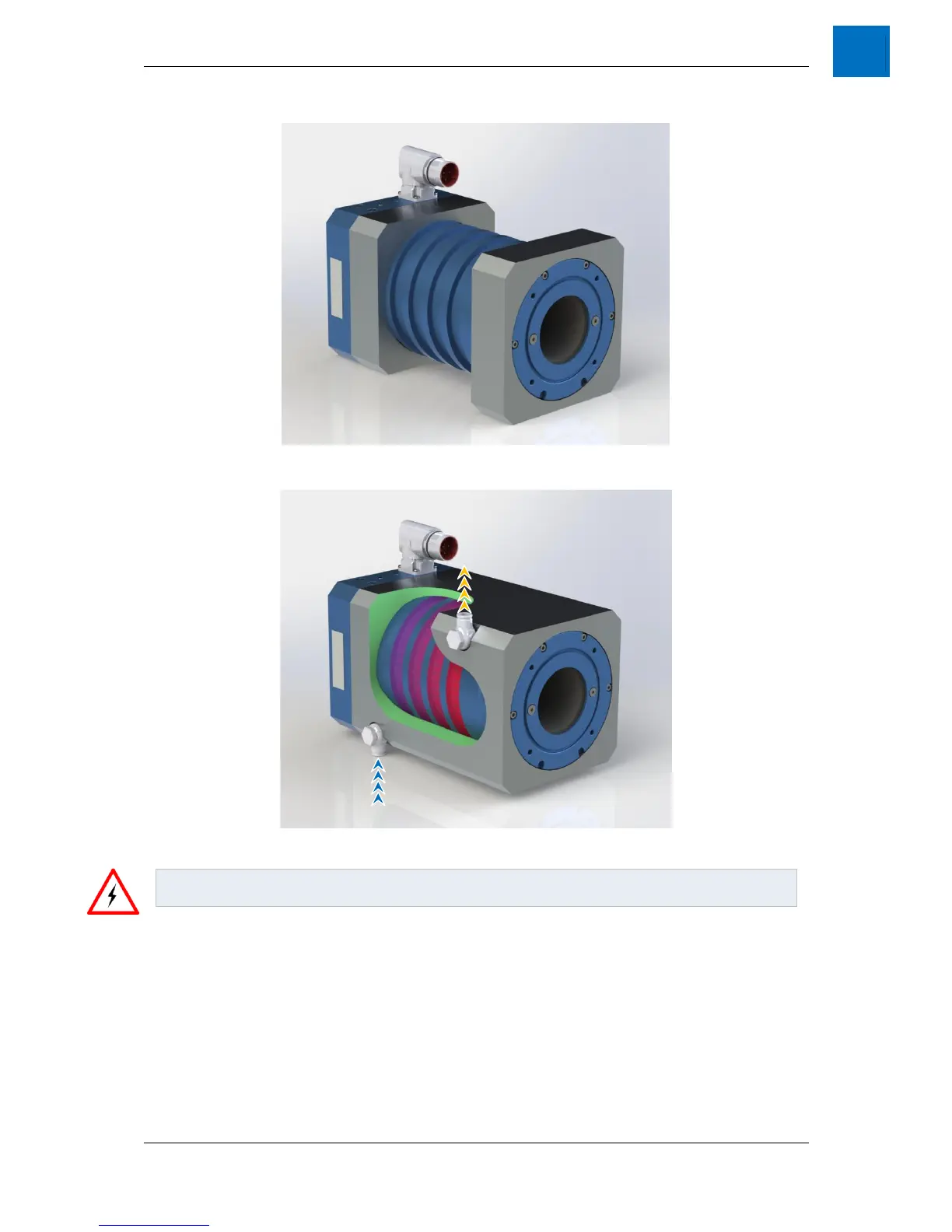

Figure 4-2 - Air cooled forcer mounting example
Figure 4-3 - Fluid cooled forcer mounting example
DANGER: The forcer must be earthed via the armature connector to prevent the possiblility of electric
shock during motor operation.
Brake 4.2.4
An external brake should be considered for all applications to prevent damage to systems or users in the event of
a failure or fault. A brake is recommended for vertical applications regardless of whether a counter balance is
used or not.
In applications that are deemed to require a brake, it is recommended that they are applied to the bearing or
aligning rod systems used with the linear motor. A braking system should not be directly applied to the linear
motor shaft as this could result in damaging the shaft.
