Multi Forcer 4.8.2

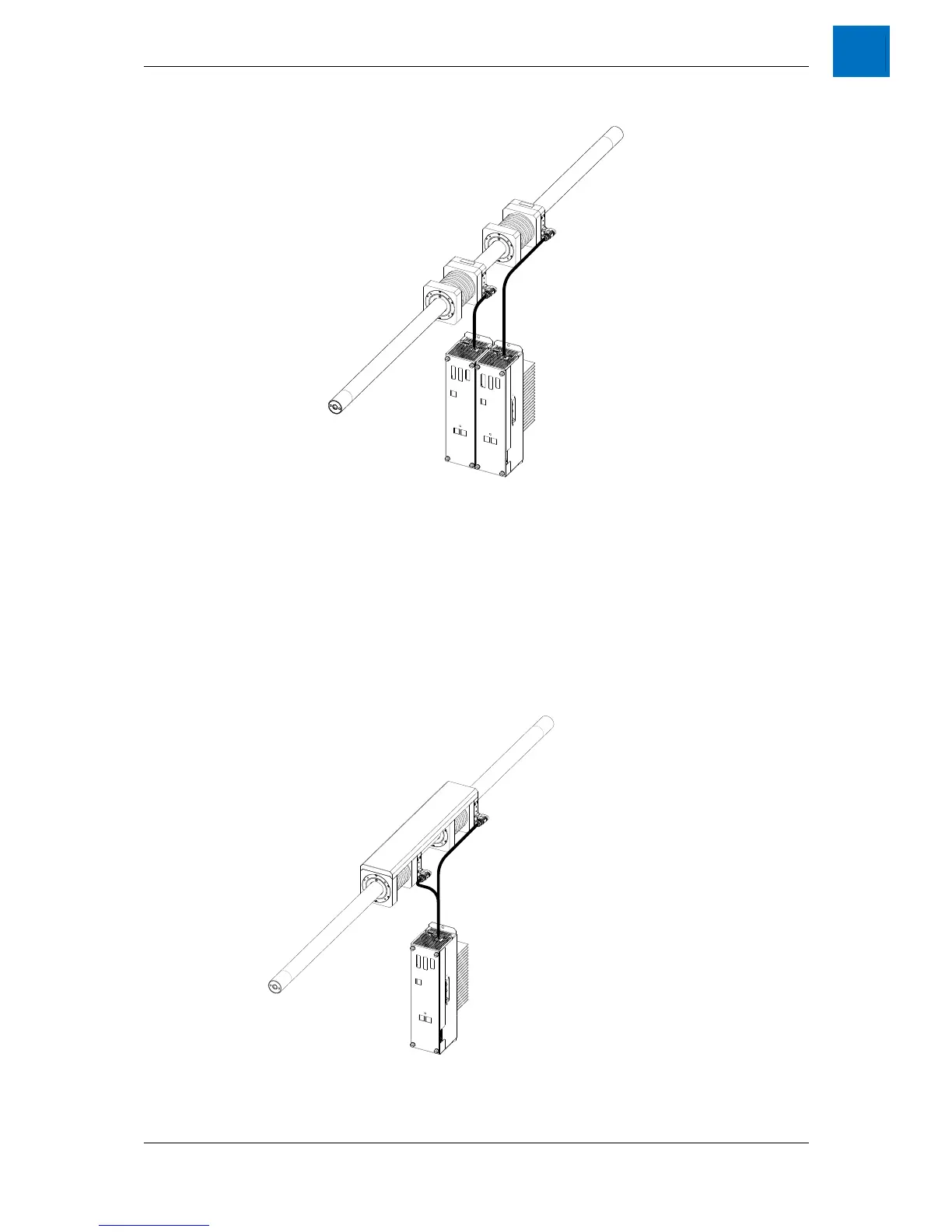

Figure 4-7 – Multiple Forcers
Unlike ball-screw systems, the multiple LinX forcers can operate on a single shaft to increase the force applied by
an axis. These forcers can be synchronized or act completely independently depending on the application. This
setup allows for increased flexibility in machine design while providing a compact and cost effective solution.
Multi Forcer with a Single Drive 4.8.3
In this type of installation multiple coupled forcers are controlled by one servo drive with a single linear encoder
resulting in increased output force. This can be achieved either by having two or more motors each on their own
shaft (Parallel Forcers) or by having two or more motors all on the same shaft (Tandem Forcers). In both cases
the forcer spacing and orientation is important (see section 6.2.2 for more detailed installation instructions).
Figure 4-8 – Tandem Forcers
