Specifications
ANCA Motion D-000168 Rev 02 25
5
NOTE: Longer shafts are available. Please contact ANCA Motion for more information.
Connector 5.3.3

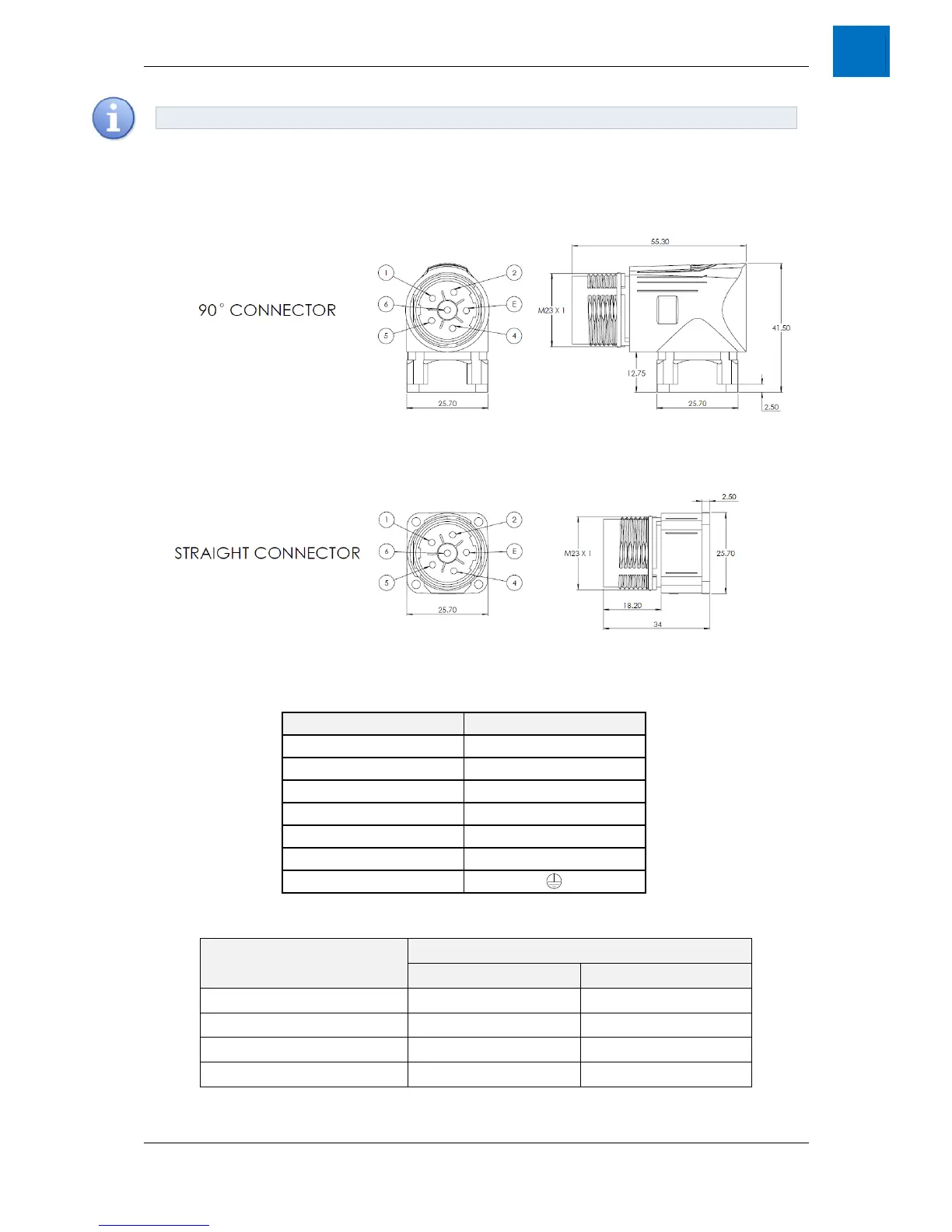

Figure 5-6 – Connector Dimensions
Pin Number
Label
1
U Phase
2
V Phase
3
PE
4
Temperature +
5
Temperature -
6
W Phase
Connector Case
Table 5-3 - Motor power pin allocation
Model
Recommended Ø wire gauge
AWG
mm
2
TLMS-18P
16
1.5
TLMS-27P
14
2.5
TLMS-36P
14
2.5
TLMS-36H
16
1.5
Table 5-4 - Recommended wire gauge for motor power
