LinX Series Linear Motor - User Guide
16 D-000168 Rev 02 ANCA Motion
Multi-Axis Systems 4.8
The LinX linear motor system allows for various multi-axis configurations. This can include a single drive and
motor for each axis, multiple forcers on a single shaft or two motors moving a gantry. These various
configurations can be combined as required for the application.
Single Forcer 4.8.1

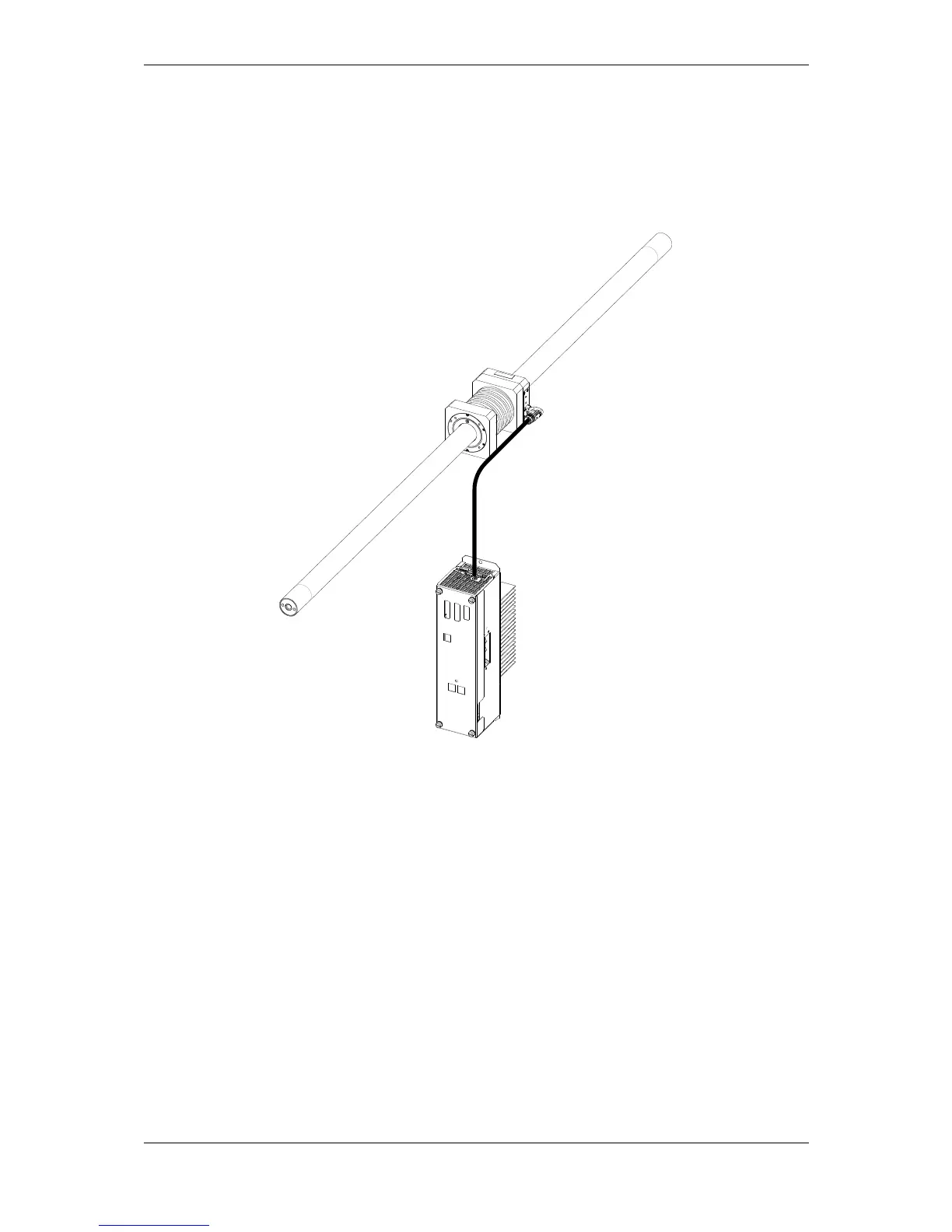

Figure 4-6 – Single Forcer
A single drive, forcer and shaft is the simplest setup. Each set represents an independent axis that can be
combined to create a multi-axis machine.
