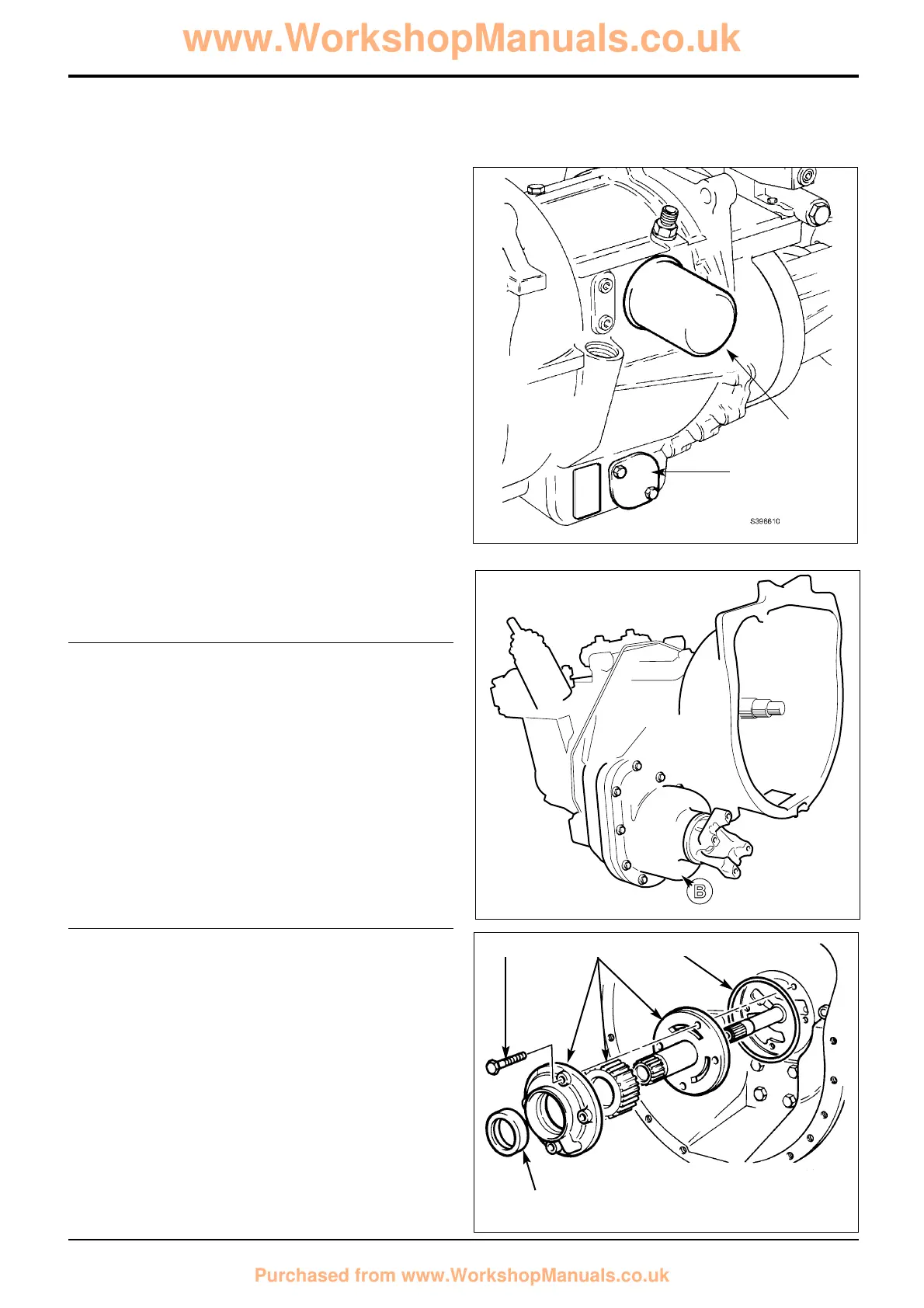

3 Drain the oil from the casing by removing the suction
strainer 3a. Remove and discard the oil filter 3b.
4 If the gearbox is fitted with a 2/4 wheel drive unit B,
remove it. For the correct procedure see Hydraulic 2/4
wheel Drive Unit, Dismantling .
5 Unscrew bolts and withdraw pump.
6 Remove and discard pump sealing ring.
7 Separate pump components. Note that the pump
components are held together with a security screw at
the rear of the assembly.
8 Remove and discard oil seal from pump housing.
110 - 2
Section F Transmission
9803/3280
Section F
110 - 2
Issue 1
Synchro Shuttle Gearbox
Dismantling (cont'd)
