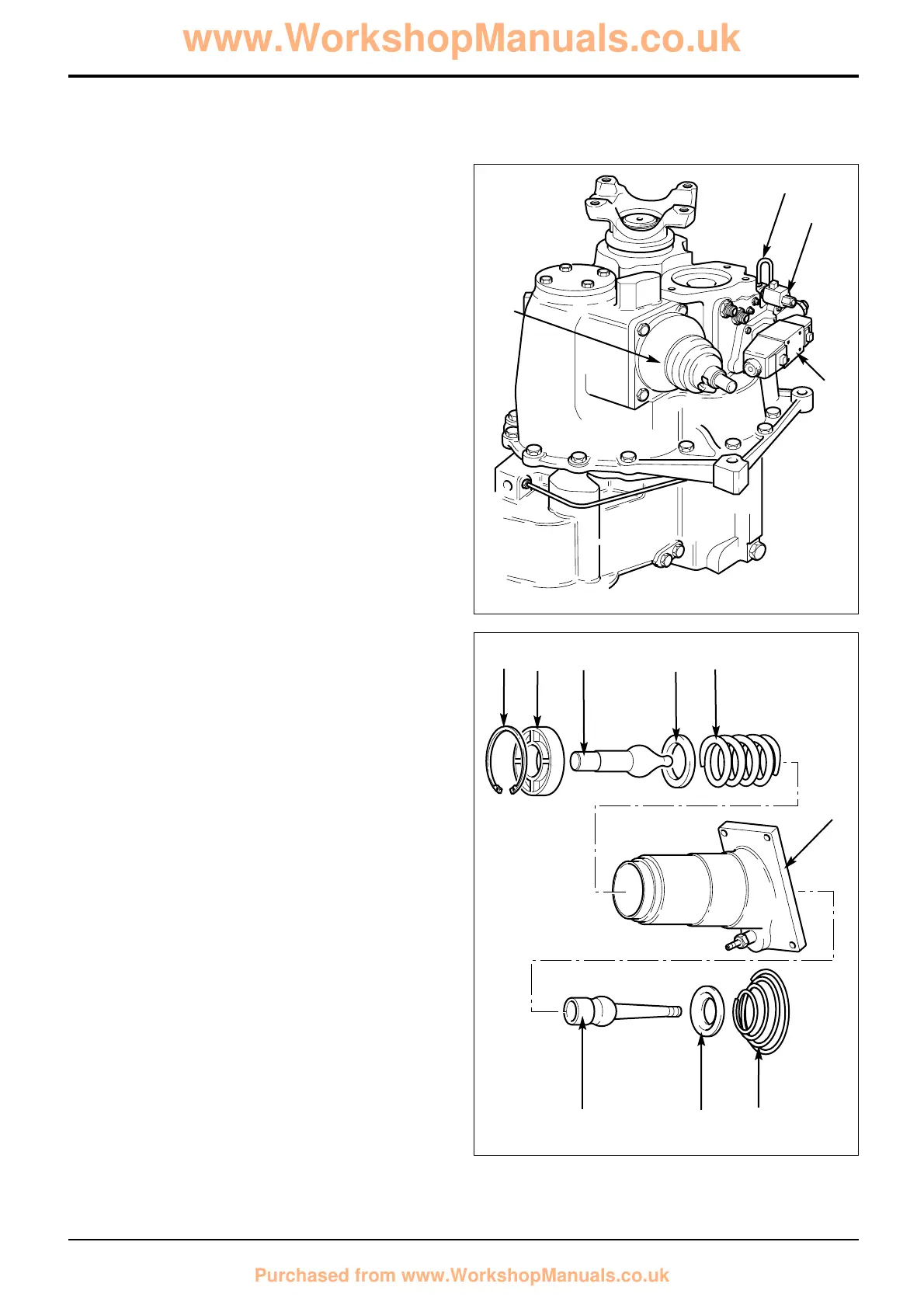

A387950
Position transmission vertically, standing on the face of the
torque converter housing.
9 Unscrew capscrews and remove solenoid control valve.
Note ‘O’ rings fitted around ports on mating face of
solenoid valve body.
Note: See Service Procedures, Forward/Reverse Control
Valve for solenoid dismantle/assembly .
10 On 4 wheel drive transmissions remove the 4 wheel
drive hydraulic pipe and control valve 10a.
11 Undo the 4 bolts and remove the gear lever turret.
Remove the baffle plate beneath if fitted. If necessary
the turret assembly can be dismantled as follows:
a Slacken worm drive clips and remove rubber boot.
b Using a suitable press or clamp, carefully press the
top lever 11a down to compress spring 11b, just
enough to release pressure on circlip 11c.
Note: BEWARE of spring pressure acting on nylon seat when
circlip is removed.
c Remove circlip 11c.
d Slowly release the pressure from the top lever 11a
and remove it, together with bush 11d, washer 11e
and spring 11b.
e Rotate spring 11c so as to disengage from the
retaining tabs inside the turret 11. Be aware that the
spring may suddenly disengage while still under
pressure. Repeat this operation until all the coils are
disengaged and the spring can be removed.
f Remove retainer 11f and bottom lever 11g.
110 - 3
Section F Transmission
9803/3280
Section F
110 - 3
Issue 1
Synchro Shuttle Gearbox
Dismantling (cont'd)
A388210
11
11c 11d 11a 11e 11b
11c11f11g
11
10
10a
9
