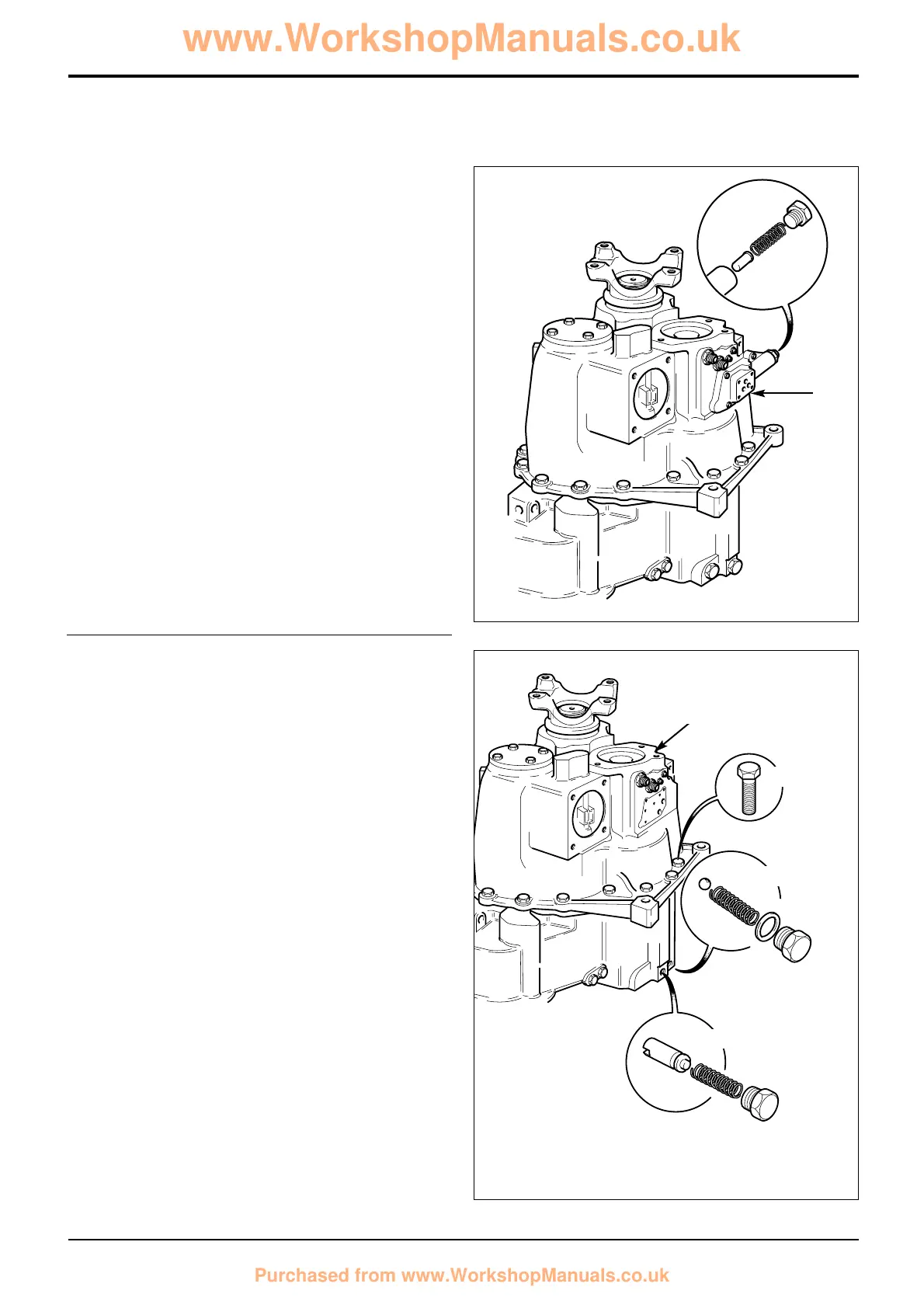

12 Unscrew plug and withdraw pressure maintenance
valve spool and spring.
13 Unscrew four bolts and remove pressure maintenance
valve body. Remove and discard gasket.
14 Remove the torque converter pressure relief valve ball
and spring assembly 14a. Remove the torque converter
pressure regulating valve spool and spring assembly
14b.
15 Unscrew bolts and lift off output end casing 15a. Be
sure to retrieve bearing outer cups from inside the
casing. Keep the cups together with their associated
bearing.
110 - 4
Section F Transmission
9803/3280
Section F
110 - 4
Issue 1
Synchro Shuttle Gearbox
Dismantling (cont'd)
12
13
14a
15a
15
14b
To Next Page
