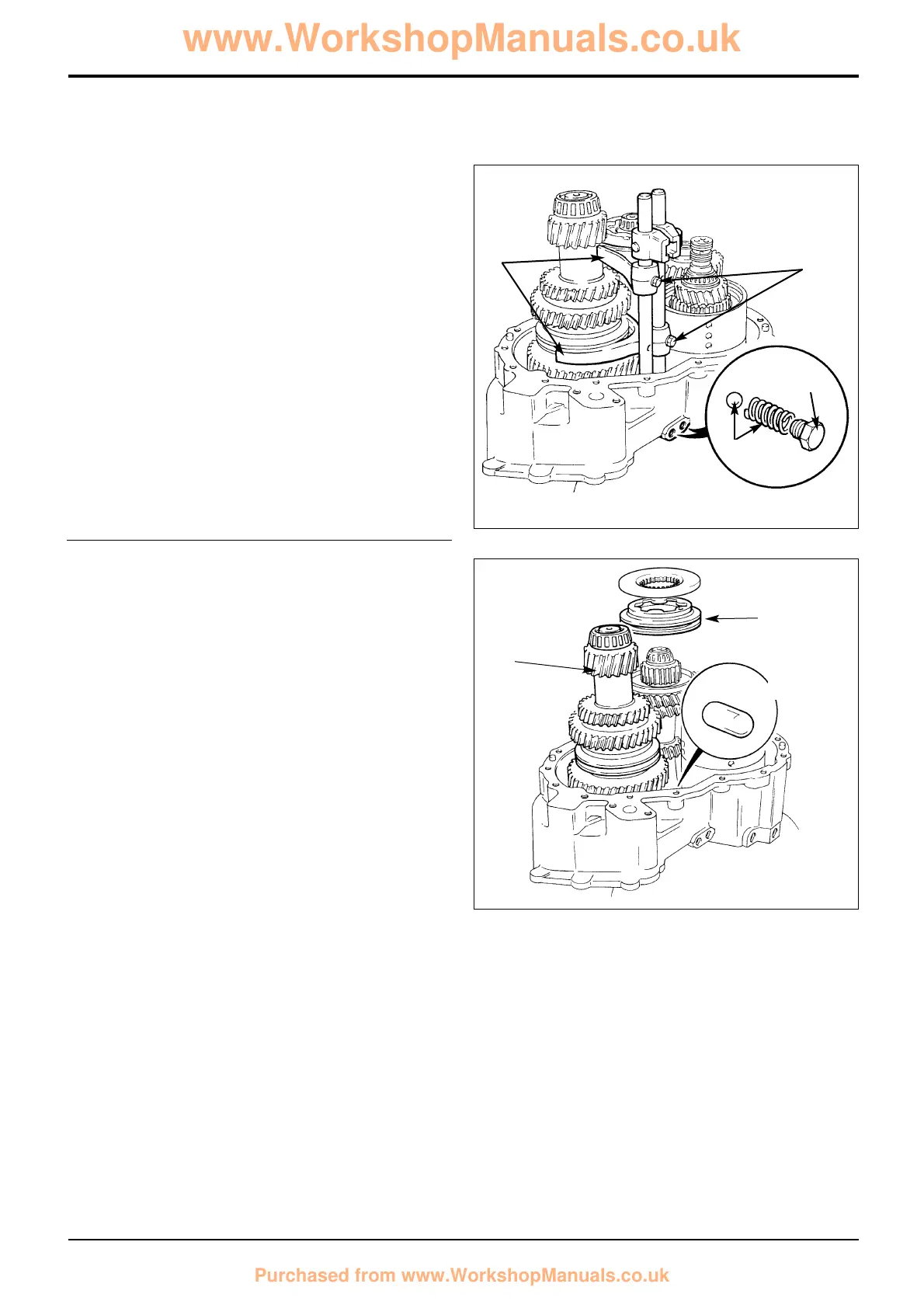

16 Unscrew selector detent plugs.
17 Remove selector detent balls and springs.
18 Unscrew selector fork retaining screws and lift out
selector rods.
19 Note that the selector forks are not interchangeable.
Mark the forks to ensure they are replaced correctly.
Remove selector forks.
20 Push out the interlock plunger on disassembly.
21 Lift off 3rd/4th synchro-hub. Note the positions for
refitting with mating cups.
22 Lift out layshaft assembly .
110 - 5
Section F Transmission
9803/3280
Section F
110 - 5
Issue 1
Synchro Shuttle Gearbox
Dismantling (cont'd)
16
18
19
17
221080
S395460
21
22
20
To Next Page
