Adjustments (cont’d)
Determining the Thickness of Flange 3 (cont’d)

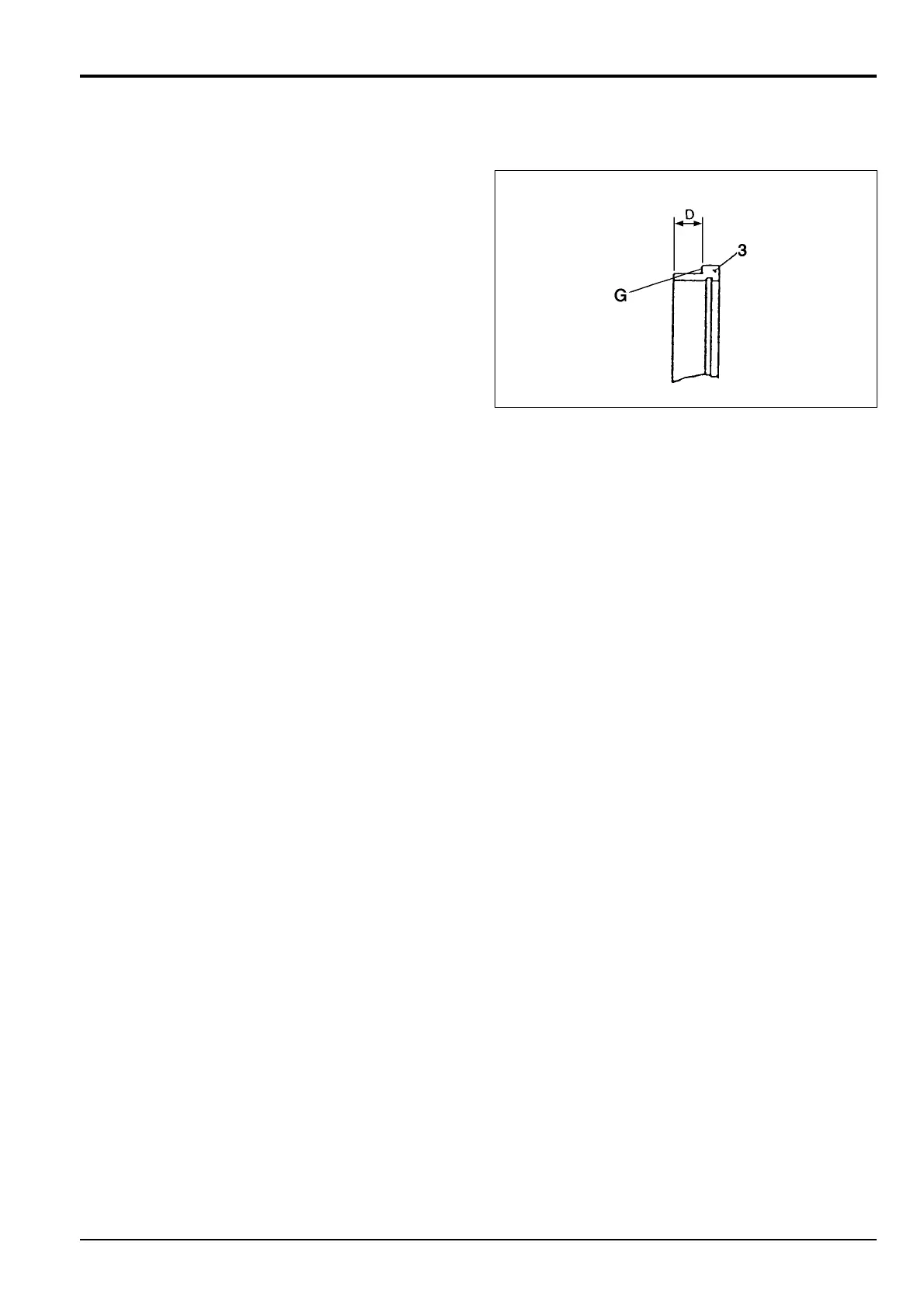

4 On flange 3, measure dimension D which should be the
same as the dimension C determined in step 3.
5 Depending on the result in step 4, proceed as follows:
a If D is less than C, trim off surface G, using a lathe,
until D = C.
b If D = C no further action is necessary.
c If D is greater than C fit a new spindle 2 and flange
3, then repeat steps 1 to 4. (Note that the
replacement flange will include a grinding
allowance.)
6 Remove the clearance measuring jig from spindle 2.
9 - 9
Section F Transmission
9803/6410
Section F
9 - 9
Issue 1
Reduction Gear - JS130
JS00520
