6 - 1
Section 1 General Information
9803/6020
Section 1
6 - 1
Issue 1

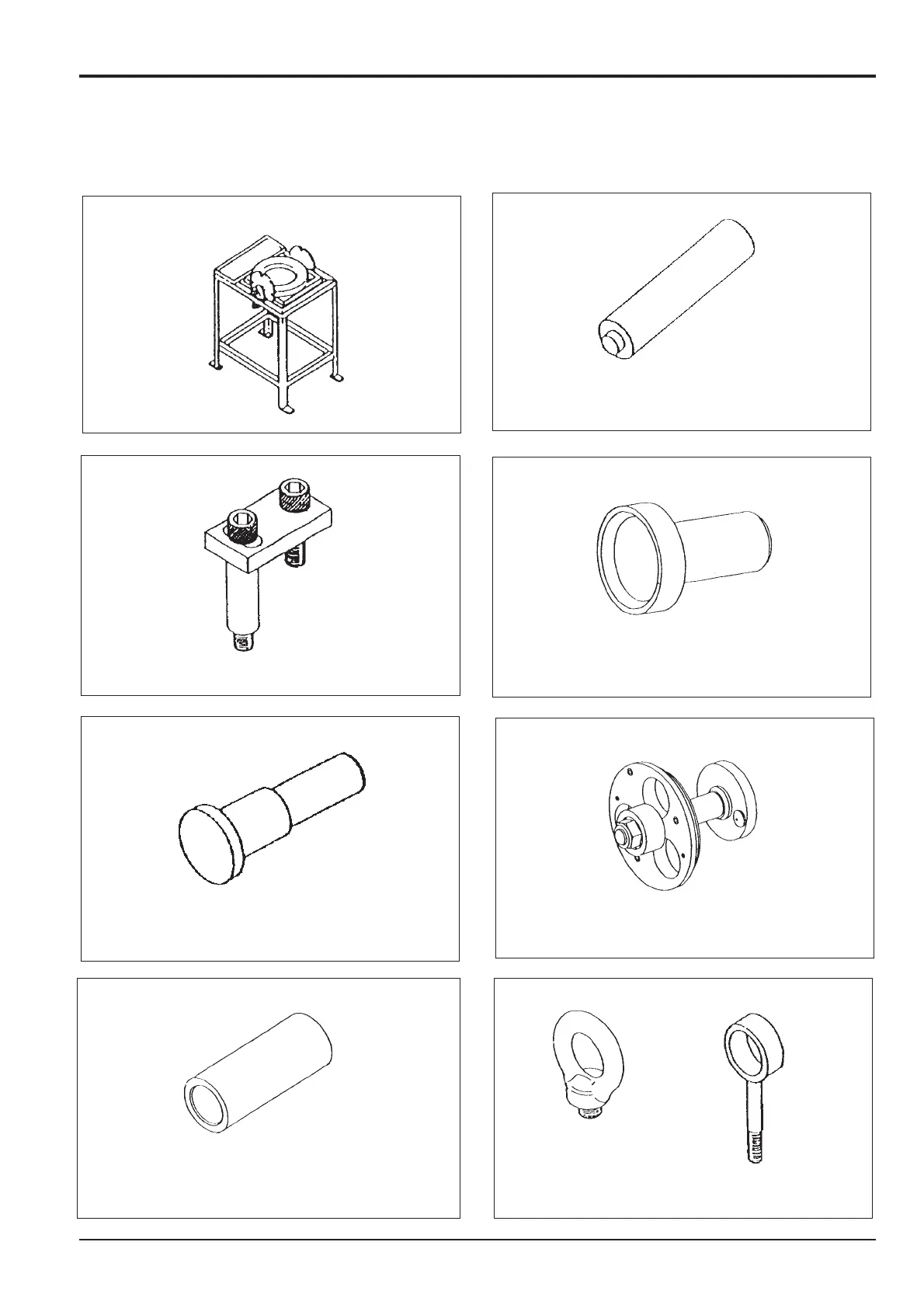

Work Bench
Hub 1/ spindle 2 Securing jig
Special tool I
To Remove spring 114 from cylinder block 104.
To insert spring 114, washer 110 and snap ring 145
into the cylinder block 104.
Special Tool II
For removing the deep groove ball bearing race 149
from shaft 102.
Special tool III
for pressing the oil seal 132 into the spindle.
Special tool IV
Use to locate the outer race of the bearing 22 and tap
to secure the bearing to the crankshaft.
Main bearing pre-load adjusting jig.
Eye bolts
A - Facilitates lifting of cover 8 from hub 1.
B - Use to hoist track gearbox, spindle 2 and hub 1.
A
B
Service Tools (continued)
SECTION F - TRANSMISSIONS
