4 - 15

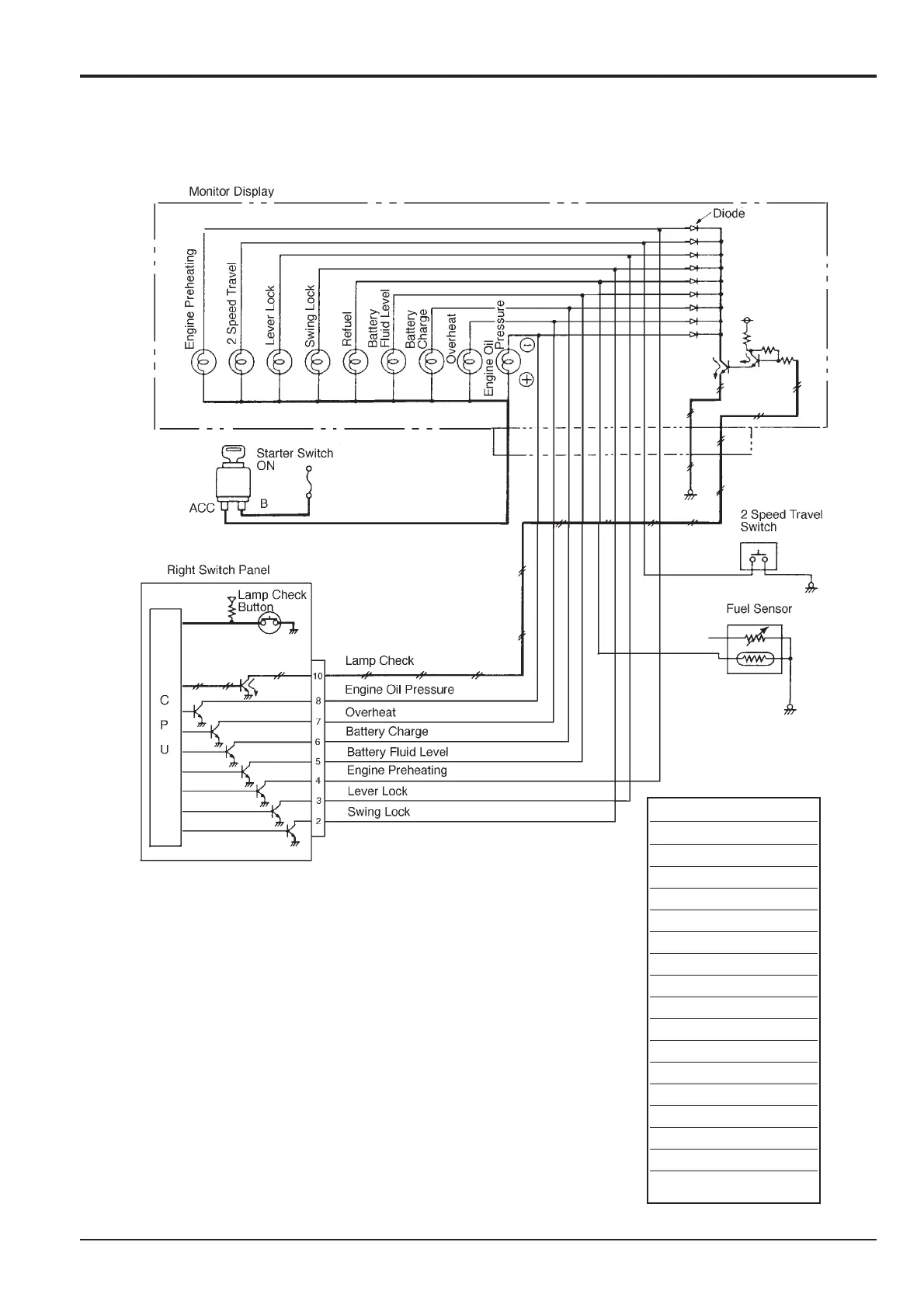

Monitor Display
Section C Electrics
9803/6020
Section C
4 - 15
Issue 1
Engine Control
288460
A
B
C
D
E
L
M
N
P
Q
K
J
H
G
B
D
E
R
S
T
F
G
H
J
K
A
Monitor Display
B
Engine Preheating
C
2 Speed Travel
D
Lever Lock
E
Swing Lock
F
Refuel
G
Battery Fluid Level
H
Battery Charge
J
Overheat
K
Engine Oil Pressure
L
Starter Switch
M
ON
N
Right Switch Panel
P
Lamp Check Button
Q
Lamp Check
R
Fuel Sensor
S
2 Speed Travel Switch
T
Diode
