4 - 10

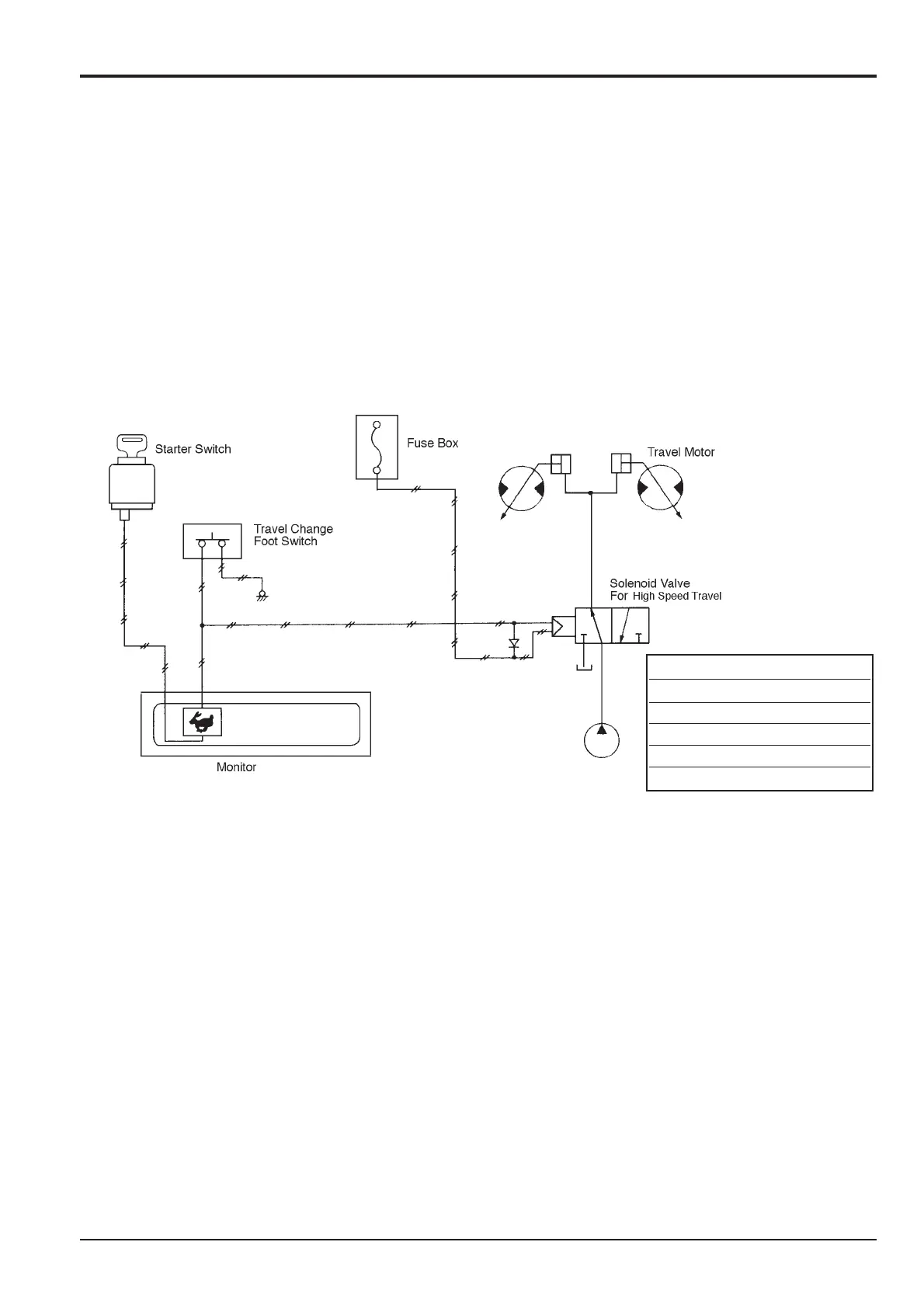

High Travel
When the Travel change foot switch is pressed, the
electrical power from the fuse box passes through the
solenoid valve for high speed travel and the travel
switching foot switch is earthed. The solenoid valve is
switched and the angle of the swash plate in the travel
motor is changed by the pilot pressure. The electrical
power from the starter switch ACC passes through the
monitor, the travel change foot switch and is earthed.
The high speed lamp on the monitor is then illuminated.
Section C Electrics
9803/6020
Section C
4- 10
Issue 1
Engine Control
288400
A
D
B
E
C
F
A
Starter Switch
B
Fuse Box
C
Travel Motor
D
Travel Change Foot Switch
E
Solenoid Valve for High Speed Travel
F
Monitor
SOL 3
