10 - 2

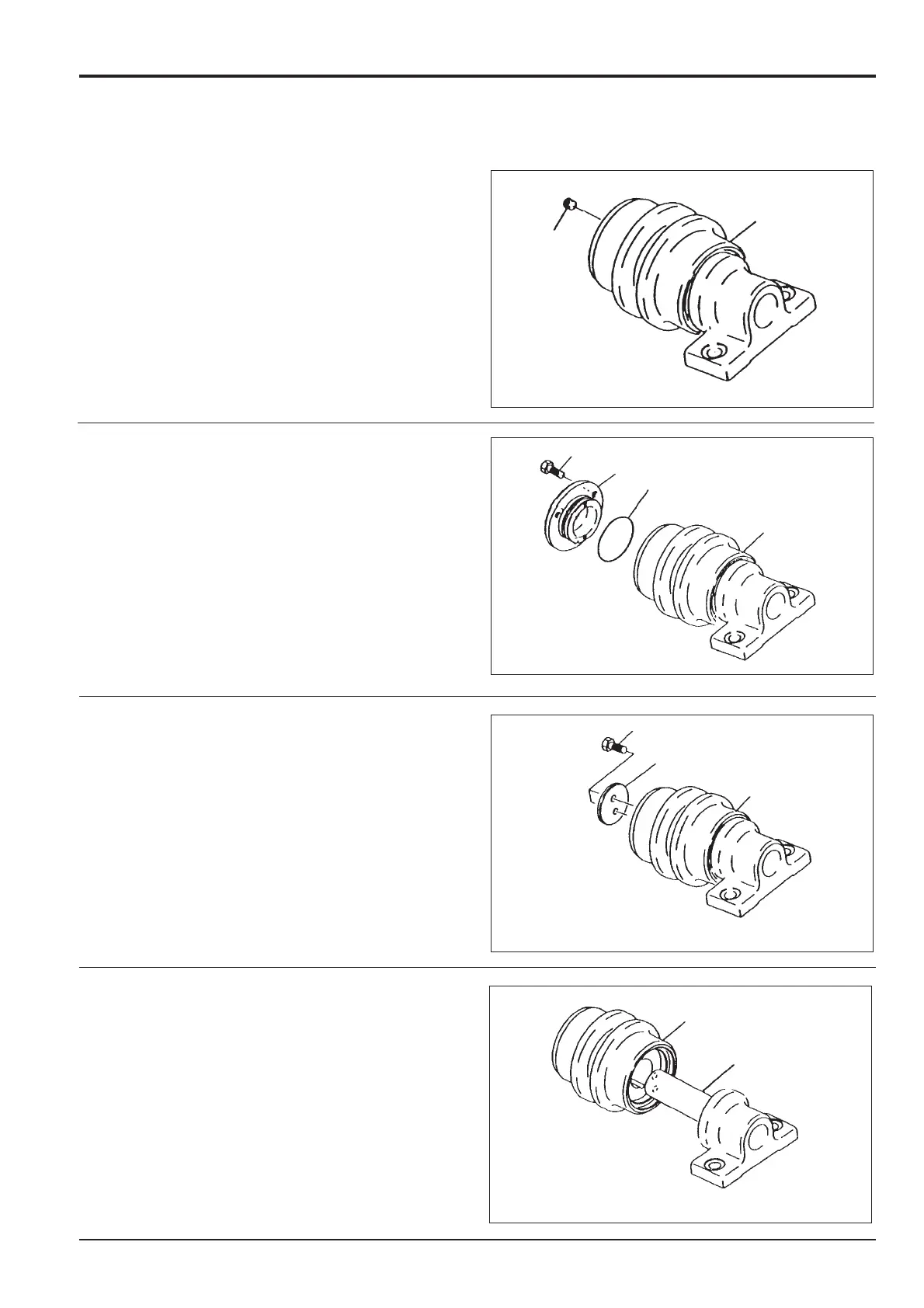

Dismantling
1 Clean the upper roller A with an appropriate detergent.
Remove the plug B from the cover and drain the oil.
2 Remove the bolts E, and cover C. From from the roller.
Remove the 'O'-ring D from the cover C. Discard the
‘o-ring.
3 Remove bolts E, and the thrust plate F from the end of
the shaft.
4 Pull the upper roller A from the shaft H.
Section J Track and Running Gear
9803/6020
Section J
10 - 2
Issue 1
Top Roller
B
A
A
E
D
C
F
E
A
A
H
286670
286680
286690
286700
