10 - 1
Section J Track and Running Gear
9803/6020
Section J
10 - 1
Issue 1

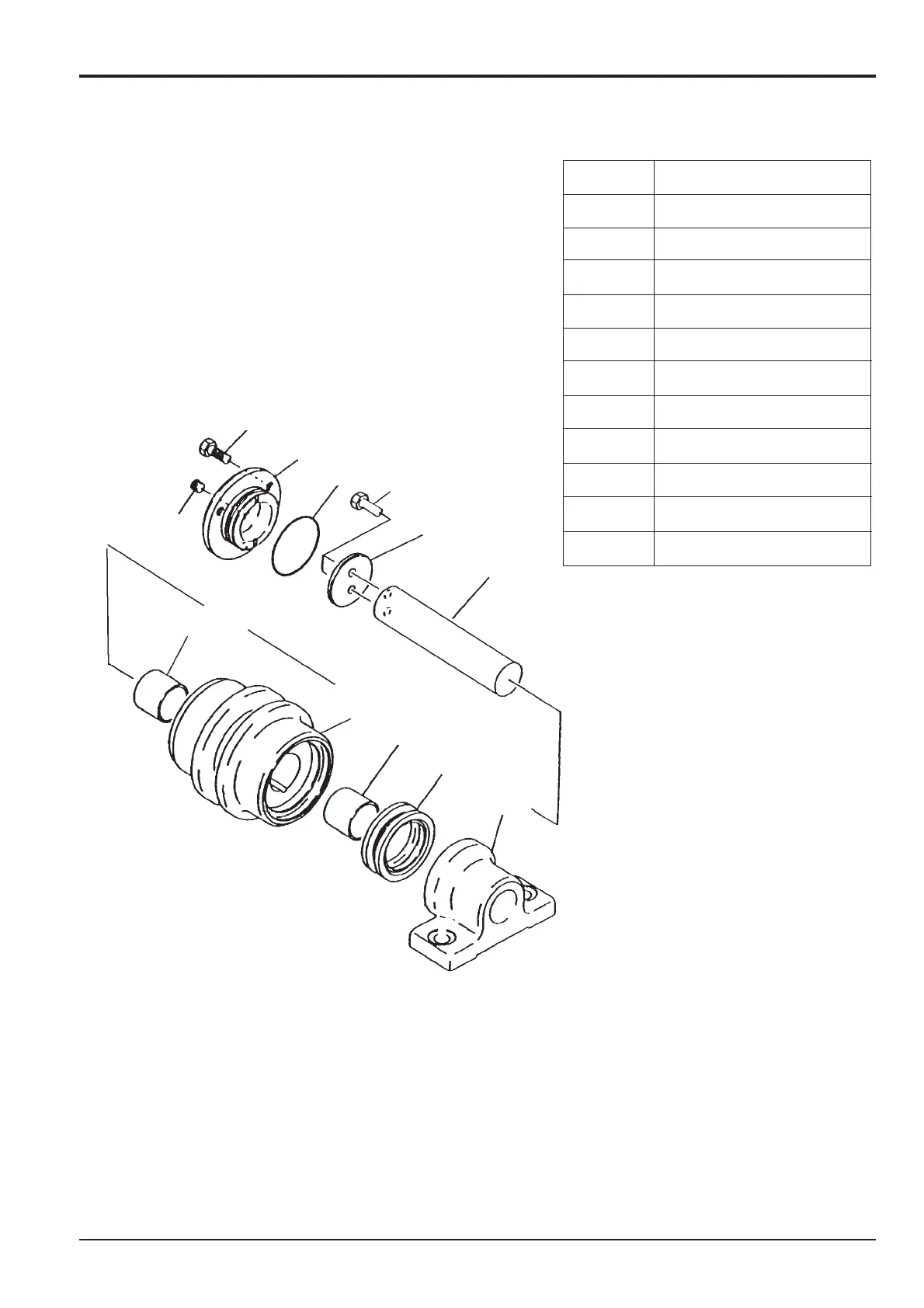

Top Roller
Item Part Name
A Roller
B Plug
C Cover
D ‘O’-ring
E Bolt
F Thrust plate
G Shaft
H Floating seal
I Bush
J Bush
K Mounting bracket
E
C
B
D
E
F
G
A
J
H
K
I
