jcb JS70 Service Manual

3 - 2
Section C Electrics
9803/6020
Section C
3 - 2
Issue 1

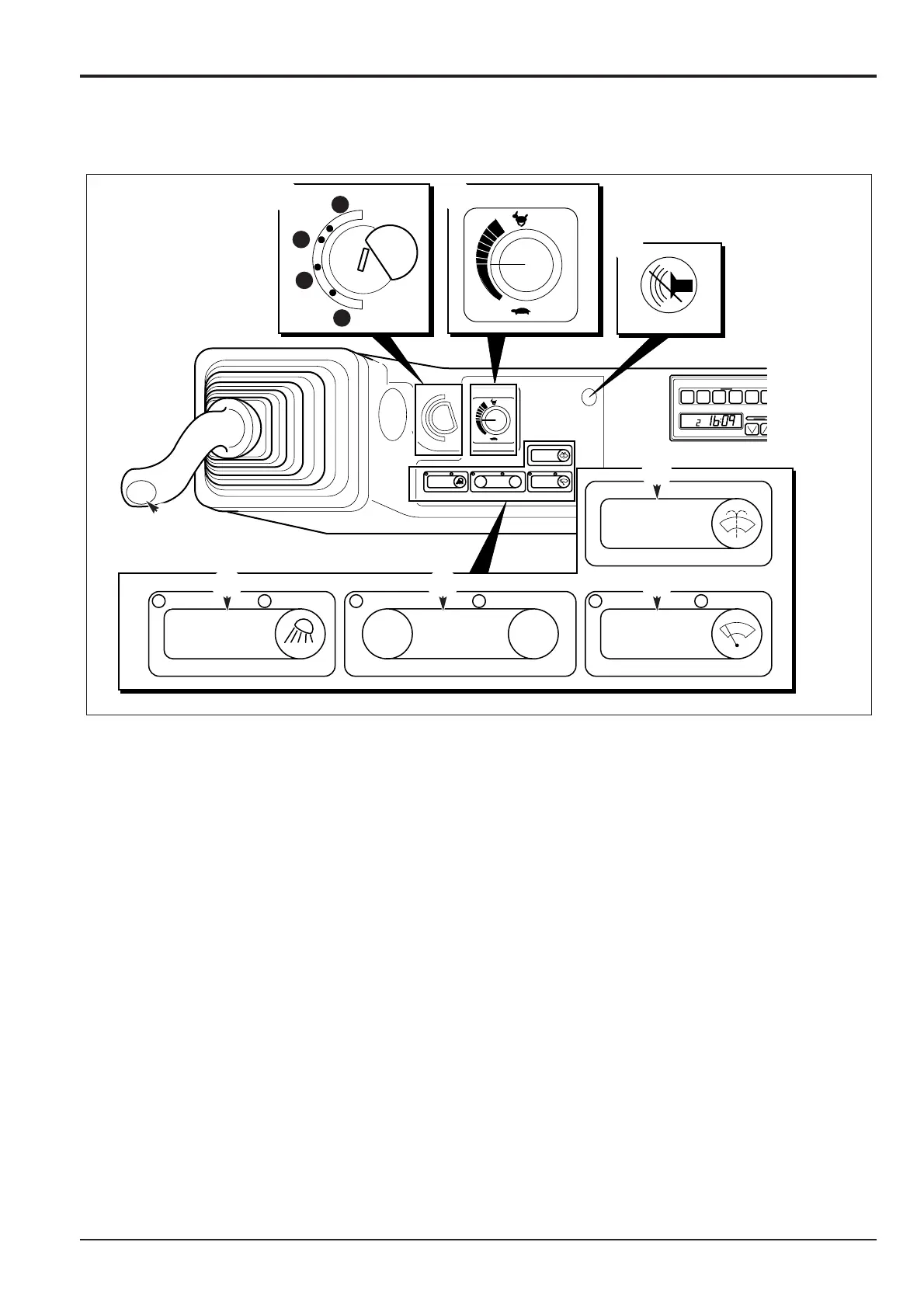

Cab Layout
1 Starter Switch.
a START POSITION
Engine starting position.
bON
Engine running position.
Electrical system energising position.
c OFF
Engine stop position.
Key inserting/removing position.
Electrical system off position.
d HEAT
Engine preheating position.
Note: The key is also used for both opening/closing the
door.
2 Throttle Control
This rotary control provides progressive engine speed
control over the full range.
3 Buzzer Silencing Switch
Press the switch to silence the warning buzzer. Check
the items indicated on the monitor and repair or
inspect as necessary.
When the switch is pressed, all icons on the monitor
should illuminate. Replace the lamps of any icons
which are not illuminated.
4 One Touch Idle Switch
The engine speed can be switched back and forth
between ‘low idling’ and the Throttle Control setting
with each push of the switch.
JS08130
H
E
A
T
S
T
A
R
T
O
N
O
F
F
12
SLMODE
12
SLMODE
123456
FM
AM
FM
AM
ch
1 2
3
5 6 7
8
4
a
c
b
d
Right Console
