78 - 4
Section E
Hydraulics
9803/6020
Section E
78 - 4
Issue 1
Hydraulic Rams
Reconditioning (cont’d)
After completion of the bedding of the seal ring, remove
the jig in the following order
.
1
Retract the press r
od.
2
Remove the bedding jig.
This completes the fitting and bedding of the seal ring.
10

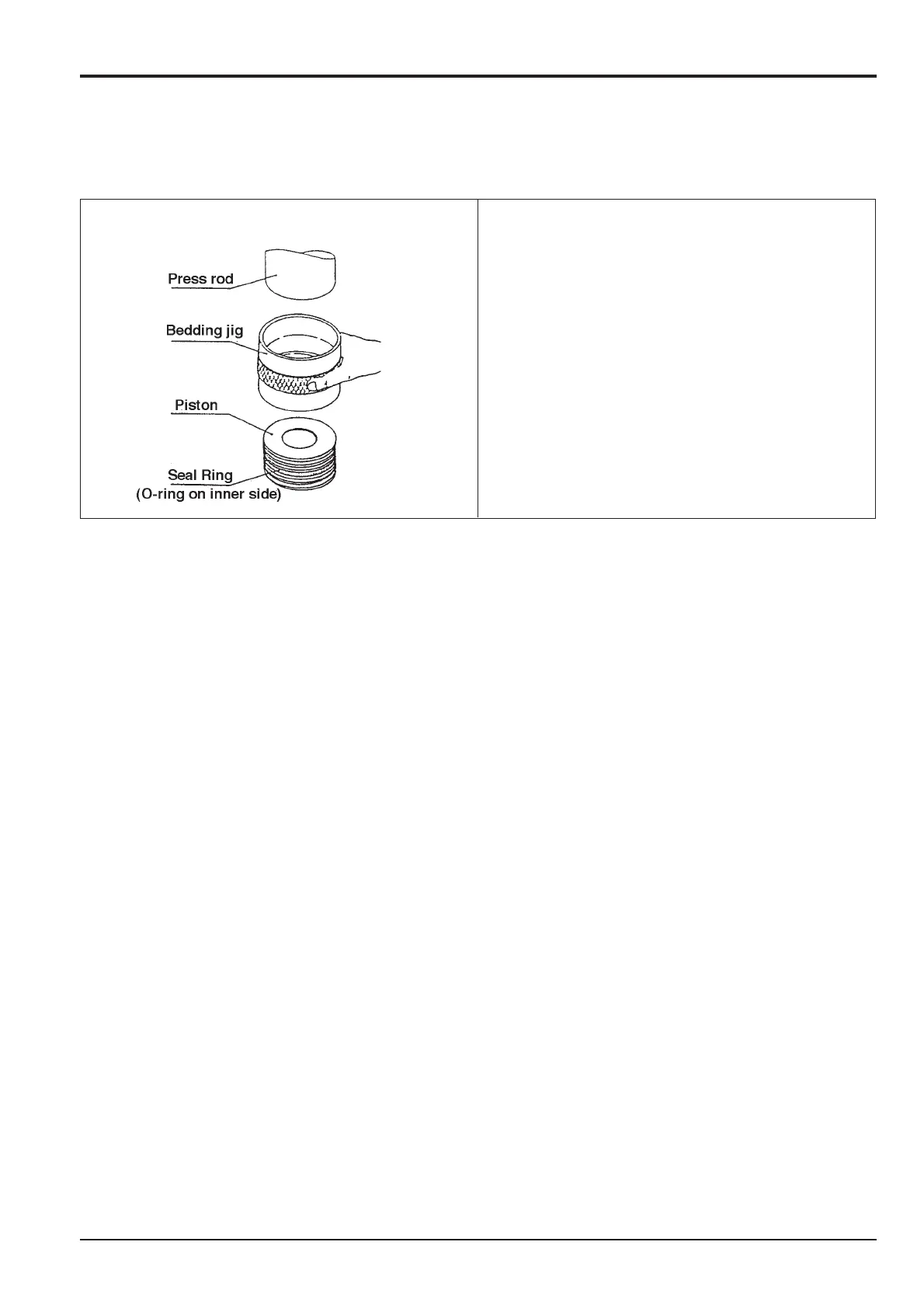

Removal of bedding jig
JS02160
253
255
