Removal and Replacement (cont’d)
Removal (cont’d)

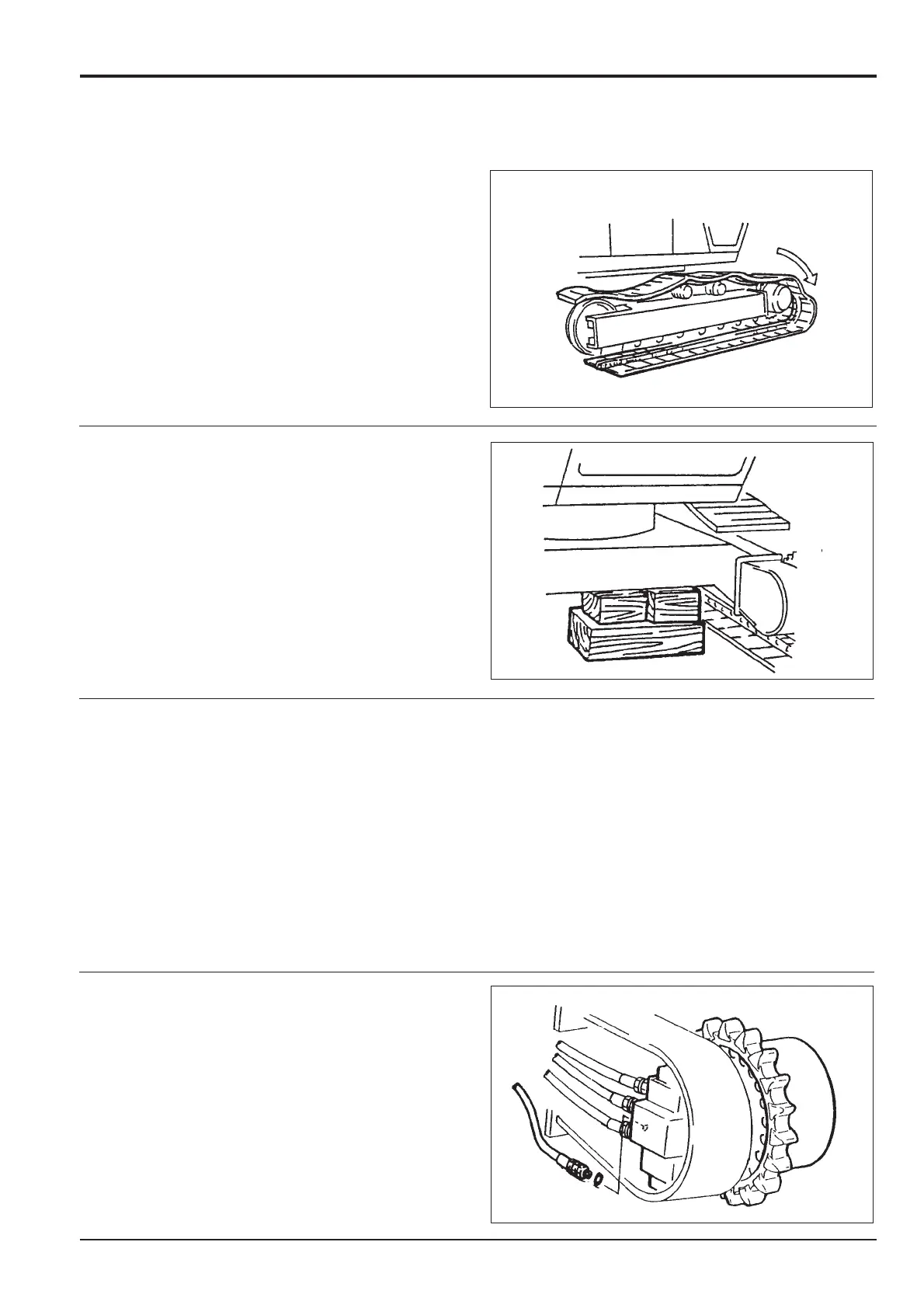

4 Operate the traction motor to remove the track.
5 Lift the side of the undercarriage high enough to
permit drive sprocket removal. Support with wooden
blocks.
6 Stop the engine and operate the control lever to
relieve pressure in the hydraulic system.
Release pressure in the hydraulic tank (See Releasing
Tank Pressure, Section 3).
7 Remove the motor cover, attach identification tags to
the motor hoses, disconnect the hoses from the
motor and install plugs and caps.
