Assembly (cont’d)

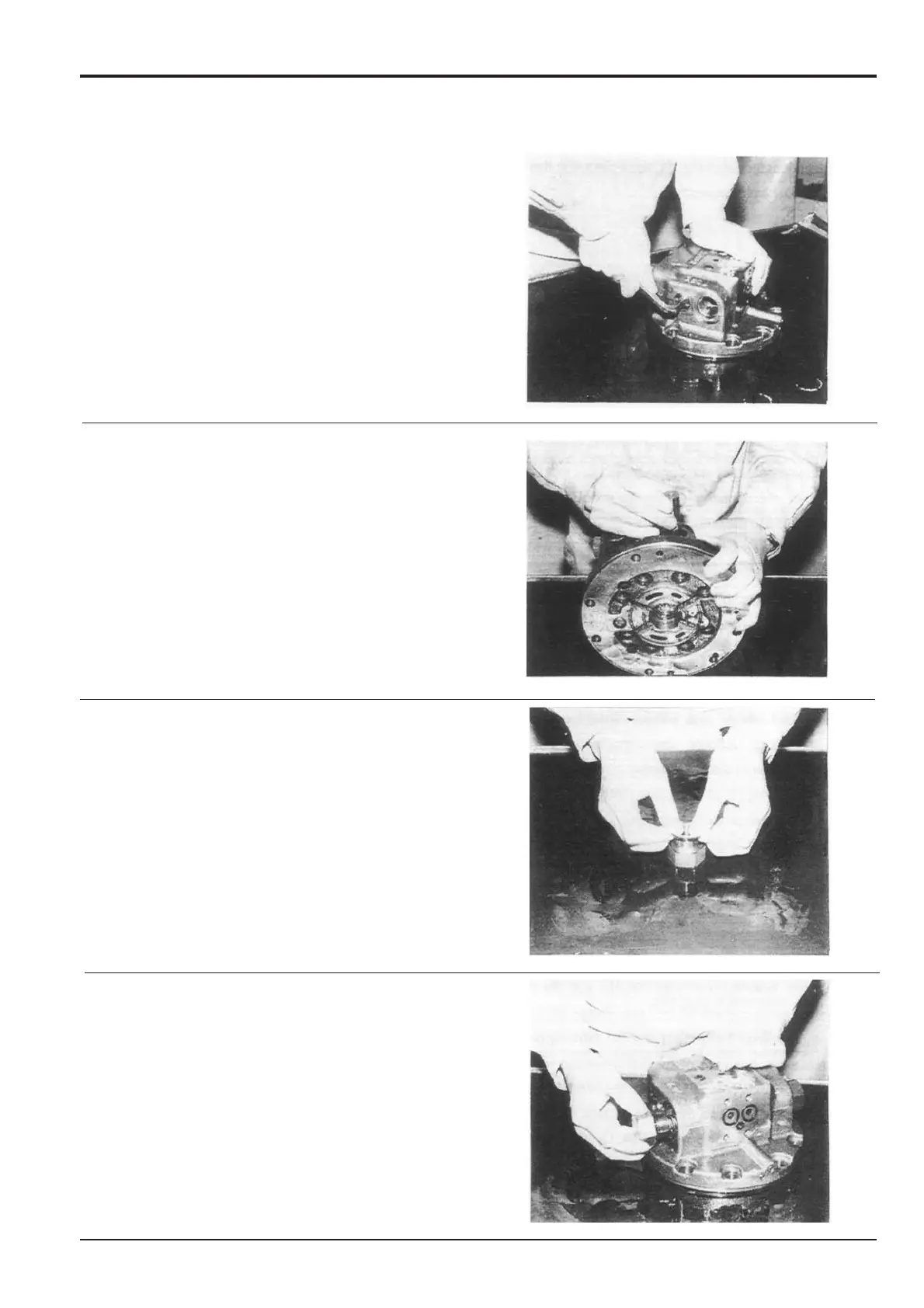

35 Temporarily tighten the plugs 126 with an Allen key.
36 Coat spool 123 with hydraulic oil and insert into rear
flange 101. Take special care during insertion to avoid
damaging the spool and its bore.
37 Coat two new 'O' rings 136 with grease and fit one to
each plug 124.
38 Coat spring seats 125 and springs 128 with grease and
assemble one of each to each plug 124.
Install the assembled items into rear flange 101, one
assembly on each side. Take care not to distort the
springs during installation.
