8 - 38
Assembly (cont’d)

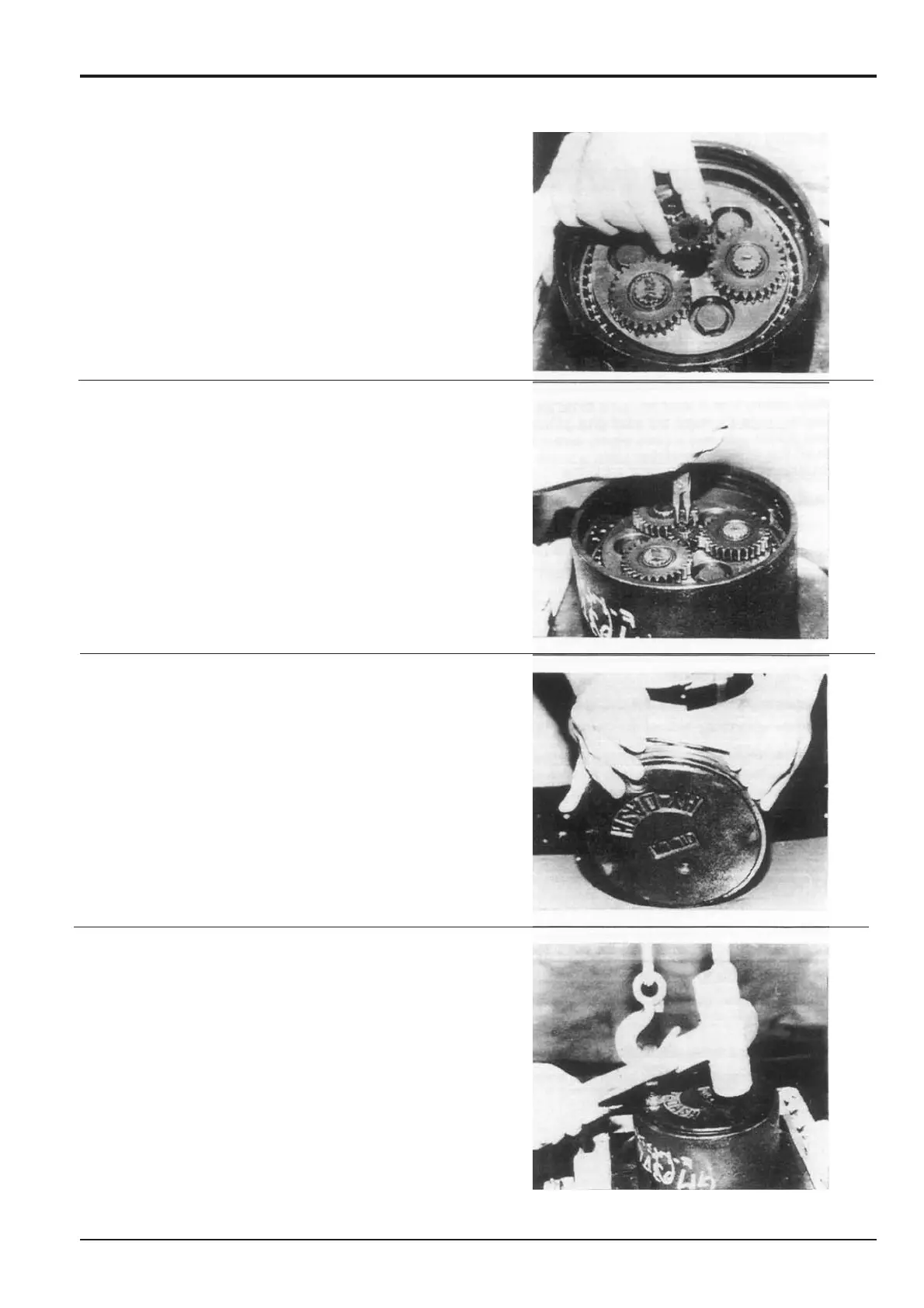

57 Turn the track gearbox over.
Fit input gear 6 to shaft 102, aligning it with the three
spur gears 7.
58 Install snap ring 24 in the groove on shaft 102.
Fill the track gearbox with lubricating oil (see Lubricants
and Capacities, Section 3).
59 Coat a new 'O' ring 29 with grease and install in the
groove of cover 8.
60 Line up the alignment marks on cover 8 and hub 1.
Install the cover into the hub by lightly tapping it with a
plastic hammer around the circumference. Extra care
must be taken not to damage 'O' ring 29. Damage could
result in oil leakage.
Section F Transmission
9803/6020
Section F
8 - 38
Issue 1
Track Gearbox
