4 - 4

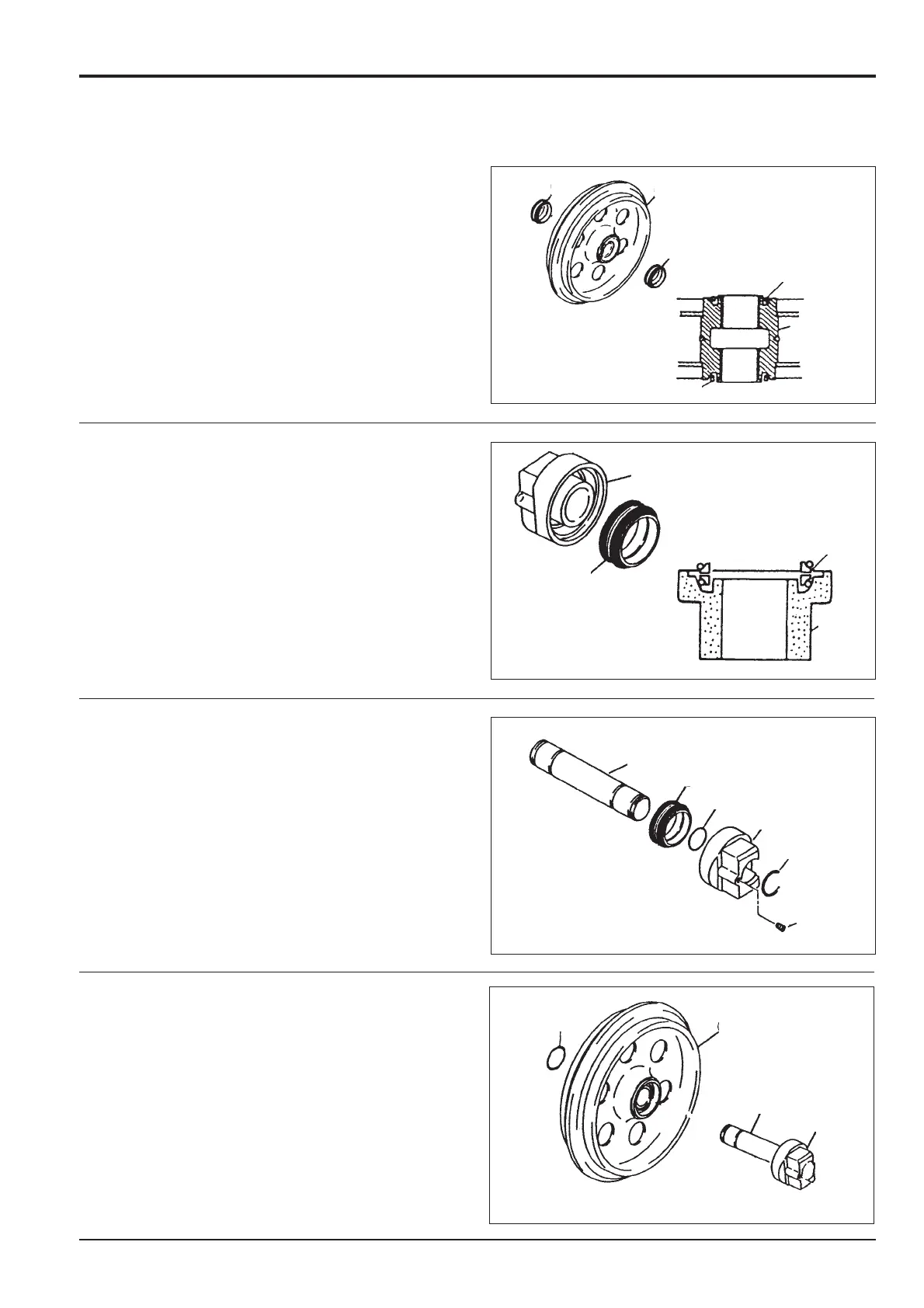

Assembly (cont’d)
2 Apply a coating of grease and install a new floating seal
E into each side of the idler wheel A.
3 Apply a coating of grease and install a new floating seal
E into hub C.
4 Grease a new 'O'-ring F and install on one end only of
shaft B. Install shaft B into hub C. Fit new wire clip G .
5 Coat shaft B with grease. Clean the metallic face of the
seal, coat the metallic face with engine oil and insert
the shaft into the idler wheel A.
Section J Track and Running Gear
9803/6020
Section J
4 - 4
Issue 1
Idler Wheel
284310
284300
284290
284270
E
A
C
E
C
B
E
F
C
G
H
B
C
A
F
E
E
E
A
E
