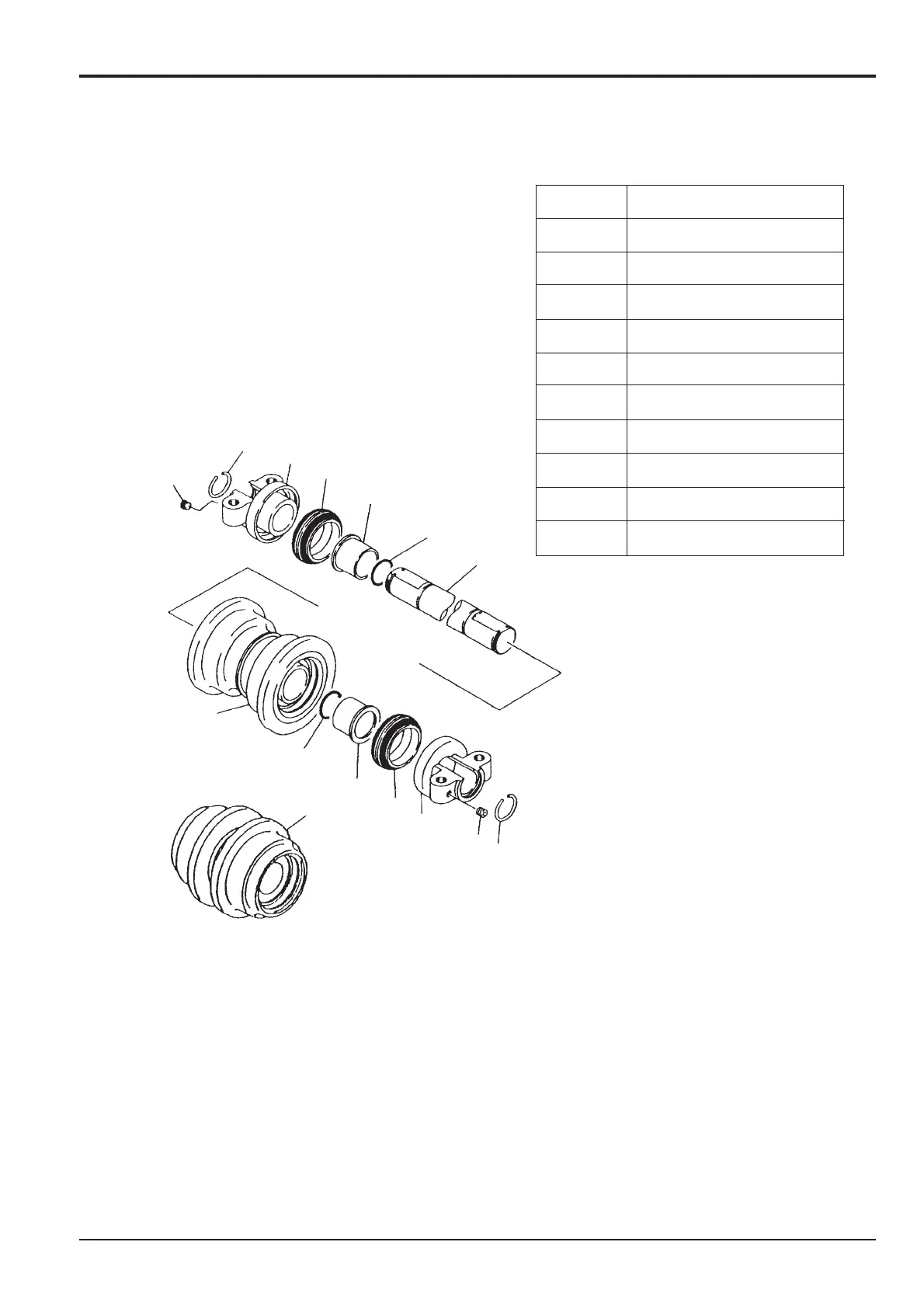

Bottom Roller
Item Part Name
A Plug
B Locking wires
C Shaft
D Mounting bracket
E Mounting bracket
F Floating seal
G ‘O’-ring
H Roller (outer flange)
J Roller (inner flange)
K Bushing
A
B
D
F
K
G
J
H
A
B
E
F
K
G
C
