JCM GEN2U - Figure 14 Presenter Assembly; Figure 15 Print Head Release Lever;Print Head

© 2016, JCM Global Corporation 17 Part No. 960-000177R_Rev. A
GEN2U™ Printer
6. Open the Print Head Release Lever (Figure 15 a).
7. Clean the Print Head (Figure 15 b) using a Cleaning Swab (Figure 15 c).
(Printer lid open)
a
b

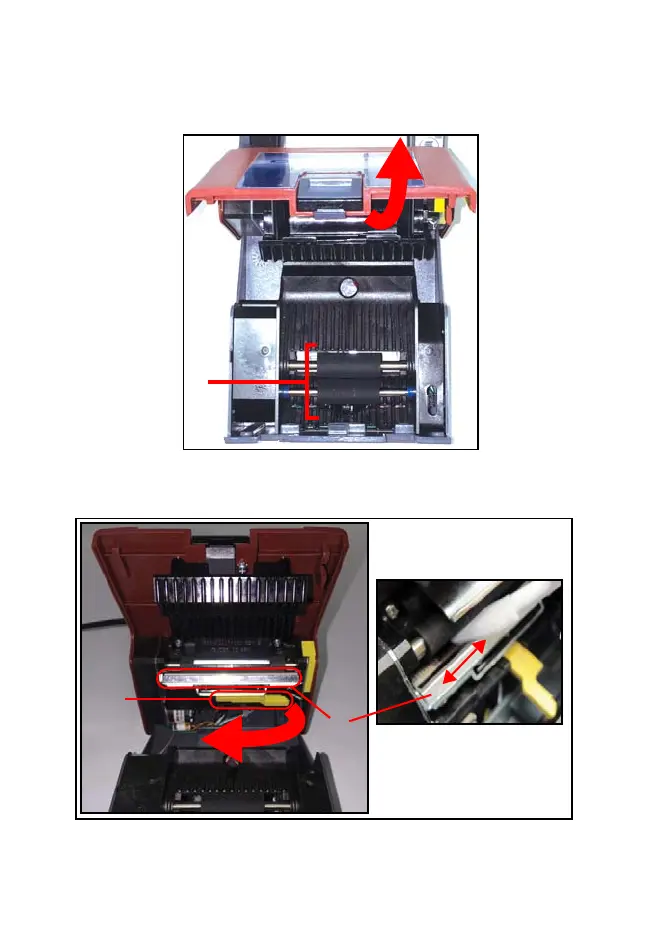

Figure 14 Presenter Assembly
a
b
Figure 15 Print Head Release Lever/Print Head
c
Clean Print Head (b)
with Cleaning Swab (c)
