JCM GEN2U - Figure 17 Platen Roller;Pinch Roller

© 2016, JCM Global Corporation 19 Part No. 960-000177R_Rev. A
GEN2U™ Printer
9. Use a Cleaning Wipe to wipe and clean the Platen Roller (Figure 17 a).
Rotate the Roller to clean the Roller’s entire circumference.
10. Close the Print Head Release Lever (refer to Figure 15 a on page 17).
11. Use a Cleaning Wipe to wipe and clean the Upper Pinch Roller
(Figure 17 b).
a
b
(Printer lid open)

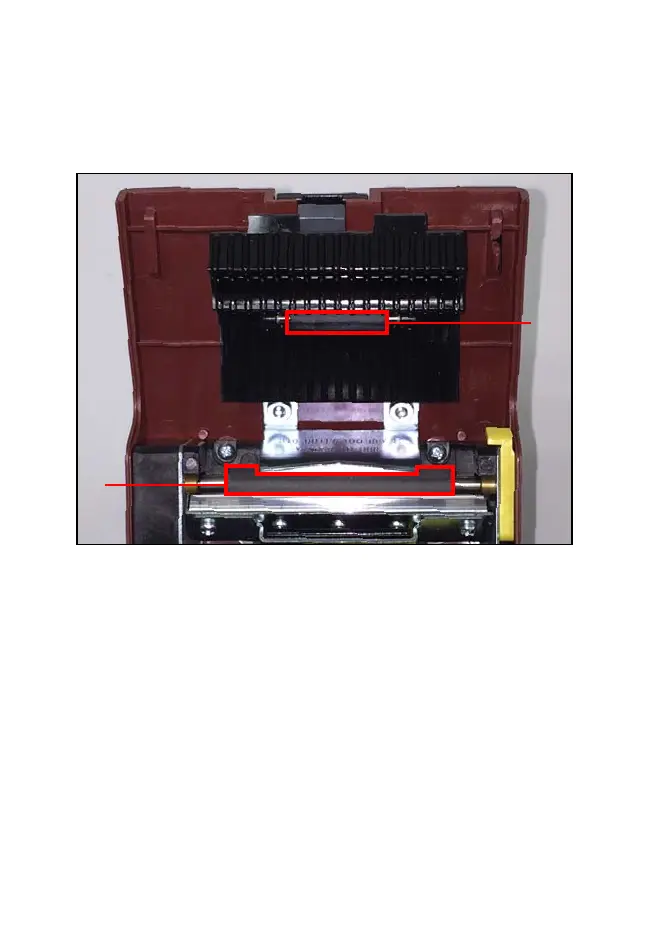

Figure 17 Platen Roller/Pinch Roller
