11

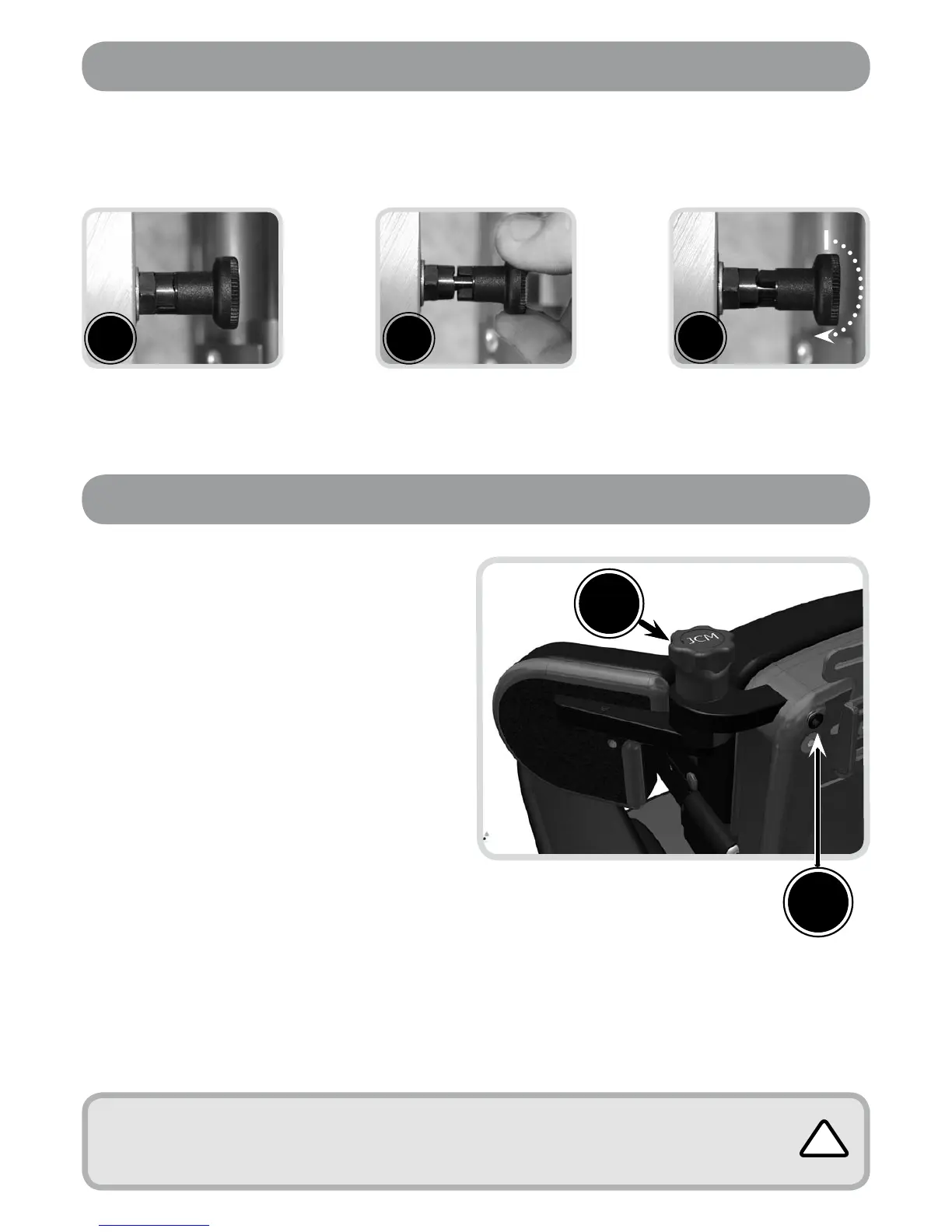

Using the Index Plungers (Locking Variety Only)
• To place the plungers in an open position - Pull out the plungers to maximum tension and
turn them through a half turn anti-clockwise (B). This places them in an open position (C).
LOCKED
TURN
OPEN
A
C
B
• To close - Turn the plungers a half turn clockwise and they should snap back into a
locked position (A).
Lever Use - Using Index Plungers
Adjusting Shoulder Protraction Pads
Pad/ Shoulder Width
• Turn locking screw (A) half a turn using
the 4mm Allen Key provided, manually
position the pad to fit the user by sliding
the pad in or out.
• Lock the pad in place by re-securing
locking screw A.
Pad/Protraction Angle
• To set the angle of the pad you should
loosen the securing handwheel (B) by
rotating a couple of turns in an anti-
clockwise motion. Once released the
pads can be positioned by pressing
down on the handwheel whilst
simultaneously altering the angle of the
pad using your other hand.
• Once the desired position has been
achieved you should release the
handwheel and resecure it by turning in
a clockwise direction until hand tight.
Pad Angle – As an Alternative you can position the pad without pressing
down the handwheel, though this has potential to shorten the life of the
locking mechanism and is therefore not recommended.
!
A
B
B
