19

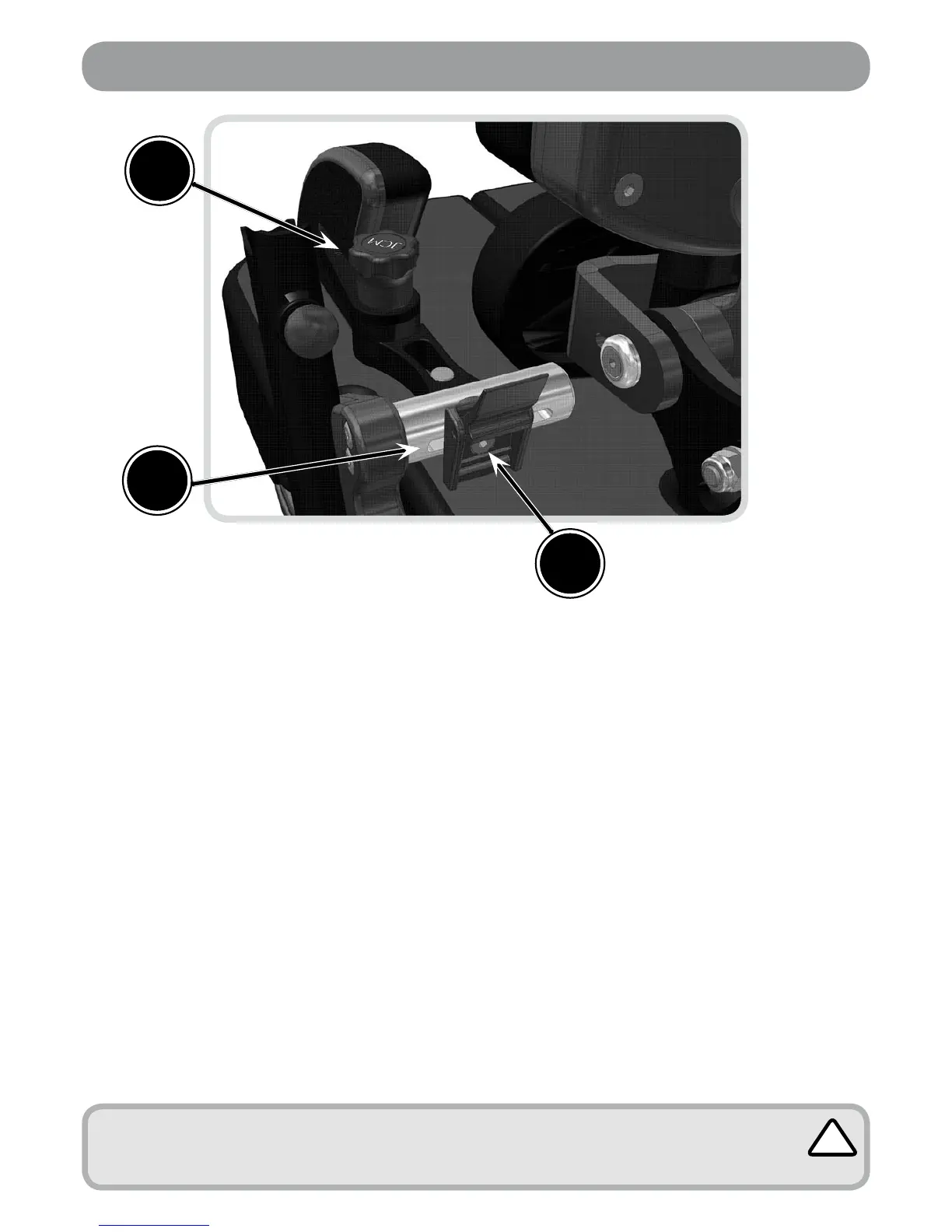

Hip Pad Adjustment
Hip Pad Width
• Loosen Locking Bolt A by one full turn using the 4mm Allen Key Provided
• The Hip Pad can now be freely moved along the width adjustment rail B.
• Set the desired position and then re-lock the fixing screw to secure the pad in place.
Hip Pad Angle (Where Fitted)
• To set the angle of the pad you should loosen the securing handwheel C by rotating a
couple of turns in an anti-clockwise motion.
• Once released the pads can be positioned by pressing down on the handwheel whilst
simultaneously altering the angle of the pad using your other hand.
• Once the desired position has been achieved you should release the handwheel and
re secure it by turning in a clockwise direction until hand tight.
B
A
C
Pad Angle – As an Alternative you can position the pad without pressing
down the handwheel, though this has potential to shorten the life of the
locking mechanism and is therefore not recommended)
!
