Adjusting Arm Height

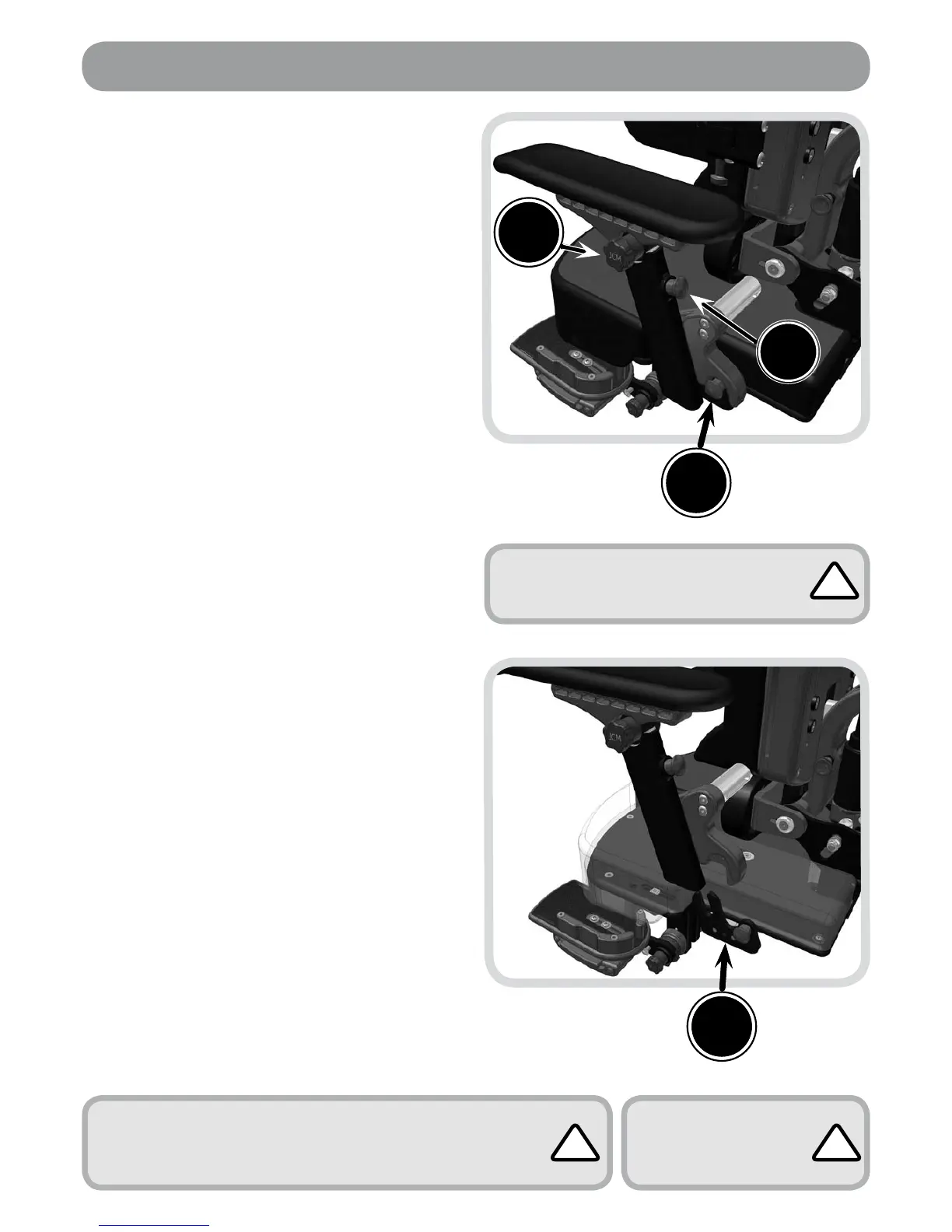

• (A) highlights the plunger which is used to
adjust the height of the arms and therefore
in turn the height of the tray.
• Pull plunger (A) outwards away from the
arm, and while holding the lever open
slide the arm up or down, selecting one
of the holes which come into view as you
raise the arm up from its lowest position.
• When a suitable position has been
acquired, lock the arm into place by
releasing the lever, ensuring it fits securely
back in place.
Adjusting Arm Angle
• To set the angle of the arm top you should
loosen the securing handwheel (B) by
rotating a couple of turns in an anti-
clockwise motion.
• Once released the arm top can be
positioned by pressing down on the
handwheel whilst simultaneously altering
the angle using your other hand.
• Once the desired position has been
achieved you should release the
handwheel and re secure it by turning in a
clockwise direction until hand tight.
Removing The Armrest
(Facilitates Side Transfer)
• To remove the arm rests entirely (complete
with the attached hip pad), pull plunger
(C) outwards and hold in the outward
position with one hand. Use your
other hand to lift the complete arm rest
assembly upwards away from the seat.
• To replace, reverse the operation, lowering
the arm rest assembly back onto the
fixation plate (D), holding open the
plunger to allow it to engage fully before
releasing the plunger to lock the arm back
into position.
Arm Rest Adjustment
D
Arm Top Angle – As an Alternative you can position the
Arm Top without pressing down the handwheel, though
this has potential to shorten the life of the locking
mechanism and is therefore not recommended)
Always ensure
that the arms are
securely fixed before
using the chair.
The plunger (A) should pull out freely,
if resistance is felt ensure no weight is
being put through the arm rest.
! !
!
A
C
B
