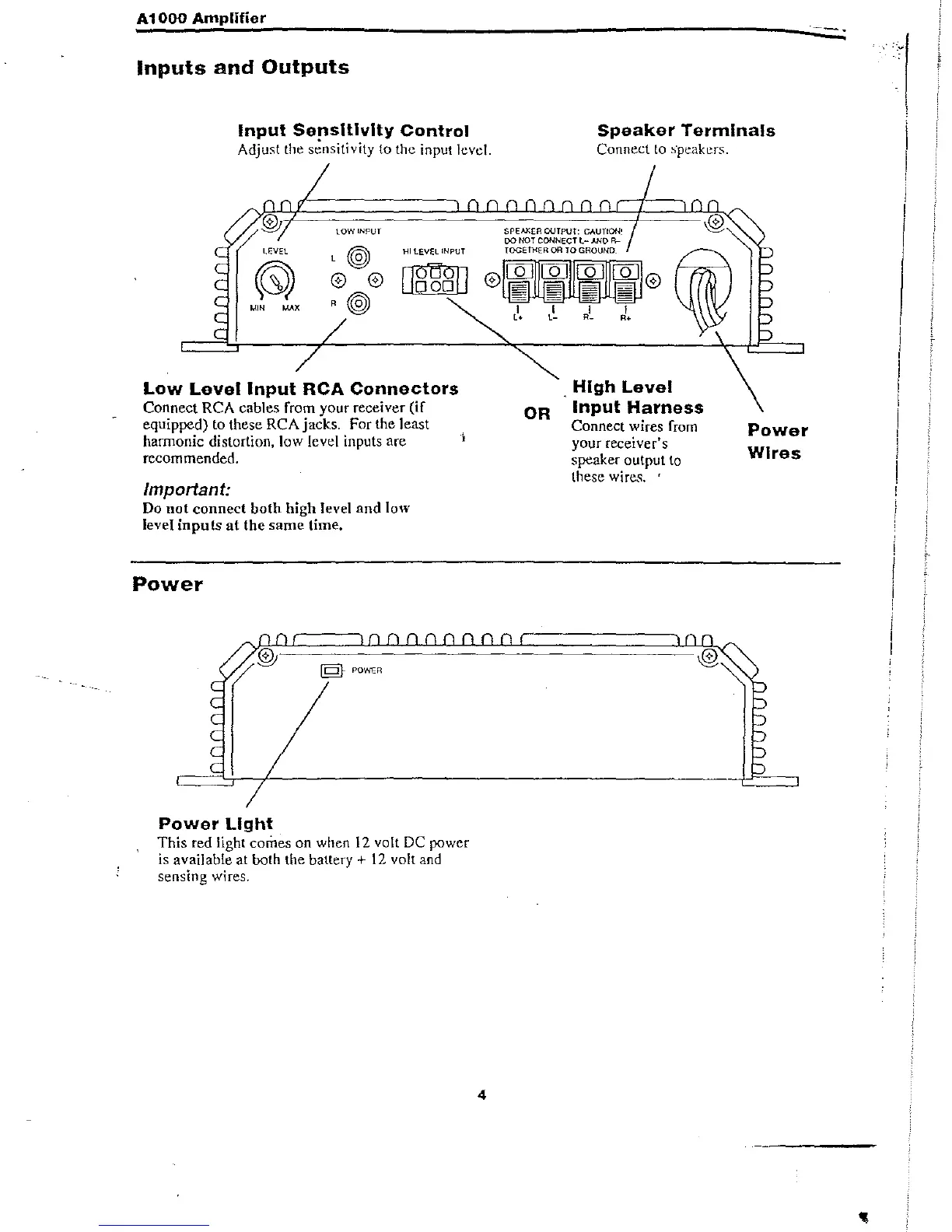

A 1000 Amplifier
Inputs and Outputs
Input Sensitivity Control
Adjust the s~nsilivity to the input level.
lOW INPUT
Speaker Terminals
Connect to ~:;peakers.
SPEAKER OUTPUT: CAUTION'
DO NOT CONNECT l- A."<O R-
HI lEVEL INPUT TOGEfilER OR TO GROUND
Low Level Input RCA Connectors
Connect RCA cables from your receiver (if
equipped) to these RCA jacks. For the least
harmonic distortion, low level inputs are
recommended.
Important:
Do not connect both high level and low
level
inputs at the same time.
Power
§- POWER
Power Light
This red light comes on when 12 volt DC power
is available at both the battery
+ 12 volt and
sensing wires.
OR
4
. High Level
Input Harness
Connect wires from
your receiver's
speaker output
to
these wire...;;. '
Power
Wires
-
I
I
I
I
I
,
