Jensen AWM970 User Manual

AWM970
15
1
23
4
56
7
89
+10
0
MENU
TUNE+
TUNE-
ENTER
VOL
VOL
T/F
PROG
LANG RPT TITLE
SOURCE
ZOOM
ANGLE
GOTO
AUD
....
14
15
16
17
18
19
20
22
21
23
24
25
26
27
1
3
5
7
8
9
10
11
12
13
6
4
2
LOUD

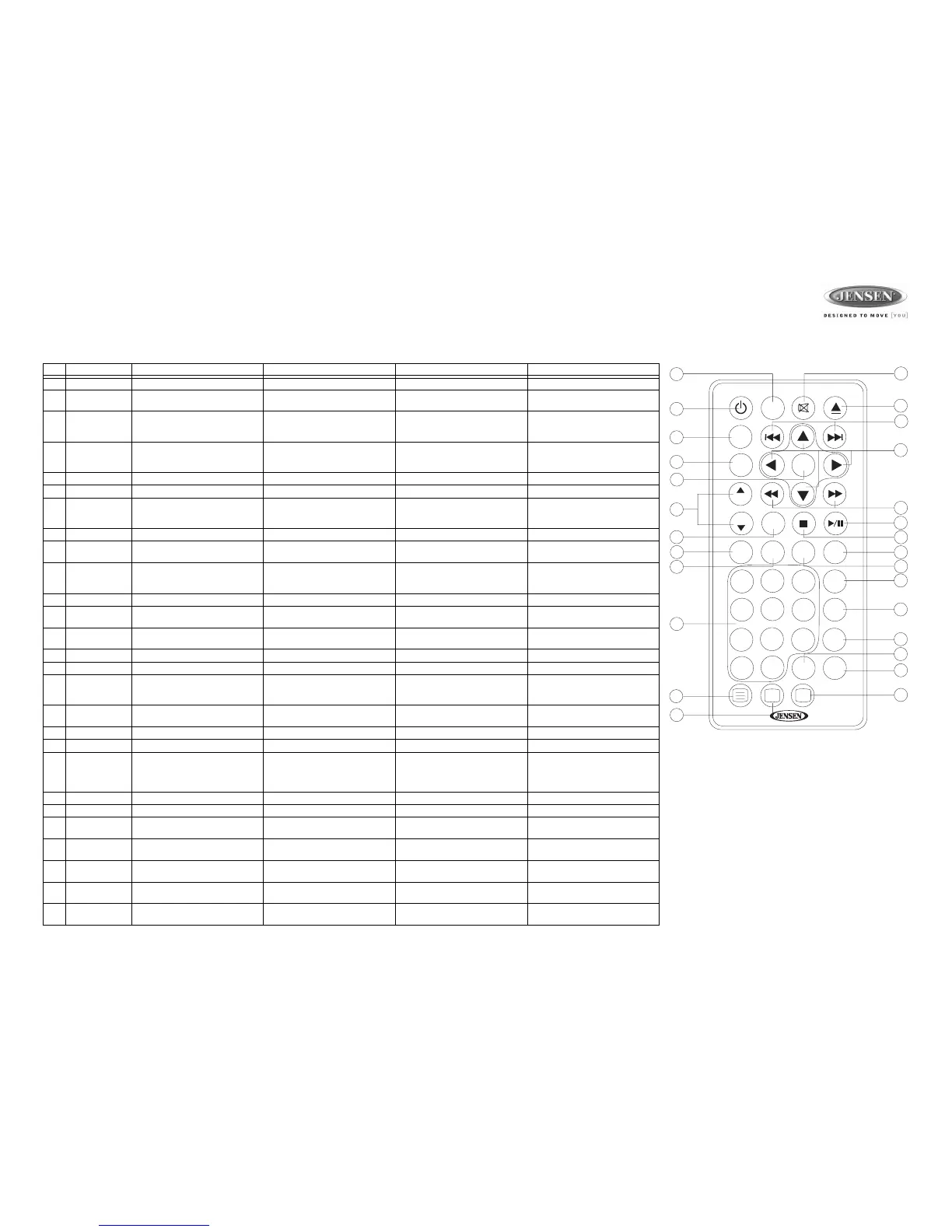

Remote Control Operation
REF DESCRIPTION TUNER CD/MP3/USB DVD iPod
1 Power Turn radio on/standy mode. Turn radio on/standby mode. Turn radio on/standby mode. Turn radio on/standby mode.
2 VOL +/- Adjust volume up/down.
Press for Audio Control Setup menu.
Adjust volume up/down.
Press for Audio Control Setup menu.
Adjust volume up/down.
Press for Audio Control Setup menu.
Adjust volume up/down.
Press for Audio Control Setup menu.
3 TUNE + Search higher station. Stopping State: UP - Search in
current folder.
Playing State: UP - Next Track.
Stopping State: UP: Next Item.
Playing State: UP: Next Track.
UP: Search current Playlist, Arist,
Album, Song list or Genre
4 TUNE - Search lower station. Stopping State: DN - Search in
current folder.
Playing State: DN - Prev Track.
Stopping State: DN: Previous Item.
Playing State: DN: Previous Track.
DN: Search current Playlist, Arist,
Album, Song list or Genre.
5ENTER Confirm menu selection.
6MENU Access main DVD menu.
7 T/F Press to toggle clock time/playing
time.
Press and hold to set clock.
Press to toggle clock time/playing
time.
Press and hold to set clock.
Press to toggle clock time/playing
time.
Press and hold to set clock.
Press to toggle clock time/playing
time.
Press and hold to set clock.
8 PROG Display Setup Program. Display Setup Program.
9LANG Select alternate audio language, if
available.
10 Numeric Keypad Use 1-6 to access preset stations. Enter track number to access track
directly. For track number > 10, use
10+ followed by second digit.
Enter track number to access track
directly. For track number > 10, use
10+ followed by second digit.
Enter track number to access track
directly. For track number > 10, use
10+ followed by second digit.
11 Setup View SETUP menu. View SETUP menu. View SETUP menu.
12 Display Display MONO/L, MONO/R, or
STEREO.
Choose subtitle language, if
available.
Display MONO/L, MONO/R, or
STEREO.
13 Mute/LOUD Silence Audio output. Press and hold
to turn LOUDNESS feature on/off.
Silence Audio output. Press and hold
to turn LOUDNESS feature on/off.
Silence Audio output. Press and hold
to turn LOUDNESS feature on/off.
Silence Audio output. Press and hold
to turn LOUDNESS feature on/off.
14 Eject Eject Disc. Eject Disc. Eject Disc. Eject Disc.
15 Previous/Next Select next/previous track. Select next/previous chapter. Select next/previous file.
16 Directional
Buttons
Move to desired menu item and then
press ENTER to confirm.
Use with DVD menu to move to
desired menu item and then press
ENTER to confirm.
Move to desired menu item and then
press ENTER to confirm.
17 Fast Reverse/
Forward
Fast Forward 2X, 4X, 8X, 20X.
Fast Reverse 2X, 4X, 8X, 20X.
Fast Forward 2X, 4X, 8X, 20X.
Fast Reverse 2X, 4X, 8X, 20X.
Fast Forward 2X, 4X, 8X, 20X.
Fast Reverse 2X, 4X, 8X, 20X.
18 Play/Pause Pause/resume playback. Pause/resume playback. Pause/resume playback.
19 Stop Stop playback. Stop playback. Stop playback.
20 TITLE Press to view title menu, then use
directional arrows and play button
play selected title. May not be
supported by all discs.
21 RPT Repeat track. Repeat chapter. Repeat file.
22 SOURCE Select source for playback. Select source for playback. Select source for playback. Select source for playback.
23 ZOOM Zoom picture or press repeatedly to
change magnification level.
24 ANGLE Select alternate viewing angle, if
available.
25 AUD Display MONO/L, MONO/R, or
STEREO.
Display MONO/L, MONO/R, or
STEREO.
Access Audio Menu options. Display MONO/L, MONO/R, or
STEREO.
26 GOTO Select exact time, track or chapter
for playback.
Select exact time, track or chapter
for playback.
Select exact time, track or chapter
for playback.
27 Display Display current playback information
on the screen.
Display current playback information
on the screen.
Search folder.

Jensen AWM970 Specifications

Power

power supply requirements	DC 12 Volts, Negative Ground
operating voltage	10-16VDC

FM Tuner

tuning range	87.5-107.9FM
sensitivity	<2.5uV
stereo separation at 1 kHz	>30dB

AM Tuner

tuning range	530-1710
sensitivity	<15uV

Amplifier

output power	108 Watts Total (18 Watts per Channel)
output impedance	Compatible with 4-8 Ohm Speakers, 4 Ohm Load Minimum

DVD

frequency response	20-20, 000 Hz
channel separation	50dB
signal-to-noise ratio	70dB
distortion	0.2%

Weight and Dimensions

overall dimensions	265mm(W)x178mm(H)x159mm(D)
mounting dimensions	235mm(W)x154mm(H)x133mm(D)
weight	5.5 lbs
