Jensen AWM970 User Manual

AWM970
17
VIDEO SETUP
BRIGHTNESS
CONTRAST
HUE
SATURATION
SHARPNESS
12
10
8
6
4
2
0
DIGITAL SETUP
OP MODE
DYNAMIC RANGE
DUAL MONO
LINE OUT
RF REMOD
Setup Menu (continued)

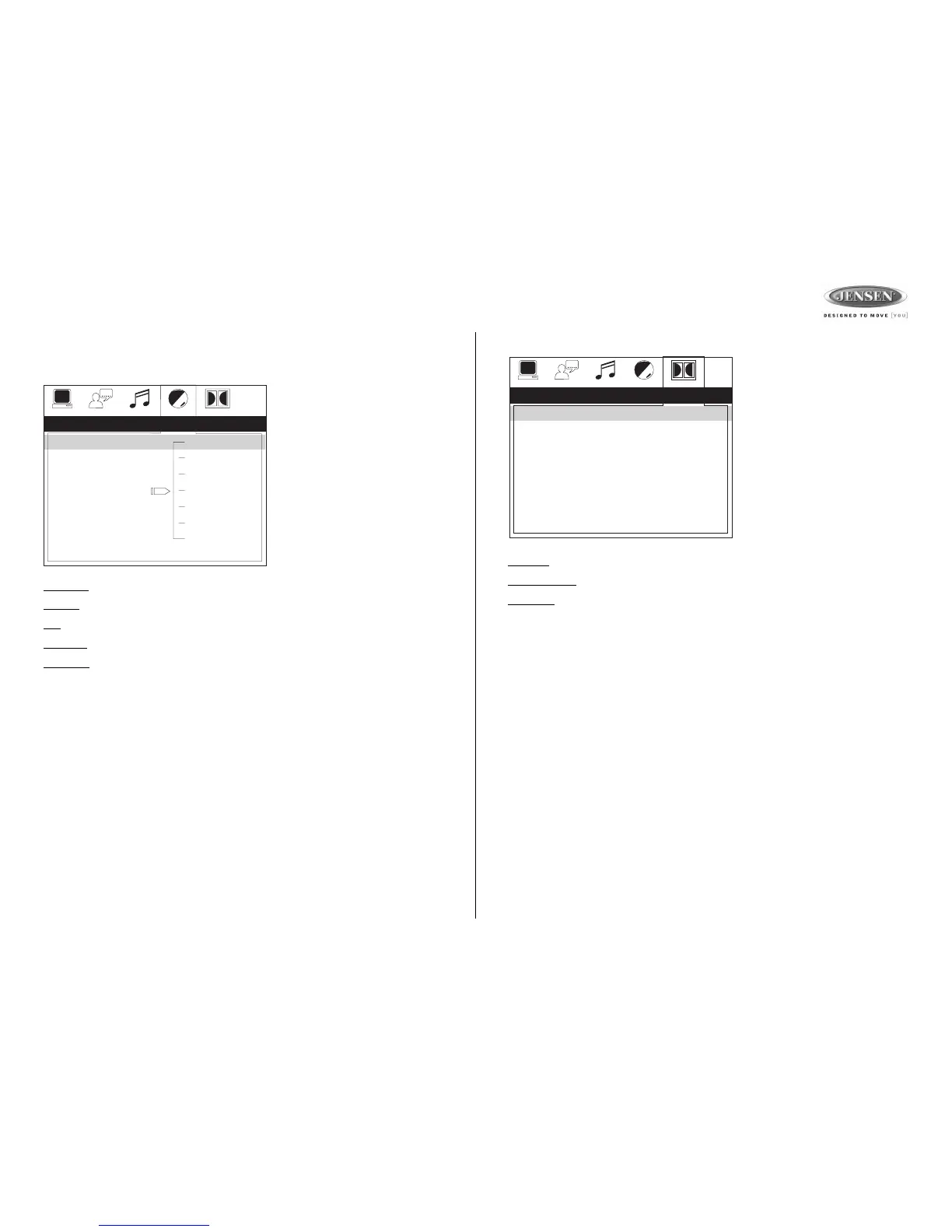

Video Setup
The Video Setup menu controls the
following features:
Brightness
: Adjust the brightness of the screen from the following levels:
Contrast
: Adjust the contrast of the screen from the following levels: 12, 10, 8, 6, 4, 2 or 0.
Hue
: Adjust the hue of the screen from the following levels: +6, +4, +2, 0, -2,- 4 or - 6.
Saturation: Adjust the saturation of the screen from the following levels: 12, 10, 8, 6, 4, 2 or 0.
Sharpness
: Adjust the sharpness of the screen from the following levels: 8, 6, 4, 2 or 0.
Digital Setup
The Digital Setup menu controls the
following features:
OP Mode
: Select LINE OUT or RF REMOD.
Dynamic Range
: Select FULL, 6/8, 4/8, 2/8 or OFF.
Dual Mono: Select STEREO, MONO/L, MONO/R or MIX MONO.

Jensen AWM970 Specifications

Power

power supply requirements	DC 12 Volts, Negative Ground
operating voltage	10-16VDC

FM Tuner

tuning range	87.5-107.9FM
sensitivity	<2.5uV
stereo separation at 1 kHz	>30dB

AM Tuner

tuning range	530-1710
sensitivity	<15uV

Amplifier

output power	108 Watts Total (18 Watts per Channel)
output impedance	Compatible with 4-8 Ohm Speakers, 4 Ohm Load Minimum

DVD

frequency response	20-20, 000 Hz
channel separation	50dB
signal-to-noise ratio	70dB
distortion	0.2%

Weight and Dimensions

overall dimensions	265mm(W)x178mm(H)x159mm(D)
mounting dimensions	235mm(W)x154mm(H)x133mm(D)
weight	5.5 lbs
