AWM970
4
Wiring

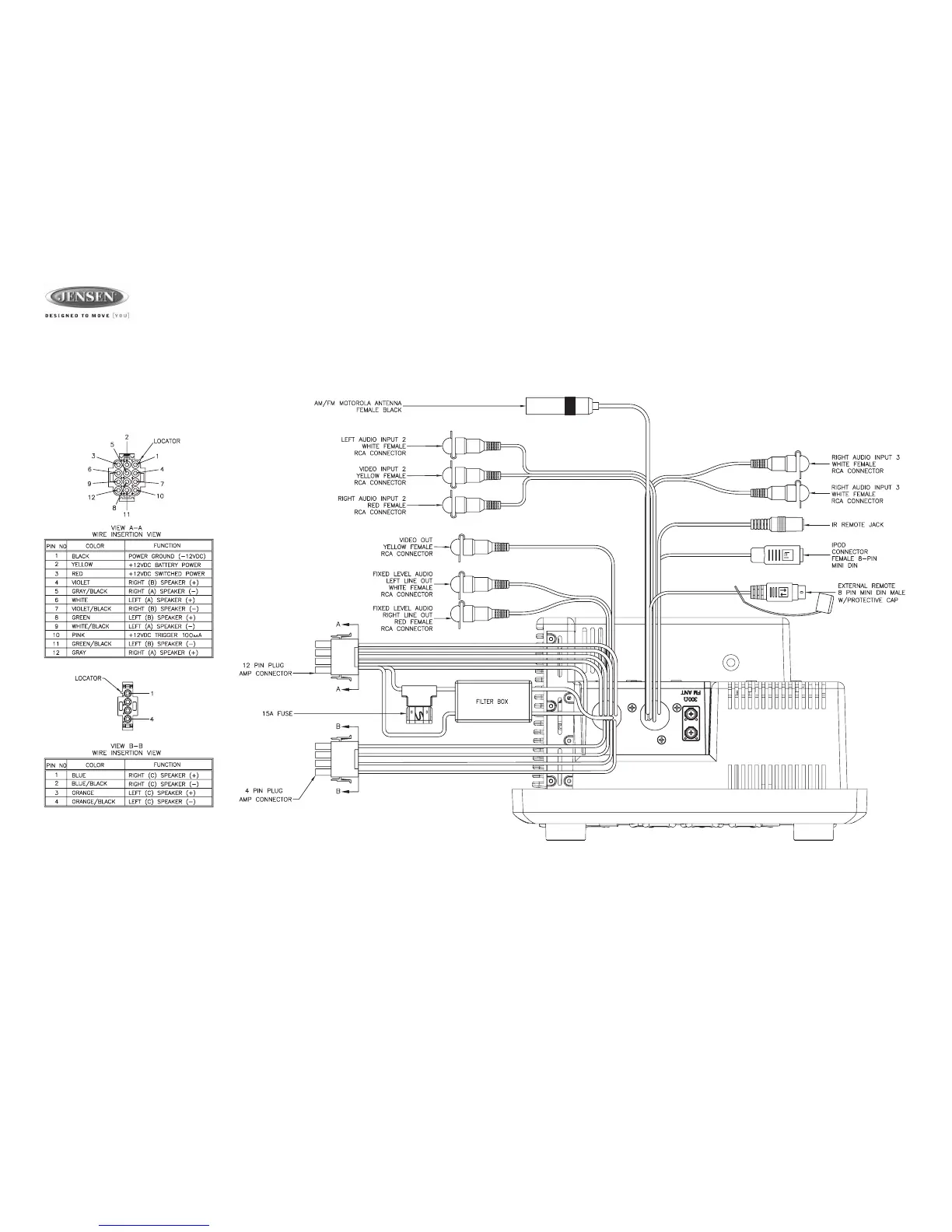

The wiring diagram depicts all the wiring connections required for proper operation of the unit.

Table of Contents

Other manuals for Jensen AWM970

Preview: Quick Reference Guide
Quick Reference Guide2 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Jensen AWM970 and is the answer not in the manual?

Jensen AWM970 Specifications

Power IconPower
power supply requirementsDC 12 Volts, Negative Ground
operating voltage10-16VDC
FM Tuner IconFM Tuner
tuning range87.5-107.9FM
sensitivity<2.5uV
stereo separation at 1 kHz>30dB
AM Tuner IconAM Tuner
tuning range530-1710
sensitivity<15uV
Amplifier IconAmplifier
output power108 Watts Total (18 Watts per Channel)
output impedanceCompatible with 4-8 Ohm Speakers, 4 Ohm Load Minimum
DVD IconDVD
frequency response20-20, 000 Hz
channel separation50dB
signal-to-noise ratio70dB
distortion0.2%
Weight and Dimensions IconWeight and Dimensions
overall dimensions265mm(W)x178mm(H)x159mm(D)
mounting dimensions235mm(W)x154mm(H)x133mm(D)
weight5.5 lbs
