Installation
It’s a good idea to read all of the instructions before beginning the installation. We recommend
having your JENSEN AWM970 installed by a reputable installation shop.
Selecting the Mounting Location
Select a mounting location, taking care to avoid the following:
• Places exposed to heat-radiating appliances such as electric heaters
• Adjacent to other equipment that radiates heat
• Poorly-ventilated or dusty places
• Moist or humid locations
Preparing the Opening

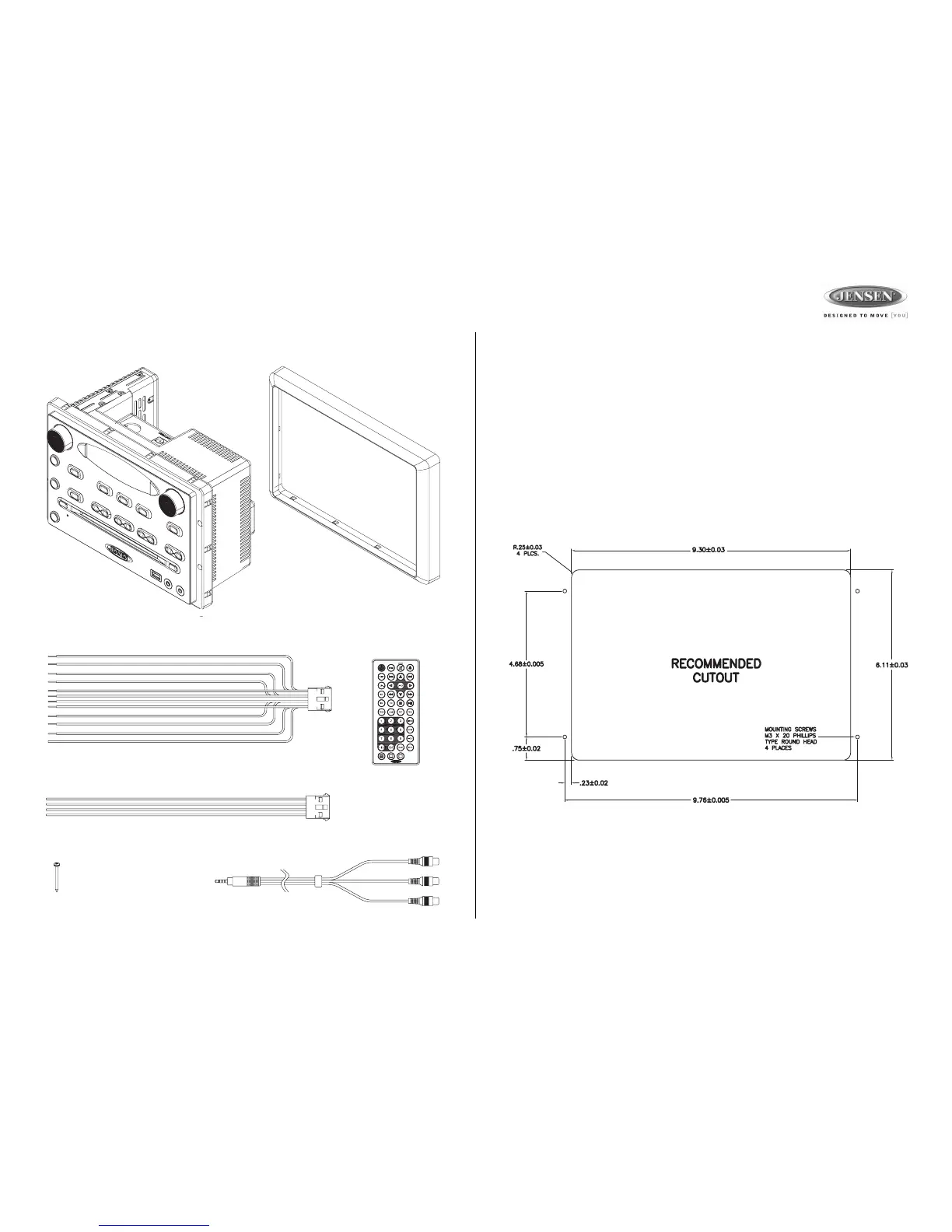

Use the mounting hole diagram (below) to measure and cut a mounting hole, and mount the
unit using the four M3x20mm screws provided.
NOTE: Before cutting the mounting hole, make sure the area behind the mounting
location is clear of wires, fuel and vacuum or brake lines.
Mounting the Radio
Route power, speaker and antenna cables through the hole, and connect them to the unit as
outlined in the wiring diagram. After ensuring correct connections, test operation.
Packing List
AWM970
TRIM RING
REMOTE CONTROL
WITH BATTERY
12-PIN POWER/A-B SPEAKER MATING PIGTAIL
4-PIN C SPEAKER MATING PIGTAIL
M3 x 20MM SCREW (x 4)
AUX AUDIO /VIDEO CABLE

Jensen AWM970 Specifications

Power

power supply requirements	DC 12 Volts, Negative Ground
operating voltage	10-16VDC

FM Tuner

tuning range	87.5-107.9FM
sensitivity	<2.5uV
stereo separation at 1 kHz	>30dB

AM Tuner

tuning range	530-1710
sensitivity	<15uV

Amplifier

output power	108 Watts Total (18 Watts per Channel)
output impedance	Compatible with 4-8 Ohm Speakers, 4 Ohm Load Minimum

DVD

frequency response	20-20, 000 Hz
channel separation	50dB
signal-to-noise ratio	70dB
distortion	0.2%

Weight and Dimensions

overall dimensions	265mm(W)x178mm(H)x159mm(D)
mounting dimensions	235mm(W)x154mm(H)x133mm(D)
weight	5.5 lbs
