E-6
1. TELESCOPIC ANTENNA 13. POWER INDICATOR
2. CD DOOR 14. LED DISPLAY
3. TUNING CONTROL 15. PLAY/PAUSE INDICATOR
4. SKIP
+
BUTTON
16. REPEAT INDICATOR
5. SKIP
-
BUTTON
17. PROGRAM (PROG) INDICATOR
6. STOP BUTTON 18. RIGHT SPEAKER
7. PLAY/PAUSE BUTTON 19. LEFT SPEAKER

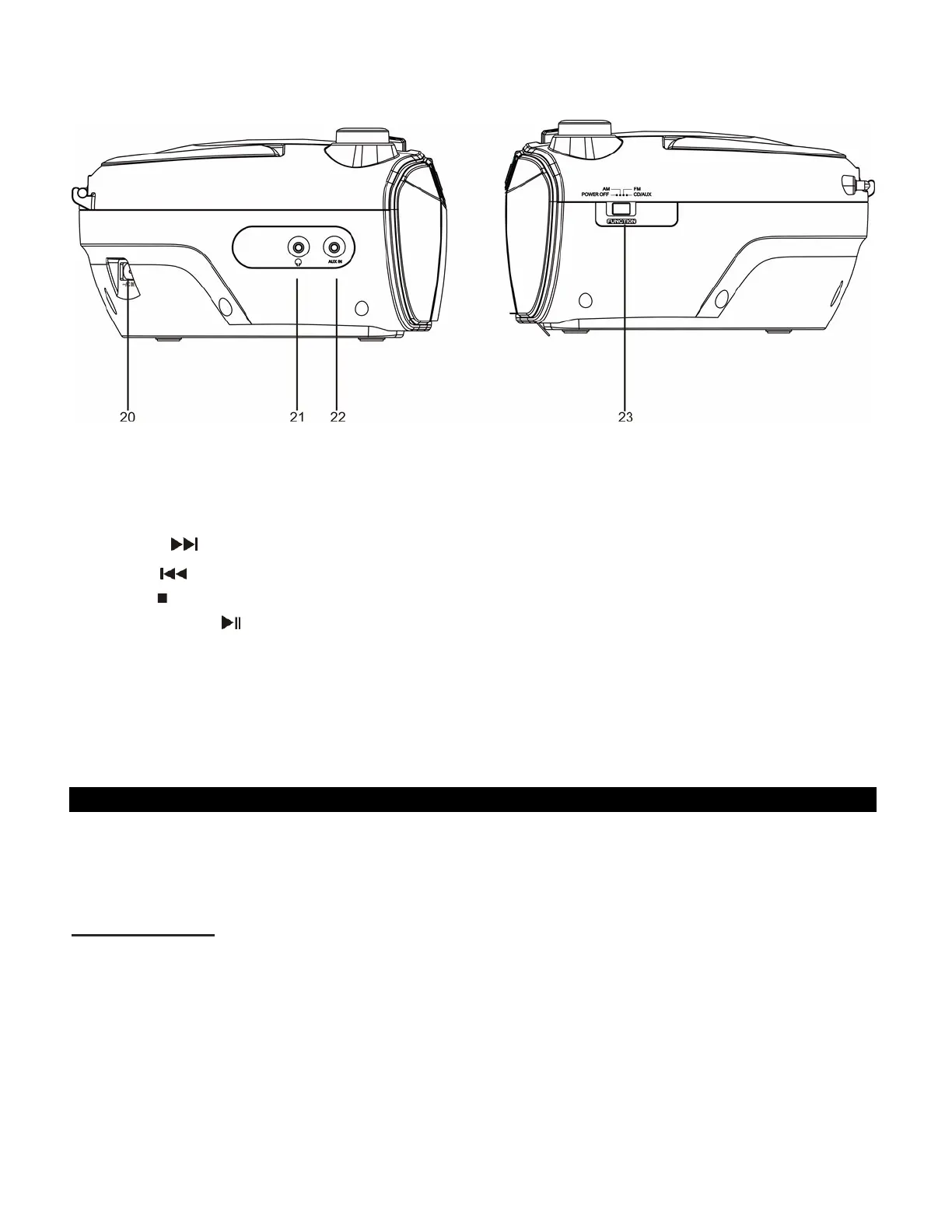

8. PROGRAM (PROG) BUTTON 20. AC POWER JACK
9. REPEAT BUTTON 21. HEADPHONE JACK
10. VOLUME CONTROL 22. AUX-IN JACK
11. CARRYING HANDLE
12. FM STEREO INDICATOR
SELECTOR
(POWER OFF - AM - FM – CD/AUX)
POWER SOURCES
This unit operates on 120V~ 60Hz or 6 x DC1.5V "C" (UM-2) batteries. Do not attempt to operate
the unit on any other power source. You could cause damage to the unit and void your warranty.
Please be sure the power outlet you plug this unit into is working and receives constant
(unswitched) power.
AC OPERATION
Plug the detachable AC cord into a standard AC outlet (120V~60Hz).
1. When the AC power cord (included) is connected to the AC POWER JACK (#20) on the
back of the unit and the other end is plugged into a 120V AC~ 60Hz wall outlet, the unit will
disconnect the batteries automatically, and operate on AC Power only.
2. Slide the FUNCTION SELECTOR (#23) to "CD/AUX" position for CD/AUX play, "FM" for FM
radio, "AM" for AM radio and "POWER OFF" for unit power off.
WARNING:
• Before connecting to the power outlet, ensure that the outlet corresponds to the information
on the rating label at the bottom of the apparatus.
