Jensen JHD910 User Manual

JHD910
3
M4 Machine
Screws (4)
Self-Tapping
Screws (3)
Machine Screws
with Nuts (3)
JENSEN
HEAVY DUTY
JENSEN
MUTE
DISP
AM/FM
AUX
WB
TIMER
AM/FM/WB RECEIVER JHD910
AUDIO
MENU
VOL+
VOL-
TUN TUN
+
1
234
5
6
SEEK
SEEK
+
A
U
X
I
N
JHD910 Radio
Wiring Harness
Radio
Mounting Bracket
Headphone
Mounting Bracket
Self-Tapping
Screws (2)
Machine Screws
with Nuts (2)
Auxiliary Input
Patch Cord
Owner’s Manual
Washers

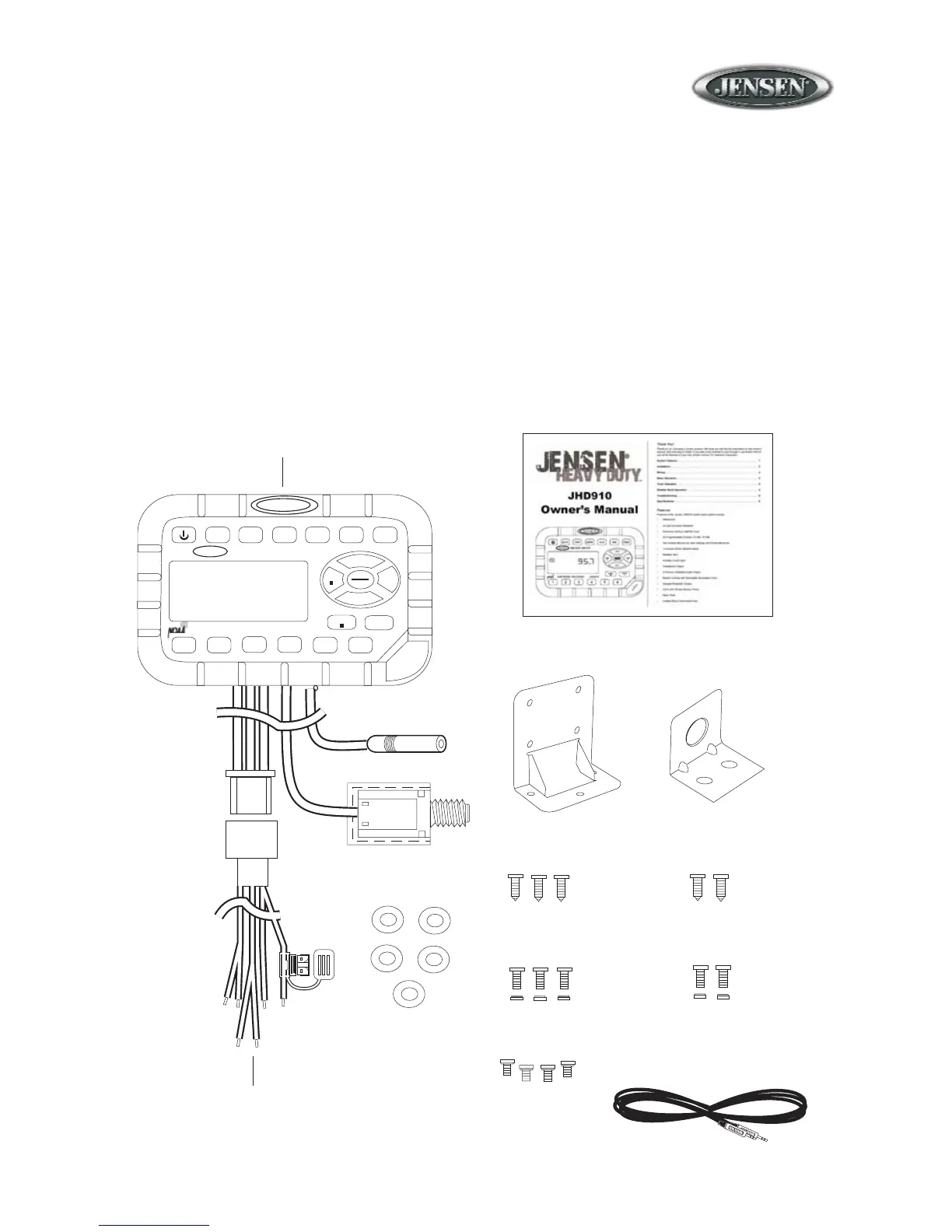

Package Contents
• JHD910 Radio
• Radio Mounting Bracket
• Headphone Mounting Bracket
• Five (5) 10-16 x 3/4” Stainless Steel PPH Screws
• Five (5) 10-32 x 5/8” Stainless Steel PPH Screws
• Five (5) 10-32 Stainless Steel Hex Nuts
• Five (5) #10 Stainless Steel Washers
• Four (4) M4 x .7 x 8MM Stainless Steel Hex Screws with Captivated Washers
• Wiring Harness
• Auxiliary Input Patch Cord
• Owner’s Manual

Jensen JHD910 Specifications

General

power supply requirements	DC 12 Volts, Negative Ground
chassis dimensions	131.6 (W) x 47.5 (D) x 86 (H)
loading impedance	4 - 8 ohms per channel

Tone Controls

bass control	±10 dB at 100 Hz
treble control	±10 dB at 10 kHz
current drain	1.5 Ampere (max)

FM Tuner

tuning range	87.5-108.0 MHz
FM mono sensitivity	1.5uV
stereo separation at 1 kHz	>25dB

AM Tuner

tuning range	522-1710 kHz
sensitivity	<30uV
weather band sensitivity	<1uV

Amplifier

total system power	15 Watts Maximum
signal to noise ratio	>70dB
loading impedance	4 - 8 ohms per channel
