JHD910
6
Antenna Connector
(Black Wire)
Heat Shrink Tubing
Black Wire
PCB
9-Pin Connector
(Male)
3A FUSE
1/4”HEADPHONE OUTPUT
RUBBER CA
P
NUT
WASHER
Left Speaker +
(White)
Left Speaker -
(White/Black)
Right Speaker +
(Gray)
Right Speaker -
(Gray/Black)
Ground
(Black)
Accessory
(Red)
Note: Do not connect the red wire to a
constant power connection. It should be
connected to a vehicle connection with
switched power, such as IGN or ACC.
VEHICLE PANEL
OR HEADPHONE
MOUNTING BRACKET

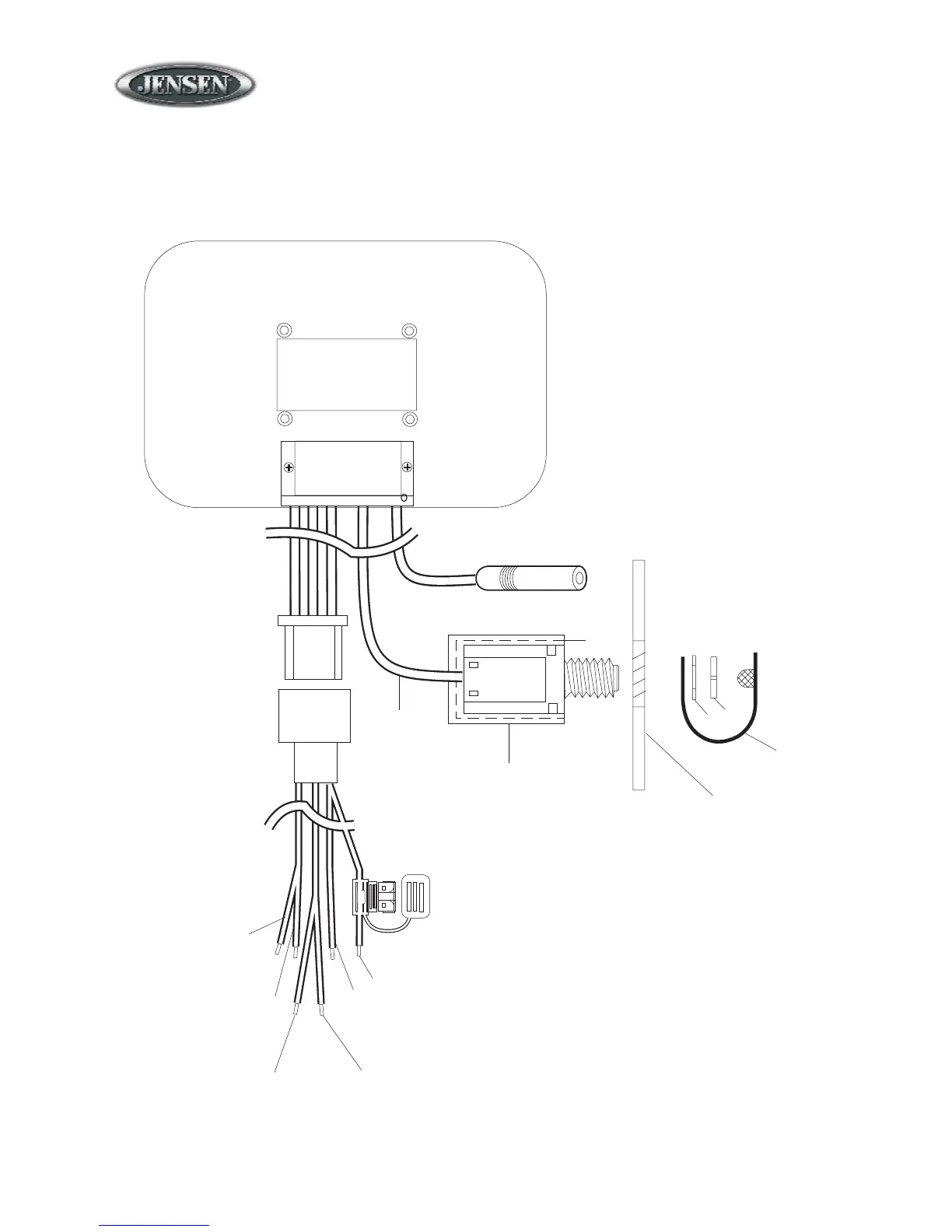

Wiring
The wiring diagram depicts all the wiring connections required for proper operation of the unit.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Jensen JHD910 and is the answer not in the manual?

Jensen JHD910 Specifications

General IconGeneral
power supply requirementsDC 12 Volts, Negative Ground
chassis dimensions131.6 (W) x 47.5 (D) x 86 (H)
loading impedance4 - 8 ohms per channel
Tone Controls IconTone Controls
bass control±10 dB at 100 Hz
treble control±10 dB at 10 kHz
current drain1.5 Ampere (max)
FM Tuner IconFM Tuner
tuning range87.5-108.0 MHz
FM mono sensitivity1.5uV
stereo separation at 1 kHz>25dB
AM Tuner IconAM Tuner
tuning range522-1710 kHz
sensitivity<30uV
weather band sensitivity<1uV
Amplifier IconAmplifier
total system power15 Watts Maximum
signal to noise ratio>70dB
loading impedance4 - 8 ohms per channel
