7
VX3012

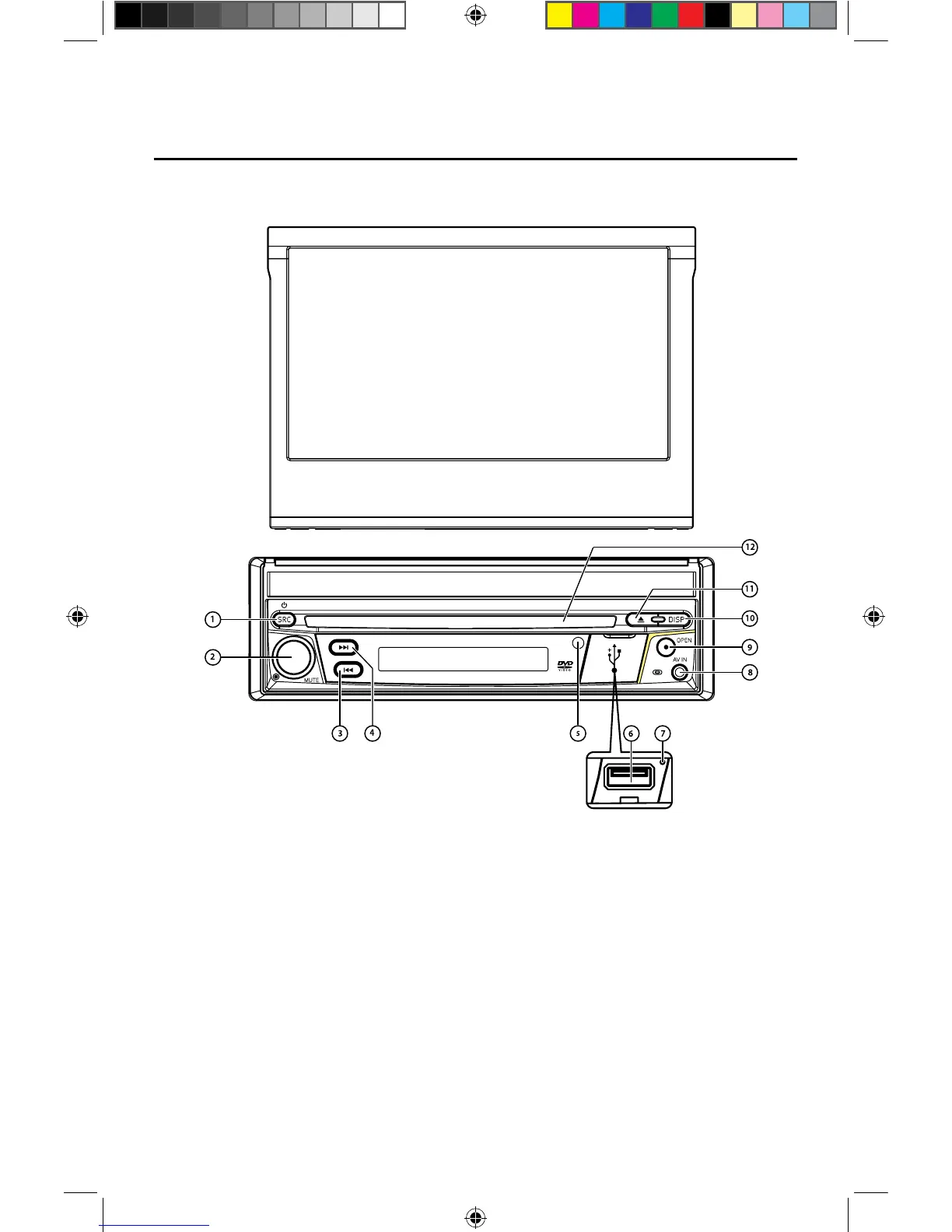

Figure 1. VX3012 Controls and Indicators
FRONT PANEL CONTROLS AND INDICATORS
Notice:
The graphic in this manual is for reference only, and may be different
from the actual unit. Reference to actual unit is suggested.
